Oil Pressure Switch Replacement

  1. Disconnect the oil pressure switch connector, then remove the oil pressure switch.

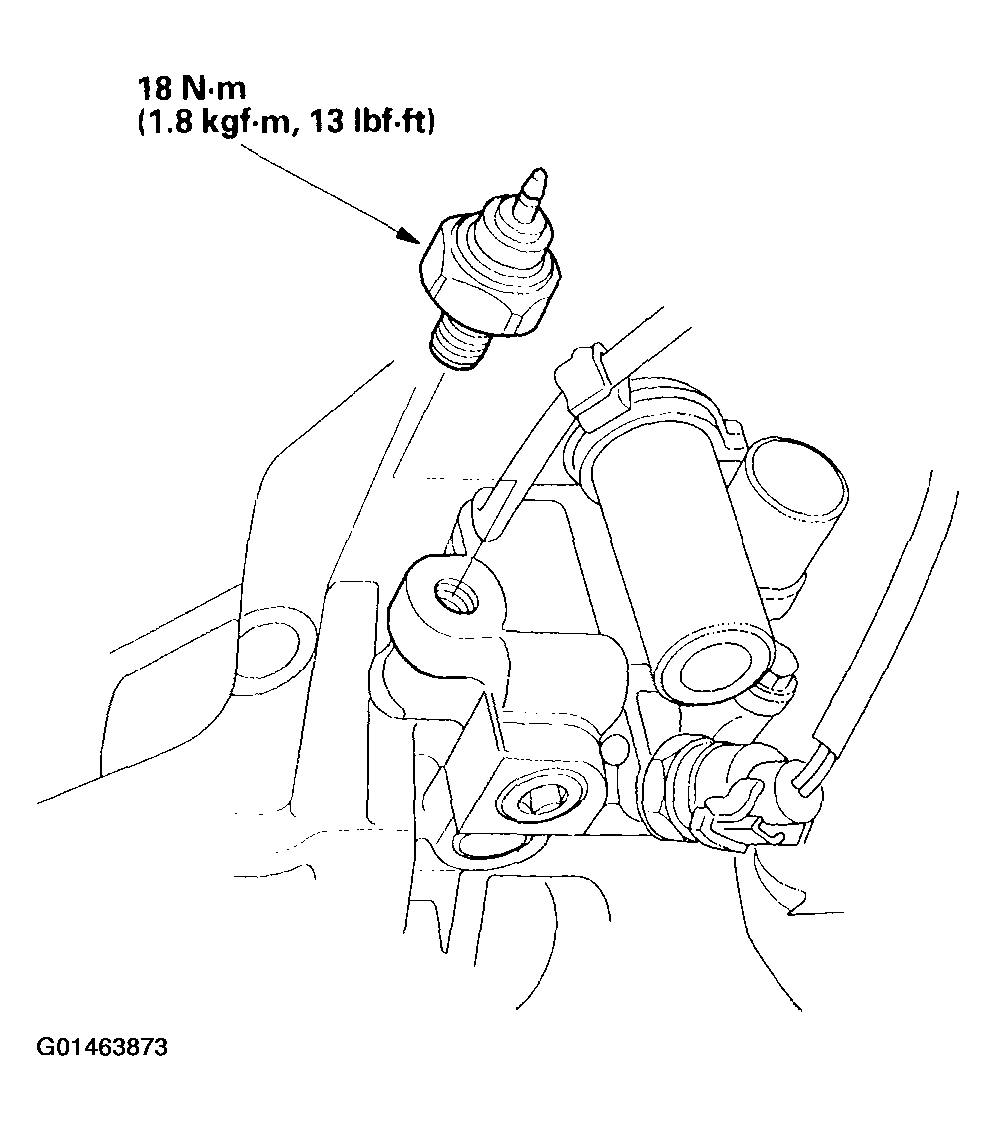

    Fig 1: Removing The Oil Pressure Switch
    G01463873Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove any old liquid gasket from the switch and switch mounting hole.
  3. Apply liquid gasket to the new oil pressure switch, then install the oil pressure switch.
    NOTE: Do not install the part if 4 minutes or more have elapsed since applying liquid gasket. Instead, reapply liquid gasket after removing the old residue.
