Console Accessory Power Socket Sub-harness

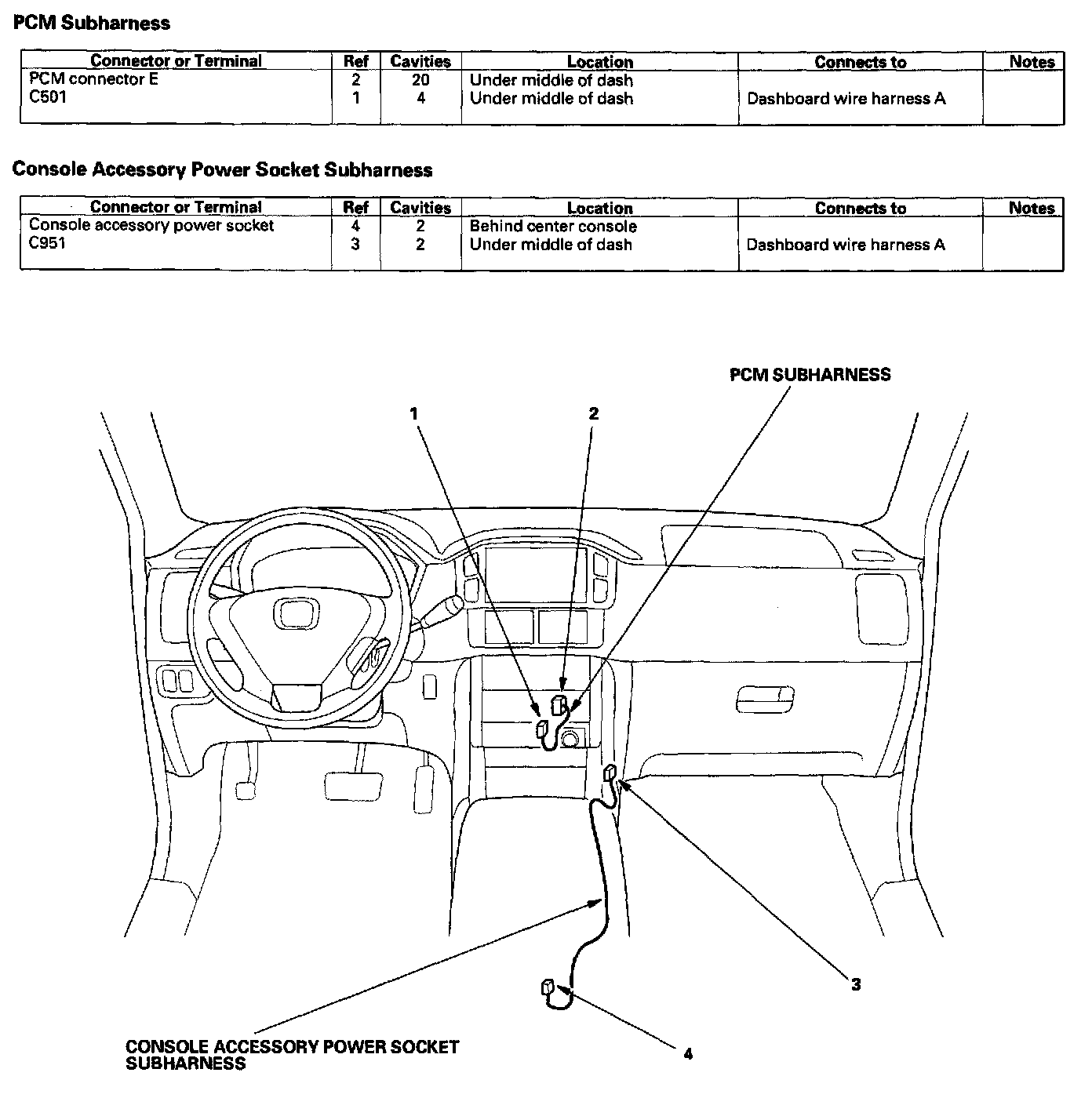

PCM Sub-harness/ Console Accessory Power Socket Sub-harness:



PCM Subharness/Console Accessory Power Socket Subharness:
