Under-Hood Fuse/Relay Box

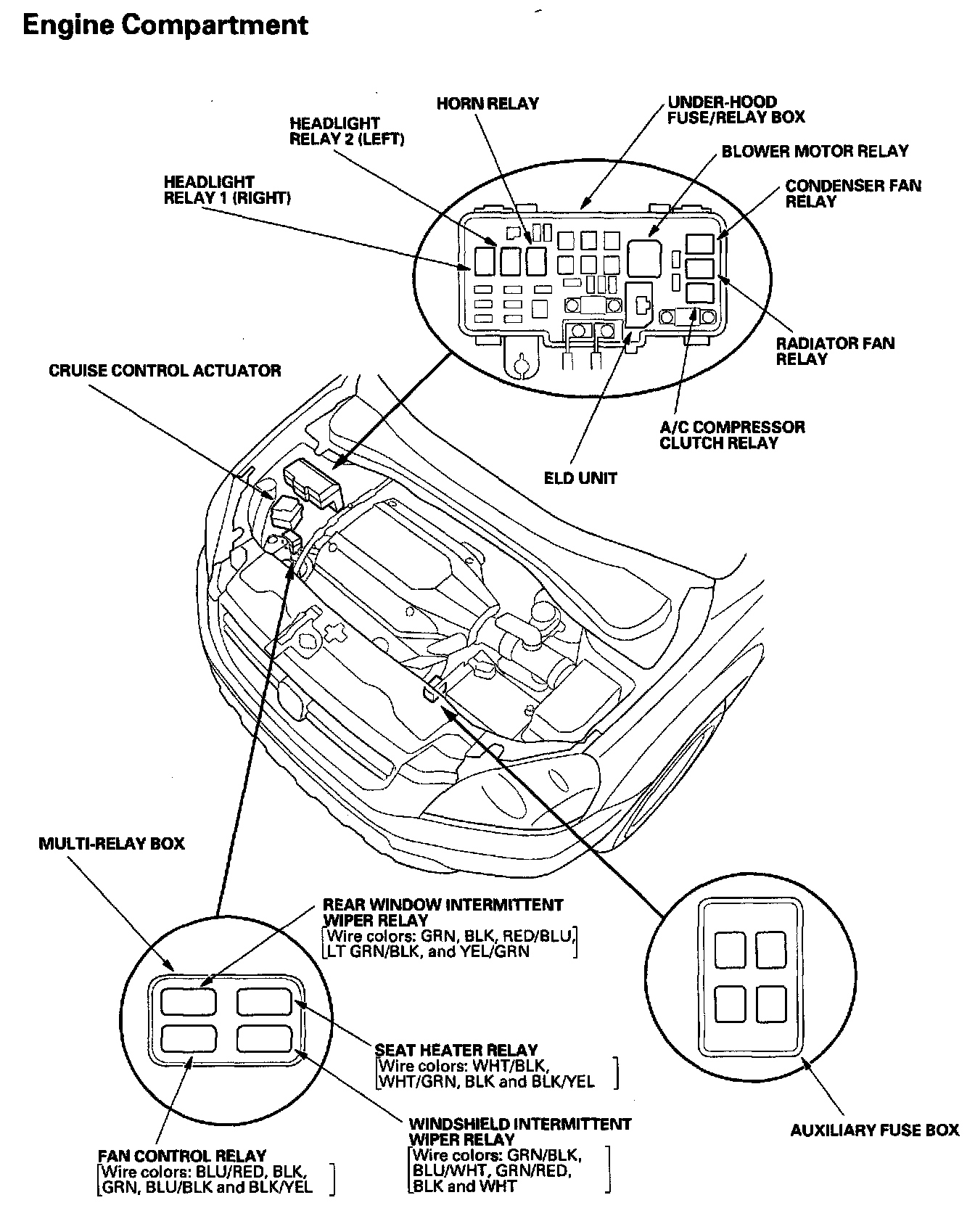

Relay And Control Unit Locations - Engine Compartment:



4. Right Side of Engine Compartment:
