Driver's Under-Dash Fuse/Relay Box

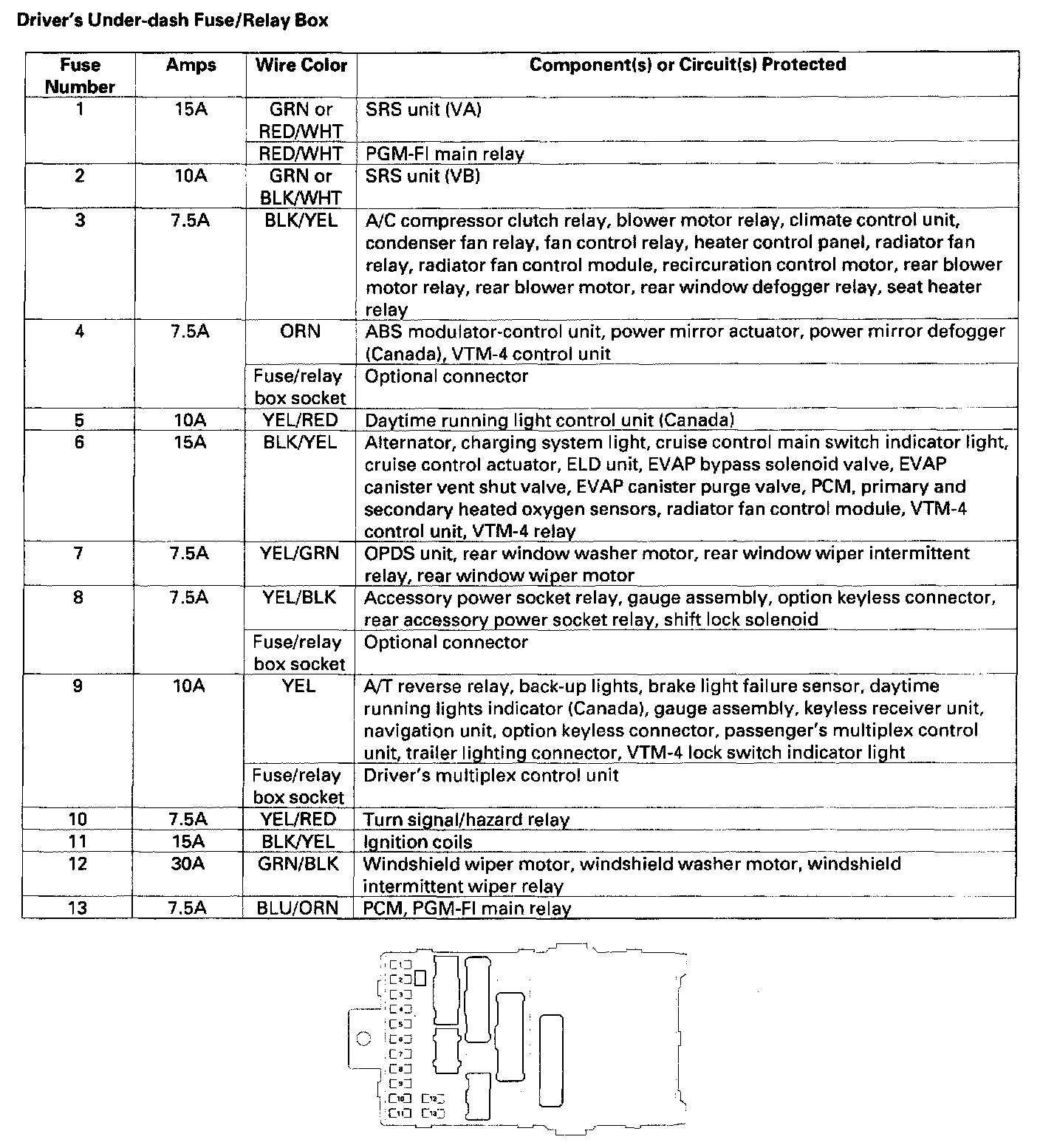

Driver's Under-dash Fuse/Relay Box:



Relay And Control Unit Locations - Dashboard:



Driver's Under-Dash Fuse/Relay Box:

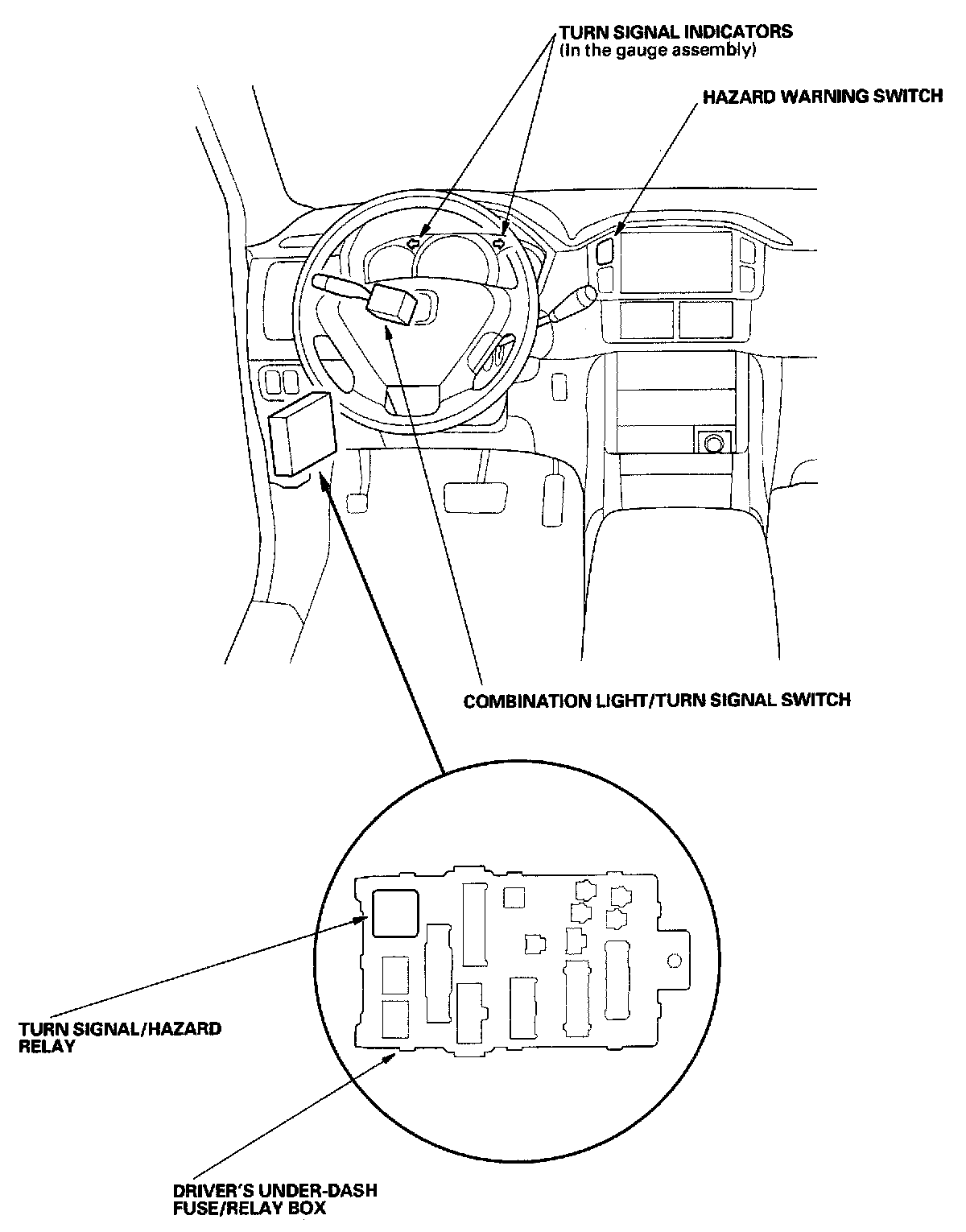

Turn Signal/Hazard Flasher Component Location Index:
