Power Window Switch: Testing and Inspection

Passenger's Window Switch Test/Replacement

1. Carefully pry off the door switch trim.

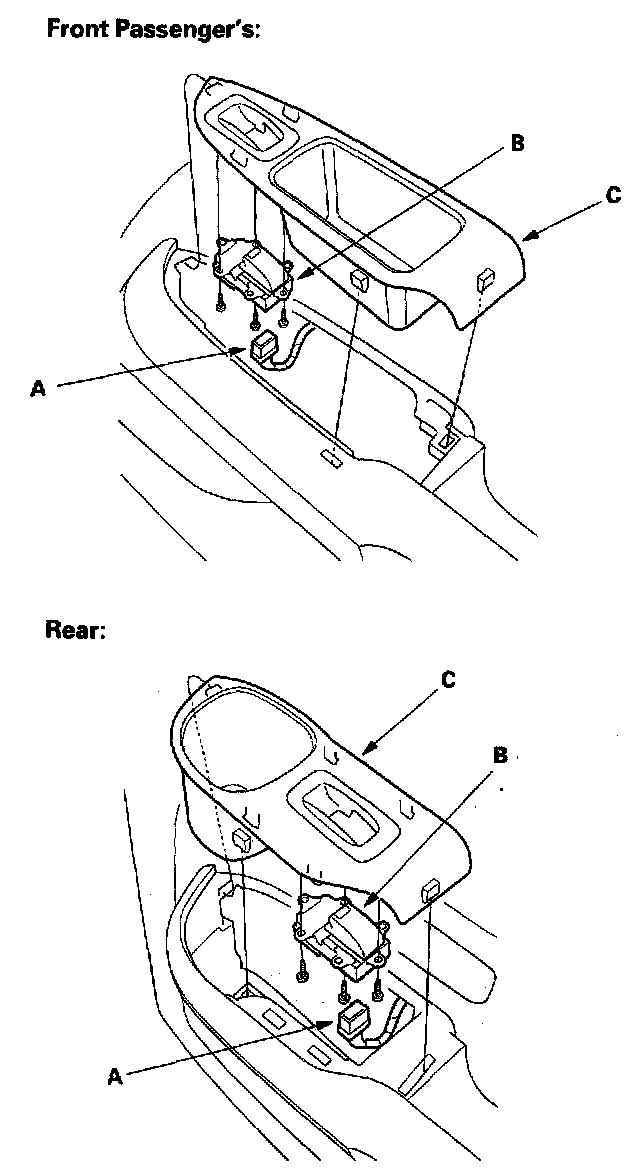

2. Disconnect the 6P connector (A) from the power window switch (B), then remove the three mounting screws and the power window switch from the switch trim (C).
3. Swap the window switch with another known-good switch and test. If the original window switch is faulty, replace it.
