Alarm Module: Locations

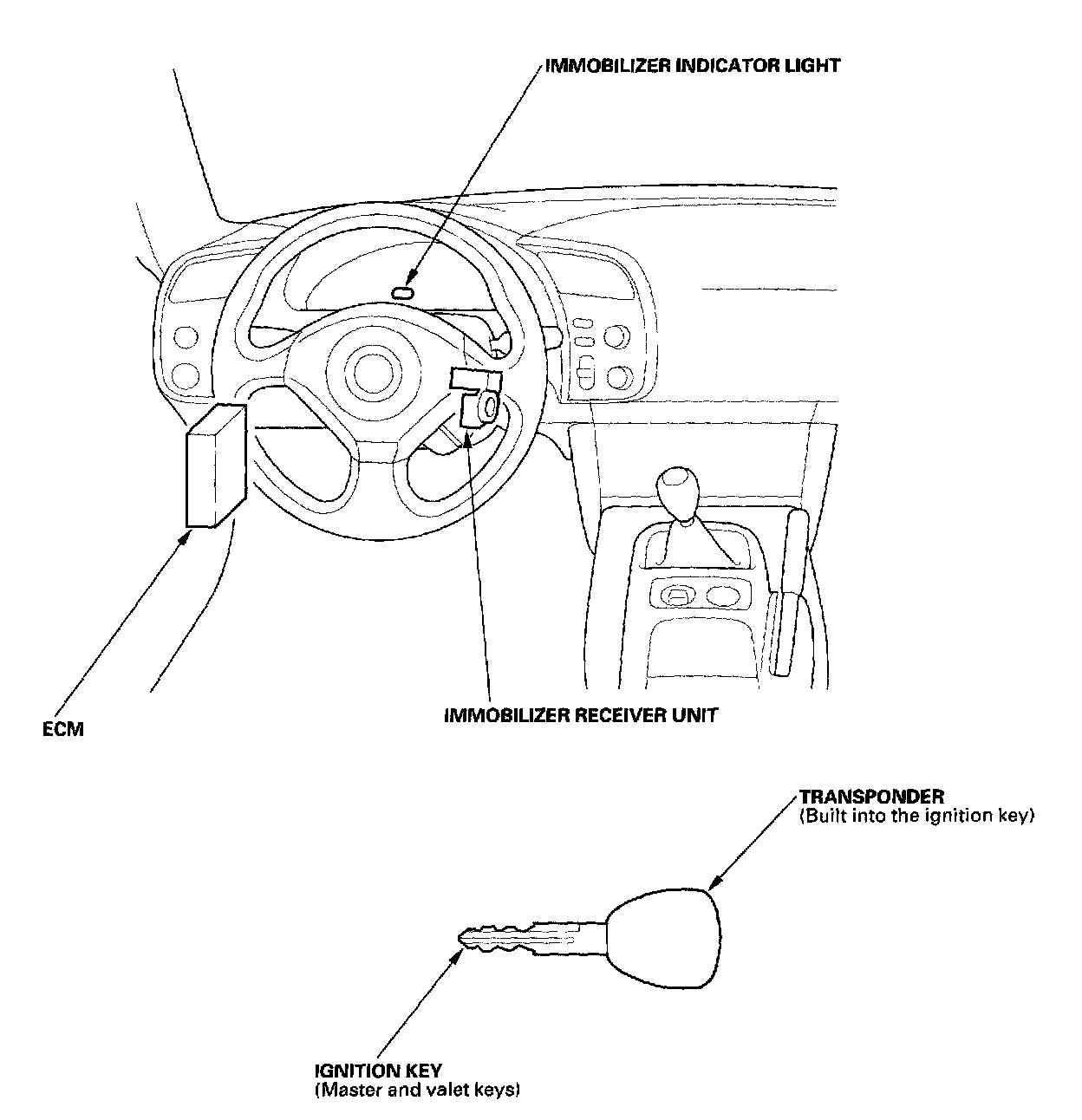

Immobilizer System - Component Location Index:

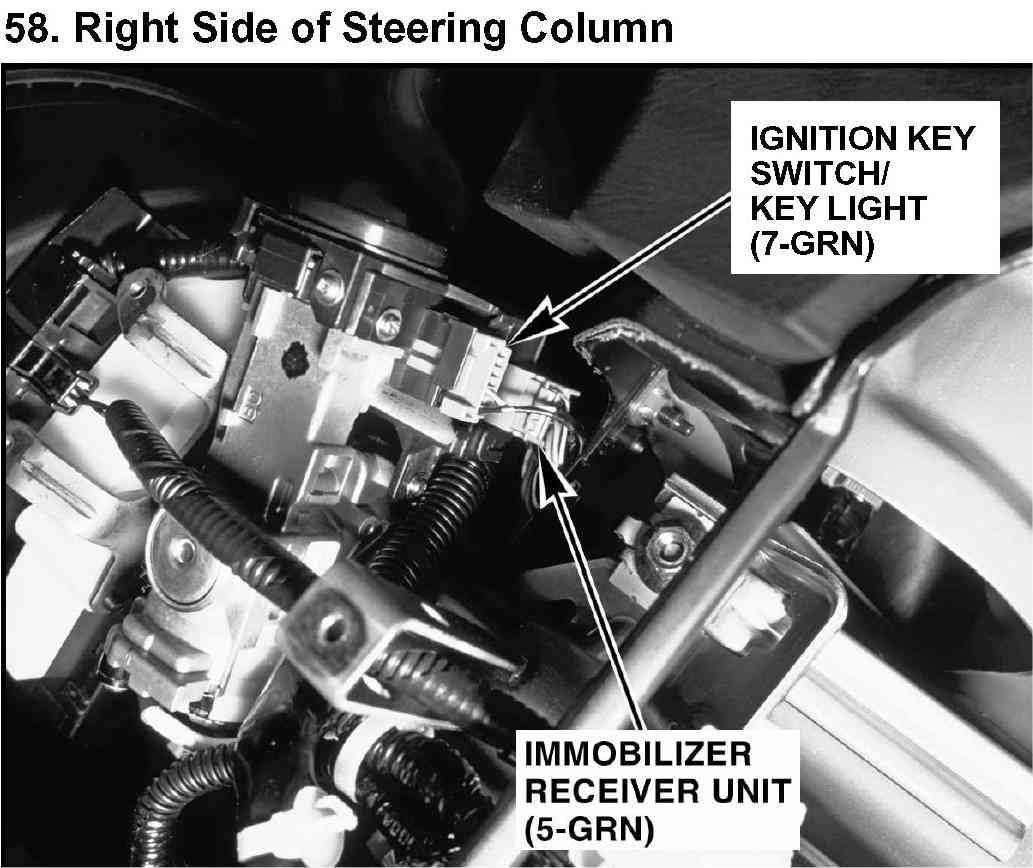

58. Right Side of Steering Column:

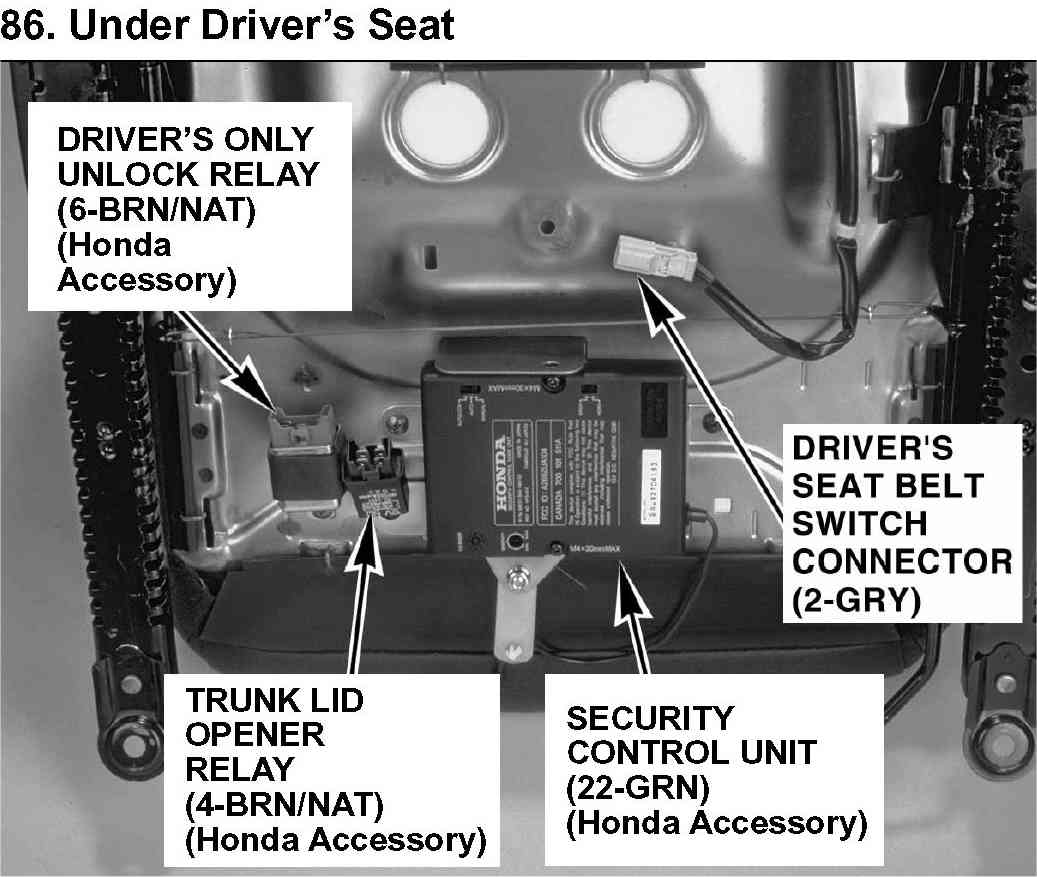

86. Under Driver's Seat:
