Air Pump Electrical Current Sensor Removal/Installation

Air Pump Electrical Current Sensor Removal/Installation

1. Pull away the left inner fender as necessary.

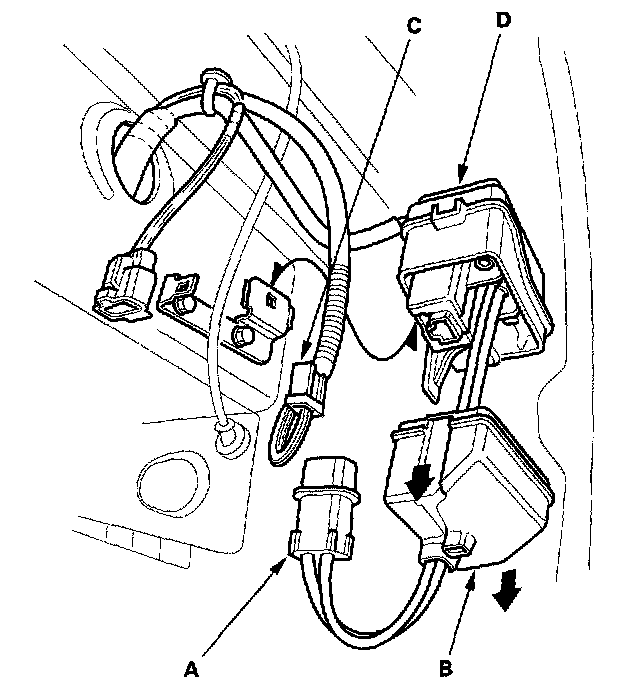

2. Disconnect the air pump electrical current sensor 2P connector (A), and remove the lower cover (B), then disconnect the air pump electrical current sensor 3P connector (C).
3. Remove the air pump electrical current sensor (D).
4. Install in the reverse order of removal.
