Connector Locations

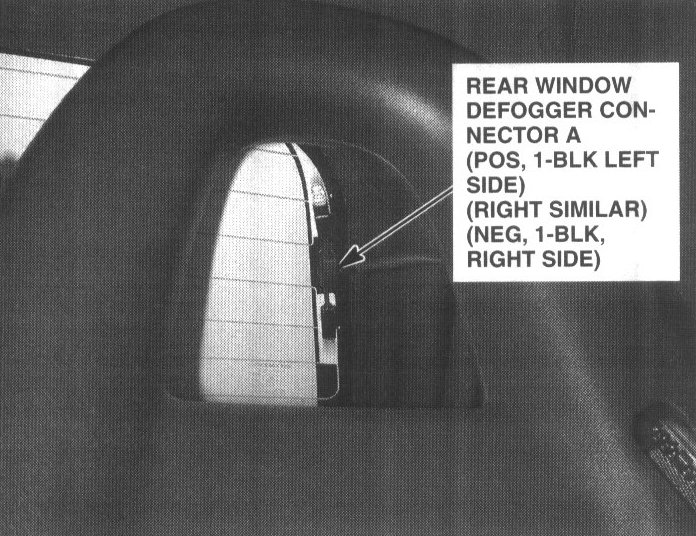

108. Left Side Of Hardtop (Removable Hardtop):

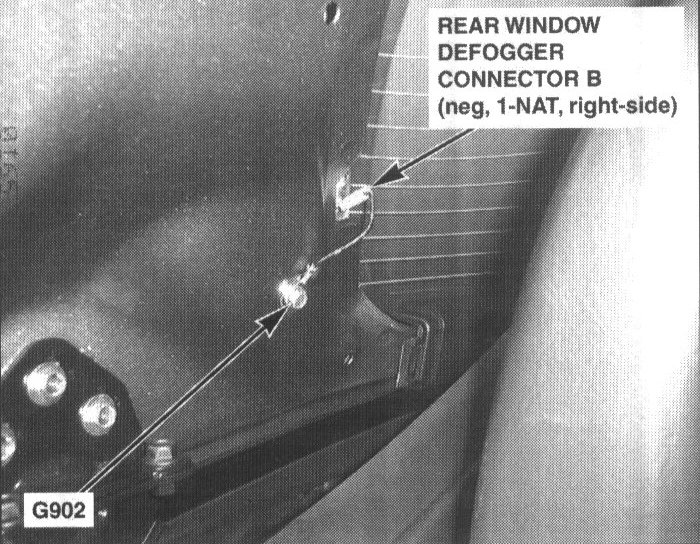

109. Right Side Of Hardtop (Removable Hardtop):

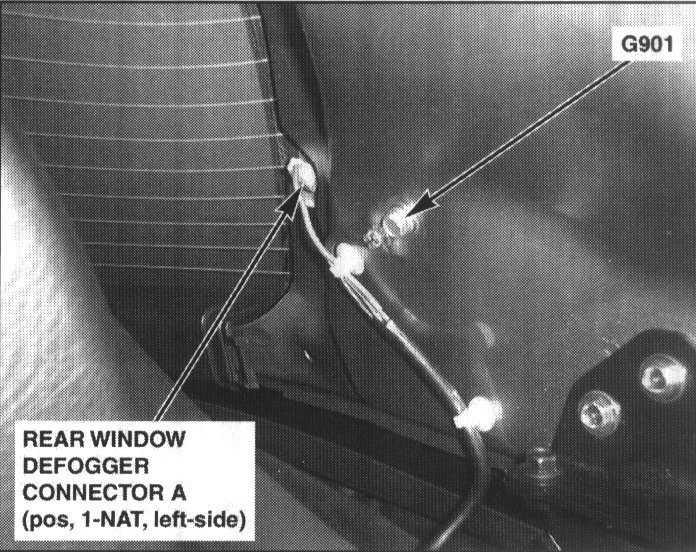

110. Left Side Of Soft Top (Right Similar):
