Relay Module: Locations

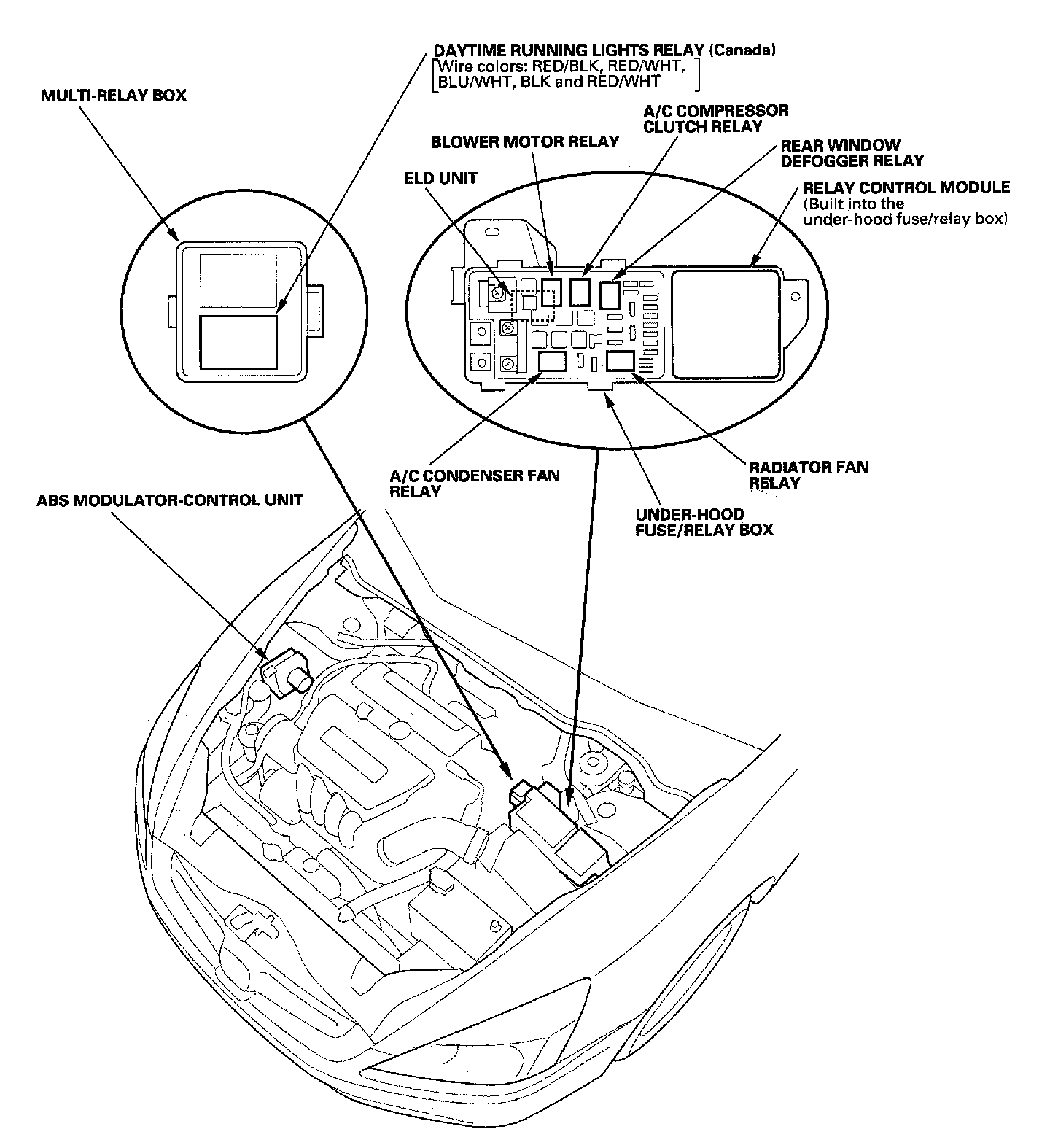

Relay And Control Unit Locations - Engine Compartment:

Multiplex Integrated Control System (MICS) - Component Location Index:

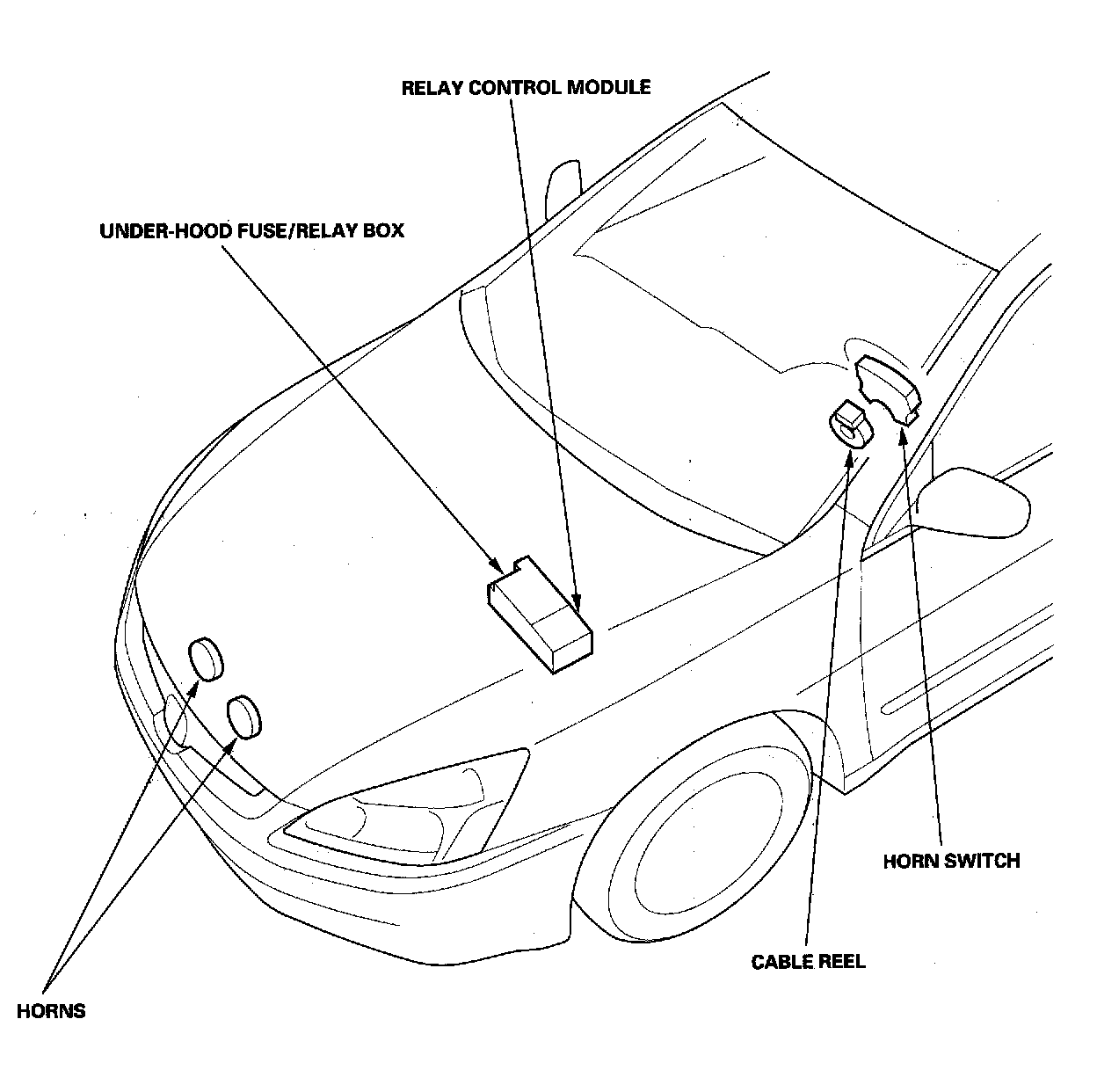

Horn - Component Location Index:

Wipers/Washers - Component Location Index:

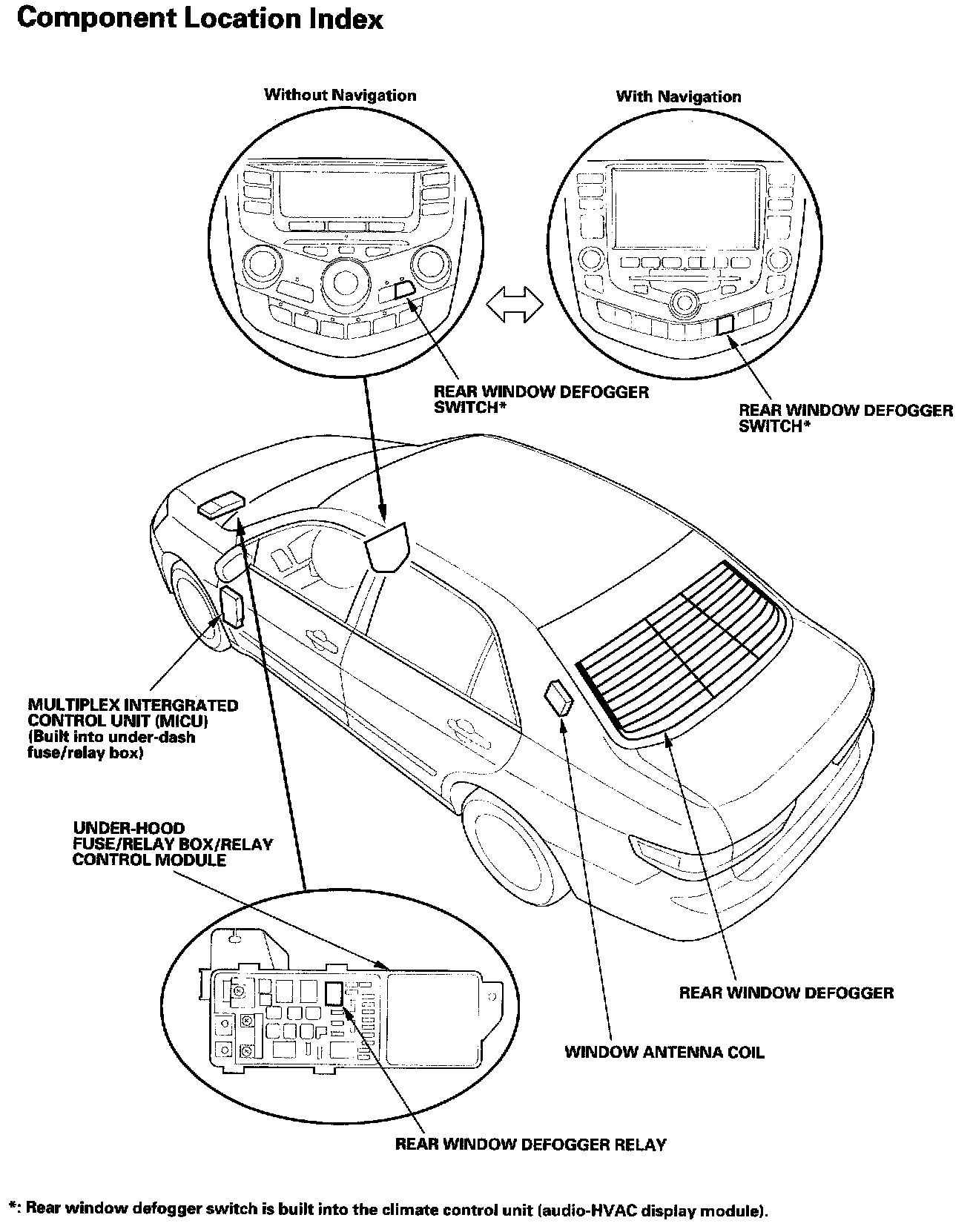

Rear Window Defogger - Component Location Index:
