Under-Dash Fuse/Relay Box

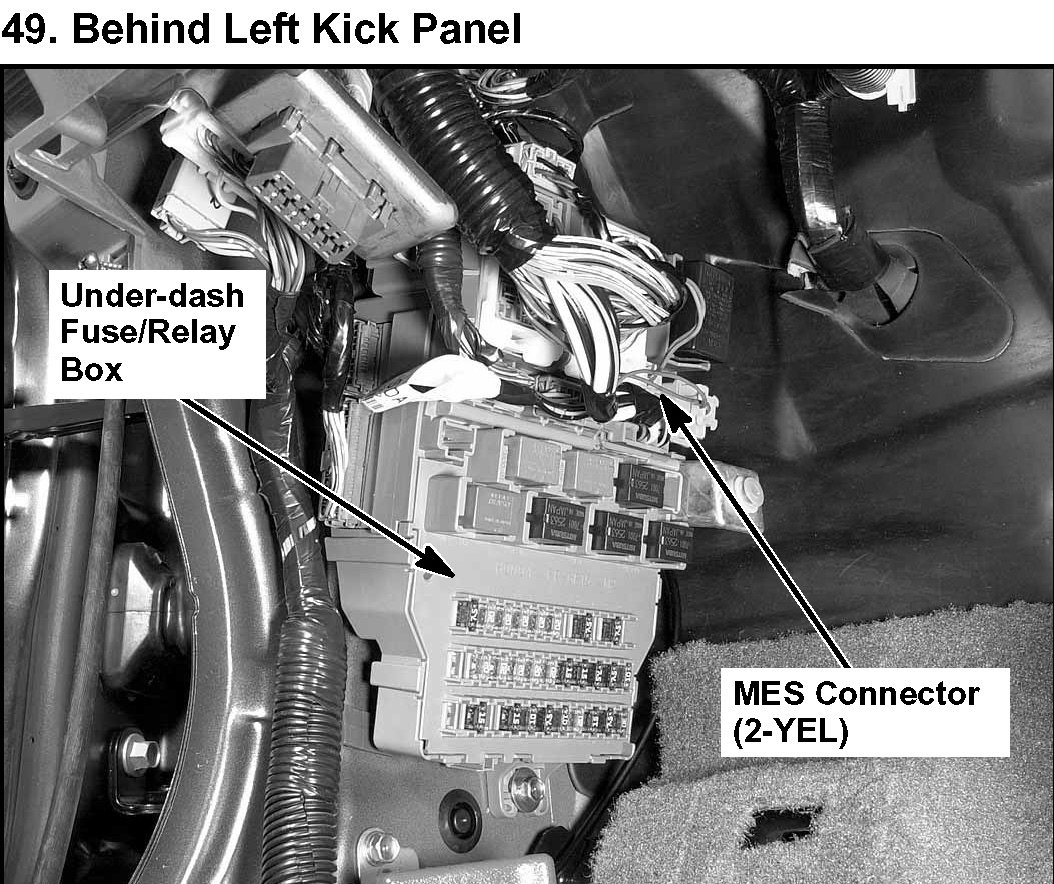

49. Behind Left Kick Panel:



Relay And Control Unit Locations - Dashboard:

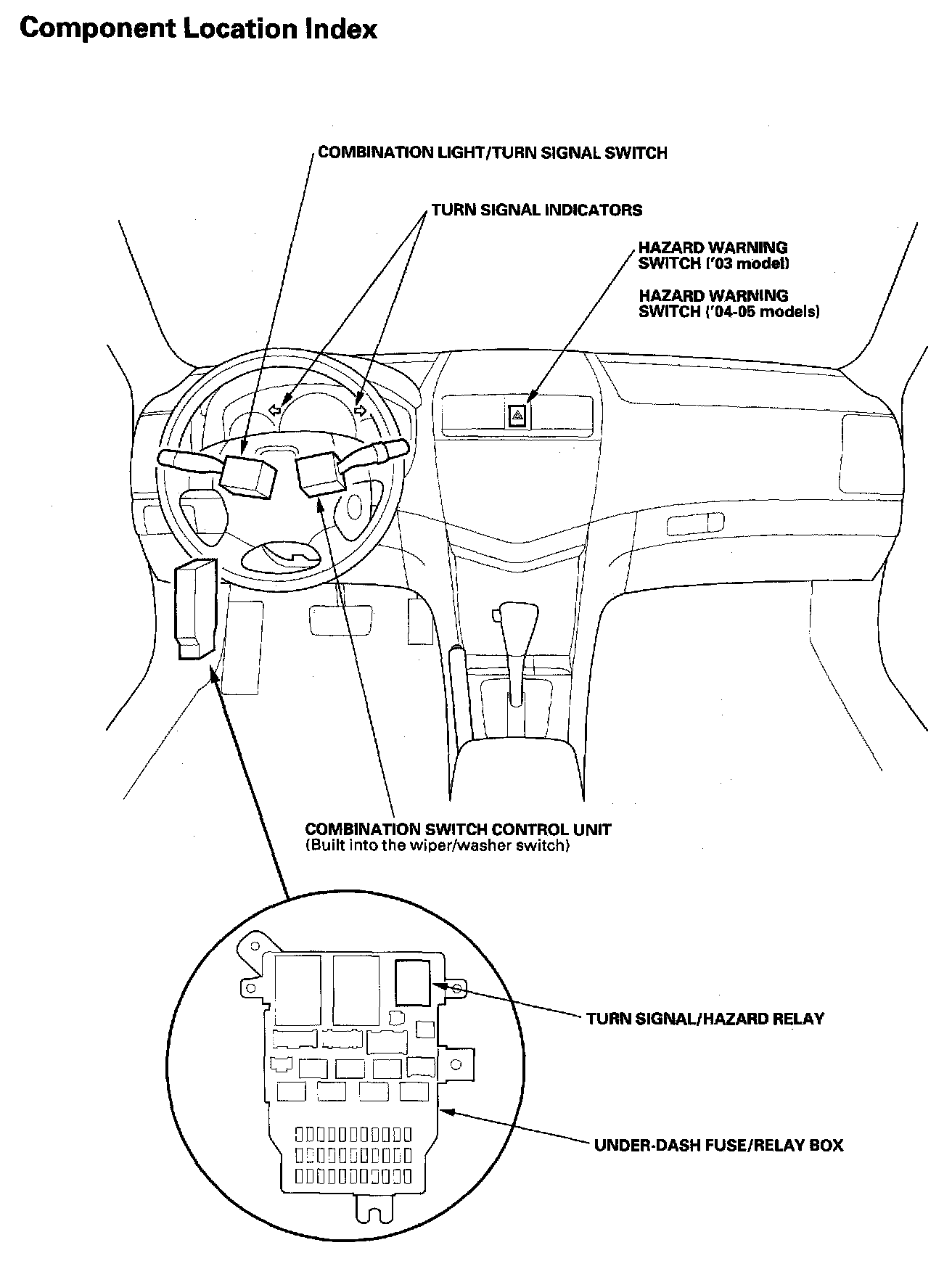

Turn Signal/Hazard Flasher - Component Location Index:

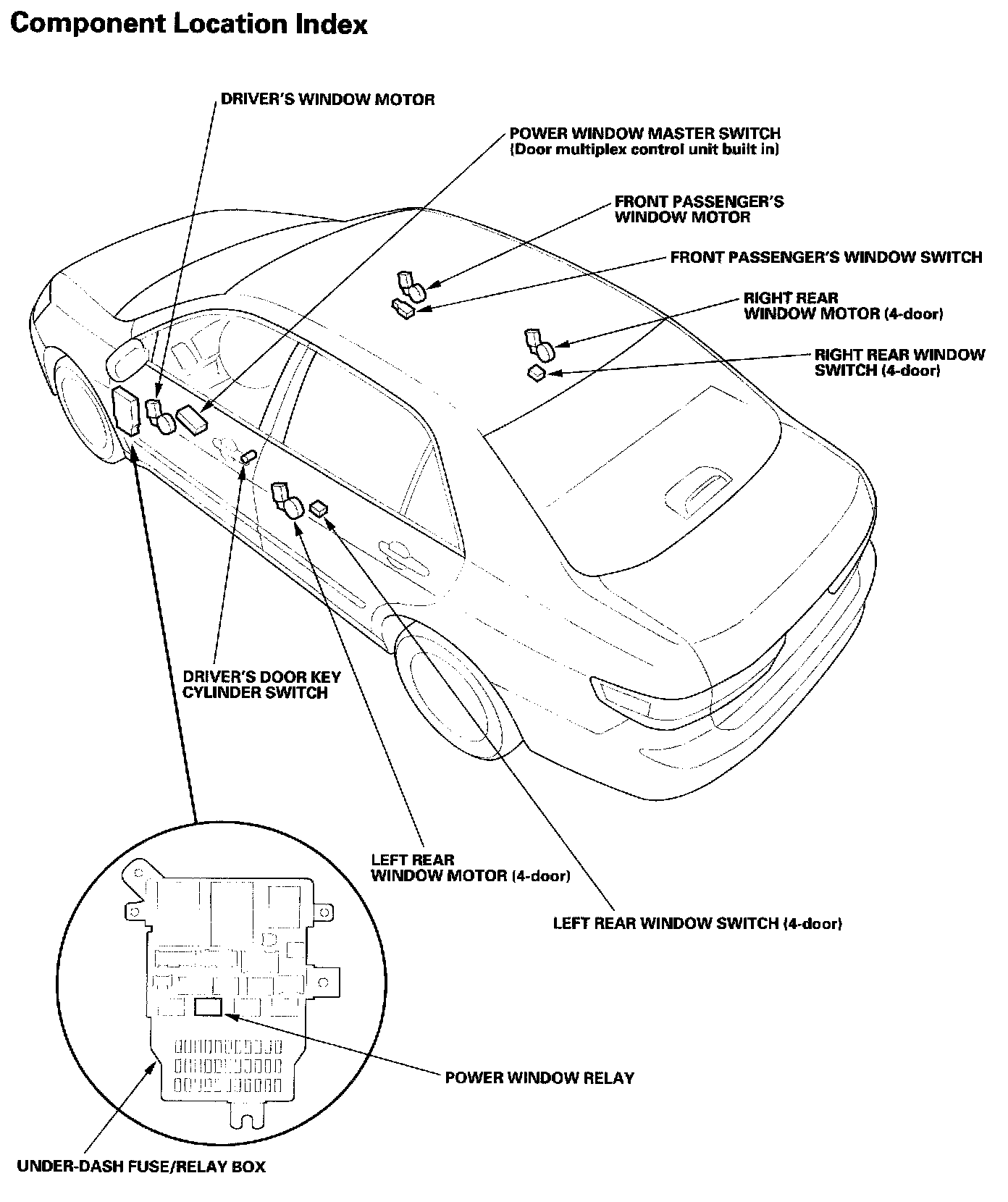

Power Windows - Component Location Index:

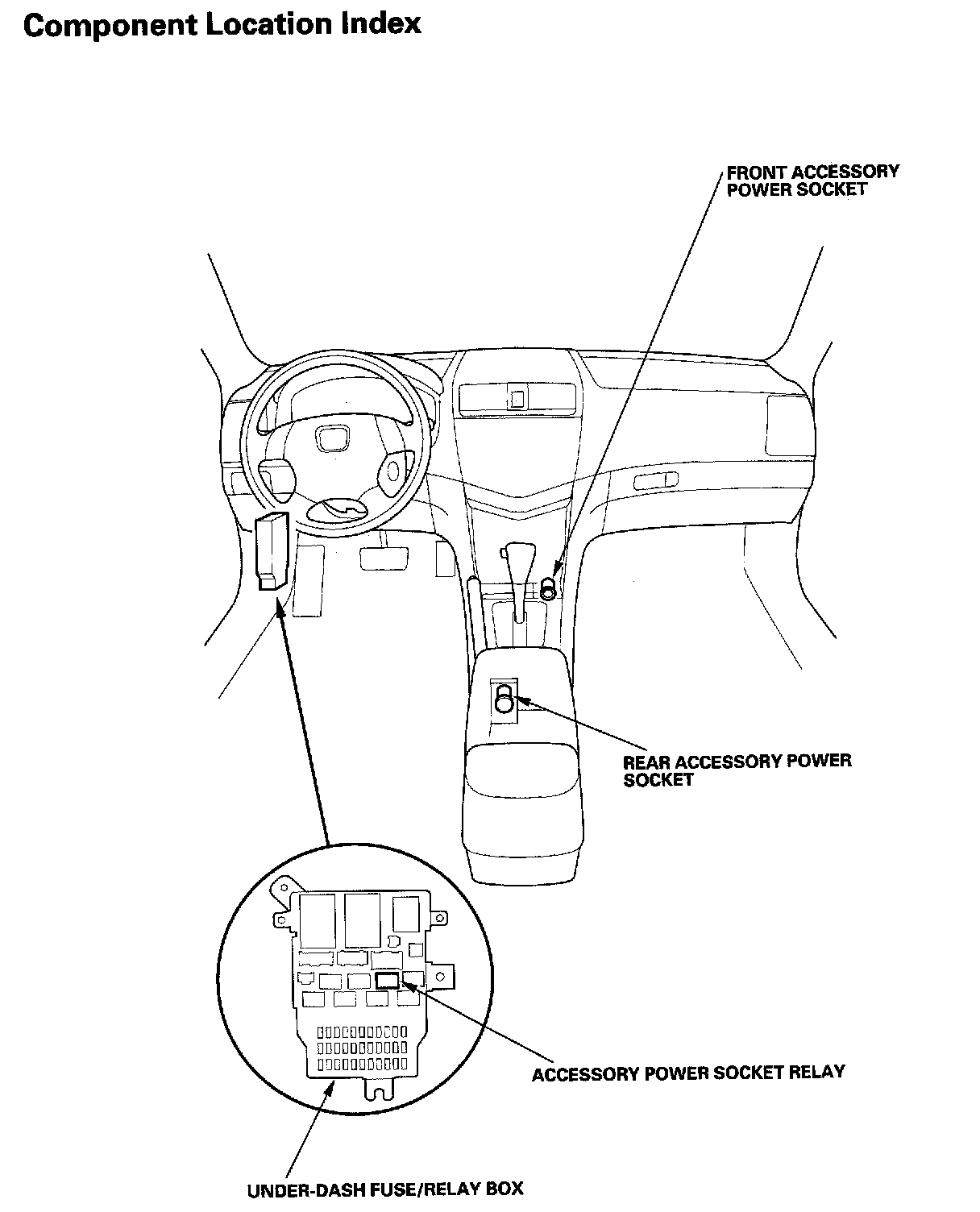

Accessory Power Sockets - Component Location Index:
