Fuel Tank Pressure Sensor: Locations

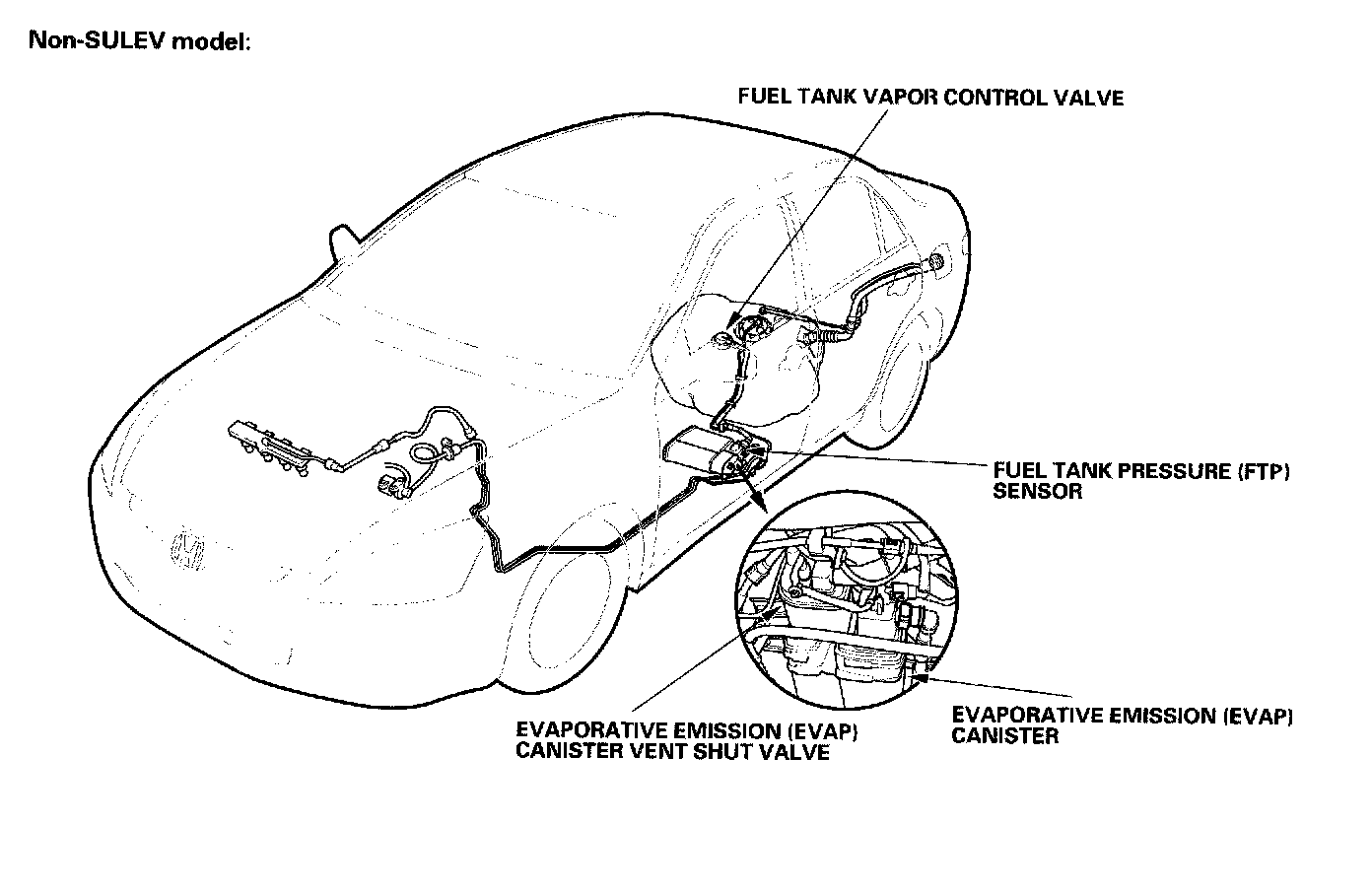

EVAP System (Non-SULEV Model) - Component Location Index:

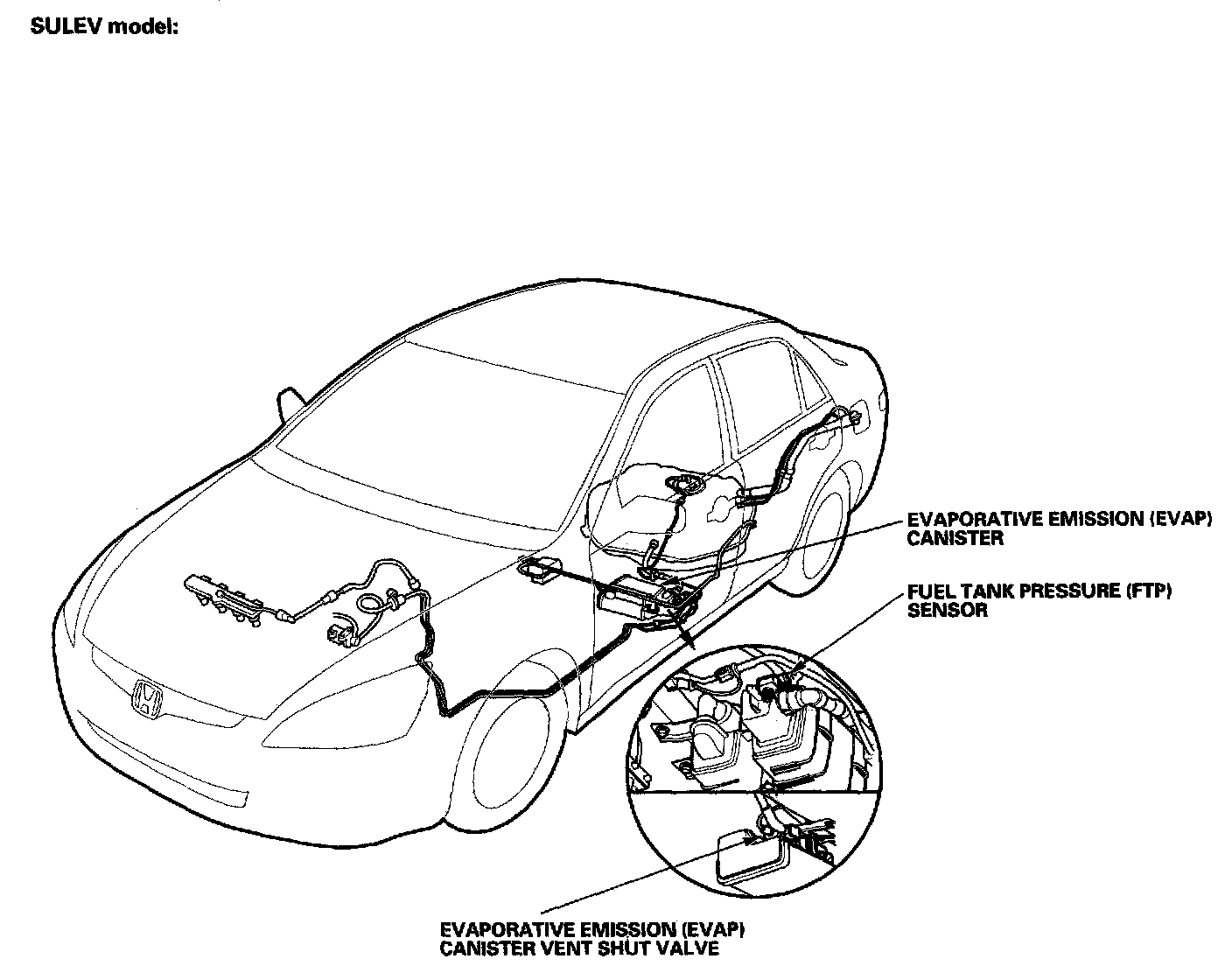

EVAP System (SULEV Model) - Component Location Index:

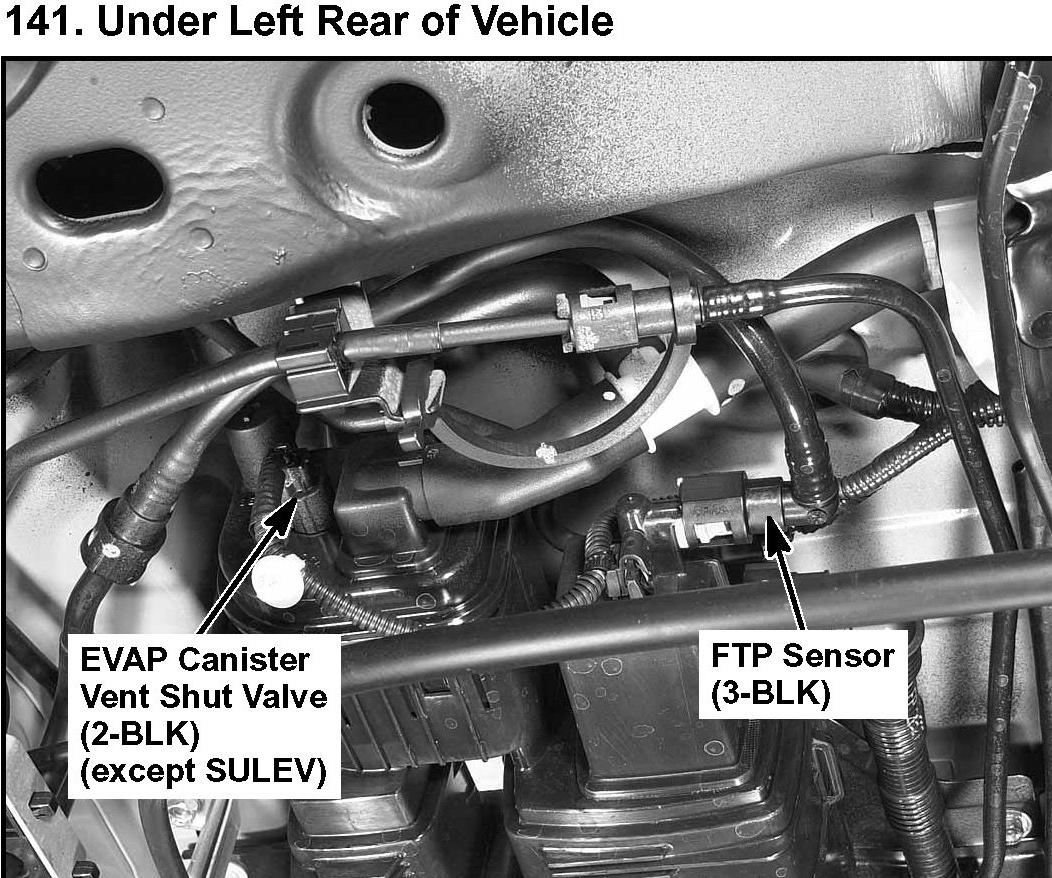

141. Under Left Rear Of Vehicle:
