Instrument Panel Control Module
>>
Diagrams
>>
Connector Views
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Connector Views

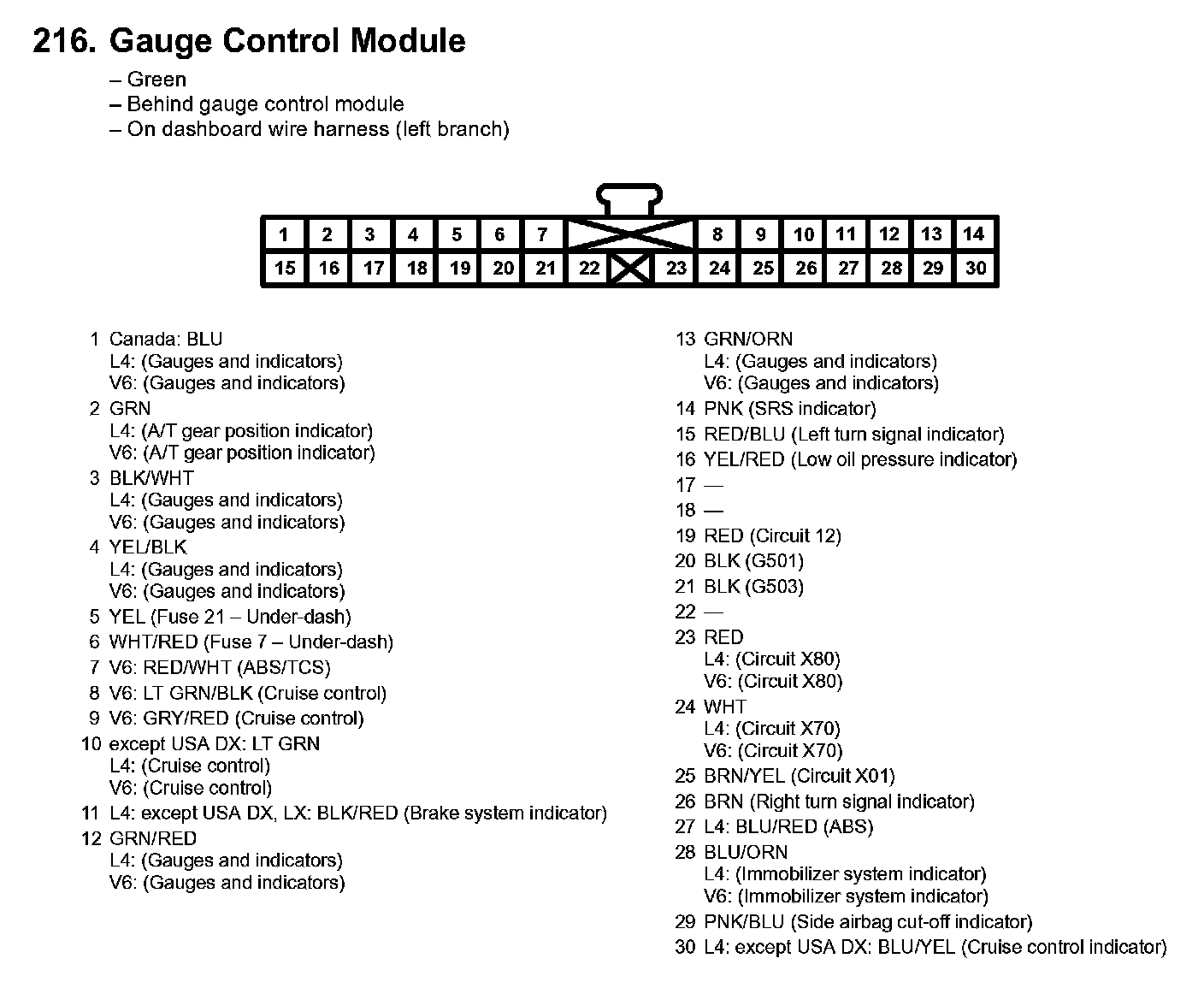

216. Gauge Control Module:
