Under-dash Fuse/Relay Box

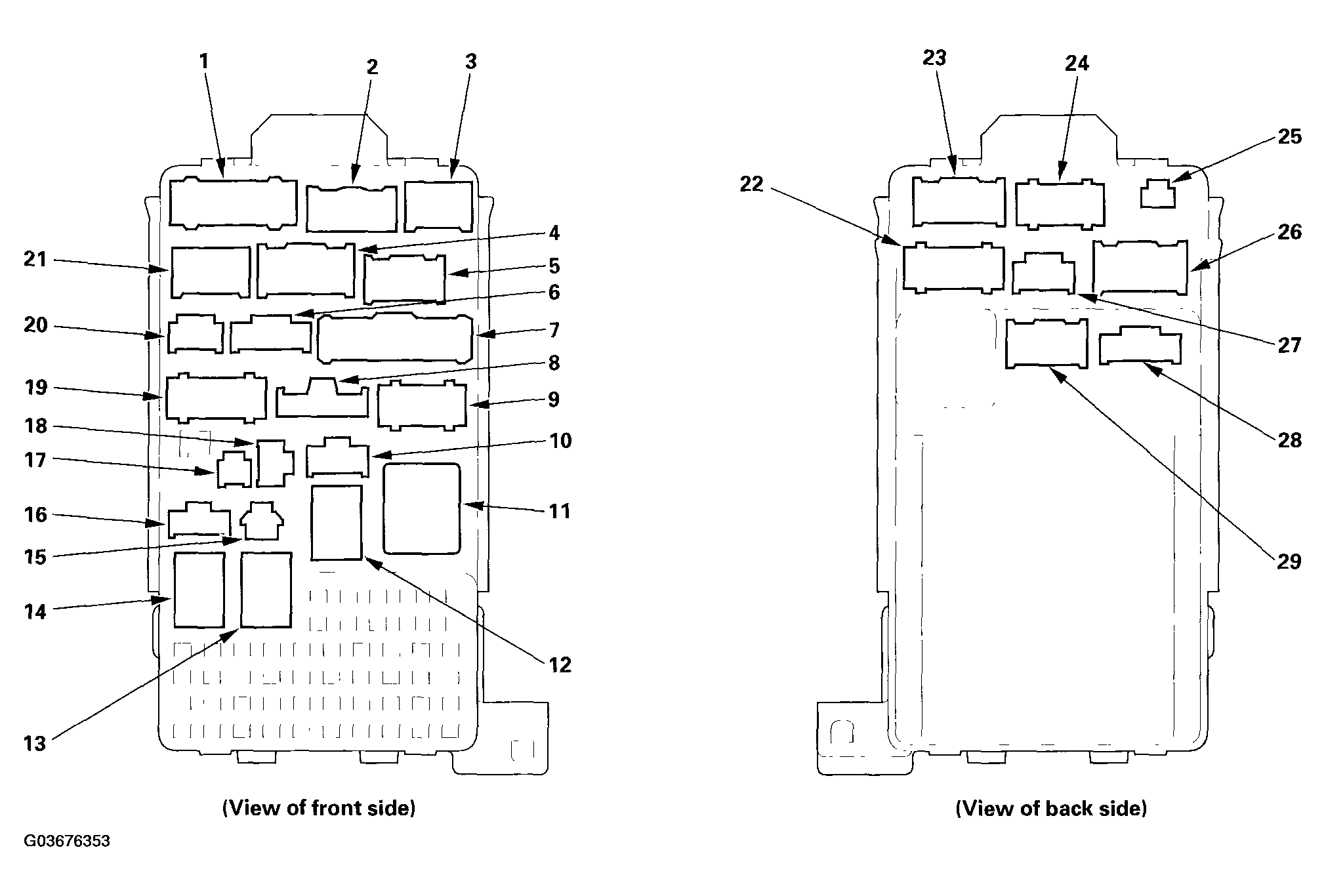

CONNECTOR TO FUSE/RELAY BOX INDEX - UNDER-DASH FUSE/RELAY BOX
| Socket | Ref | Terminal | Connects to |
|---|---|---|---|
| A | 2 | 5 | Dashboard wire harness B (see DASHBOARD WIRE HARNESS B ) |
| B | 3 | 6 | Dashboard wire harness B (see DASHBOARD WIRE HARNESS B ) |
| C | 1 | 14 | Dashboard wire harness B (see DASHBOARD WIRE HARNESS B ) |
| D | 4 | 12 | ECM/PCM wire harness (see ECM/PCM WIRE HARNESS ) |
| E | 5 | 13 | ECM/PCM wire harness (see ECM/PCM WIRE HARNESS ) |
| F | 19 | 12 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH) ) |
| G | 9 | 10 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH) ) |
| H | 8 | 3 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH) ) |
| I | 20 | 5 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH) ) |
| J | 21 | 8 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH) ) |
| K | 23 | 17 | Dashboard wire harness A (see DASHBOARD WIRE HARNESS A (LEFT BRANCH) ) |
| L | 24 | 10 | Dashboard wire harness A (see DASHBOARD WIRE HARNESS A (LEFT BRANCH) ) |
| M | 22 | 12 | Dashboard wire harness A (see DASHBOARD WIRE HARNESS A (LEFT BRANCH) ) |
| N | 27 | 6 | Dashboard wire harness A (see DASHBOARD WIRE HARNESS A (LEFT BRANCH) ) |
| O | 26 | 12 | Dashboard wire harness A (see DASHBOARD WIRE HARNESS A (LEFT BRANCH) ) |
| P | 7 | 18 | ECM/PCM wire harness (see ECM/PCM WIRE HARNESS ) |
| Q | 6 | 8 | ECM/PCM wire harness (see ECM/PCM WIRE HARNESS ) |
| R | 10 | 6 | ECM/PCM wire harness (see ECM/PCM WIRE HARNESS ) |
| Power window relay | 12 | 4 | |
| S | 25 | 2 | ECM/PCM wire harness (see ECM/PCM WIRE HARNESS ) |
| Starter cut relay | 14 | 4 | |
| T | 18 | 3 | Multiplex control inspection connector |
| Taillight relay | 13 | 4 | |
| Turn signal/hazard relay | 11 | 3 | |
| U | 15 | 1 | Optional connector |
| V | 16 | 4 | Optional connector |
| W (Memory erase signal (MES) connector) | 17 | 2 | ECM/PCM wire harness (see ECM/PCM WIRE HARNESS ) |
| X | 28 | 8 | (Plugs directly into the multiplex control unit) |
| Y | 29 | 13 | (Plugs directly into the multiplex control unit) |
