Ignition Coil Removal/Installation

  1. Remove the ignition coil cover (A),ignition coil connectors (B) then remove the ignition coils (C).

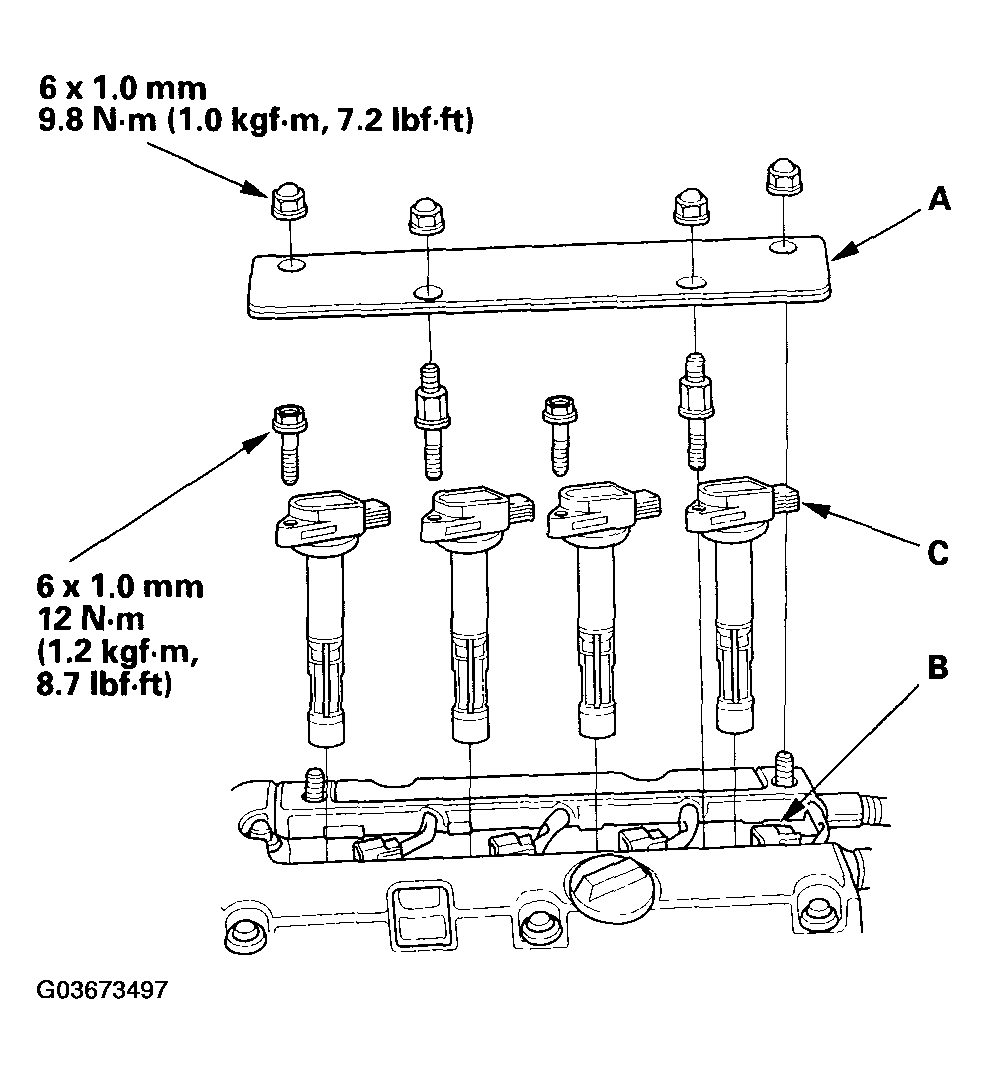

    Fig 1: Removing The Ignition Coil Cover, Ignition Coil Connectors And Ignition Coils
    G03673497Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the ignition coils in the reverse order of removal.
