FTP Sensor Replacement

Remove the EVAP canister (see EVAP CANISTER REPLACEMENT ).
Remove the retaining clip (A).

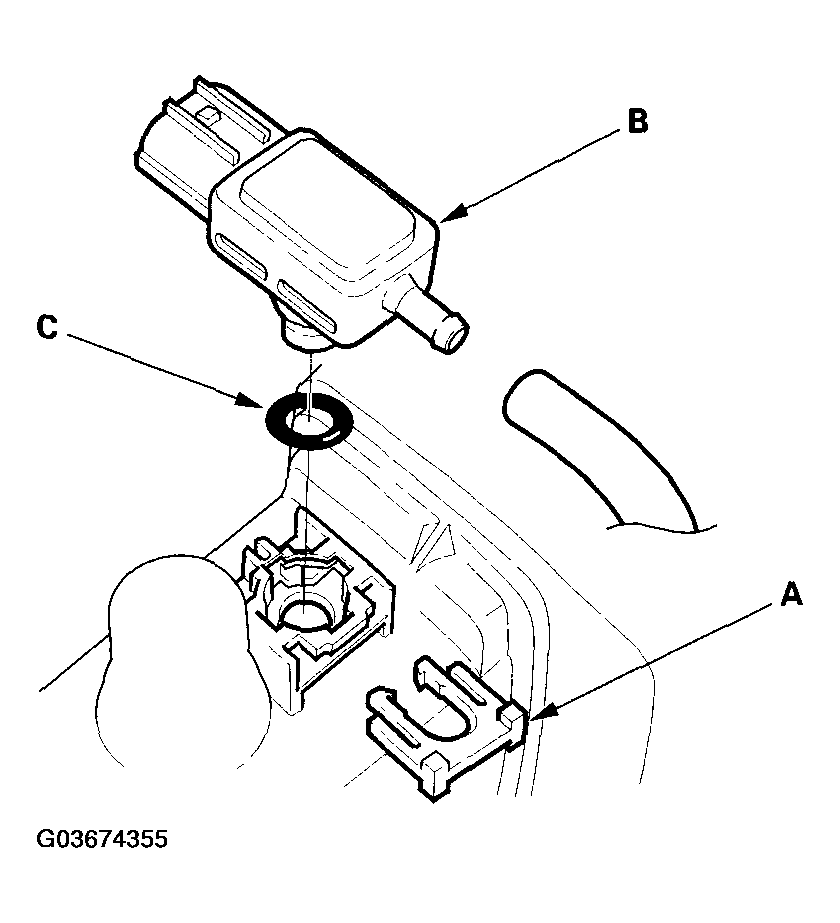

Fig 1: Removing Retaining Clip And FTP Sensor And Installing The Sensor In The Reverse Order
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the FTP sensor (B).
Install the sensor in the reverse order of removal with a new O-ring (C).
