Idle Speed Inspection

NOTE:

Before checking the idle speed, check these items:
- The malfunction indicator lamp (MIL) has not been reported on, and there are no DTCs.
- Ignition timing
- Spark plugs
- Air cleaner
- PCV system
Apply the parking brake.

Disconnect the evaporative emission (EVAP) canister purge valve connector.
Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.

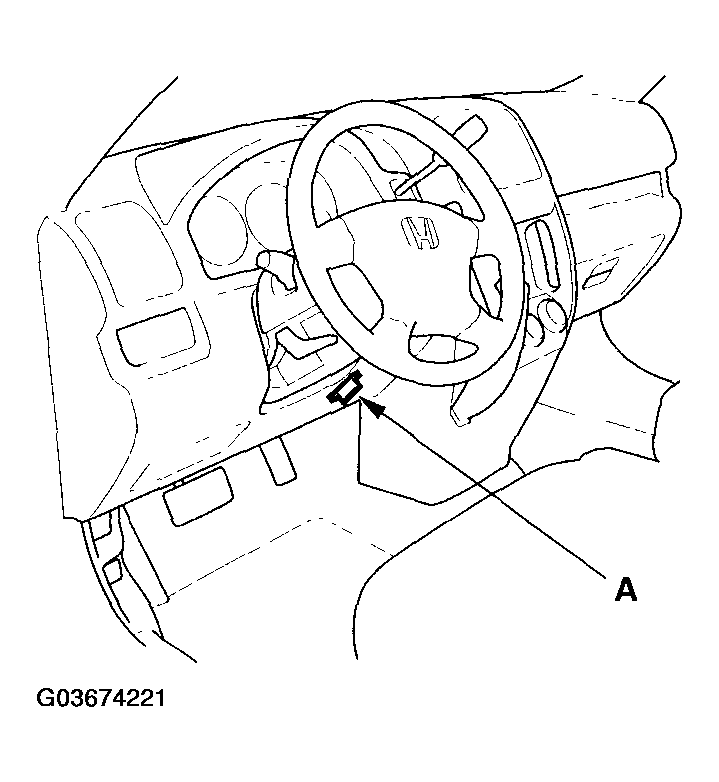

Fig 1: Connecting HDS To Data Link Connector Located Under Driver's Side Of Dashboard
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Start the engine. Hold the engine speed at 3,000 rpm without load (in Park or neutral) until the radiator fan comes on, then let it idle.

Check the idle speed without load conditions: headlights, blower fan, radiator fan, and air conditioner off.

Idle speed should be:

IDLE SPEED SPECIFICATION (1 Of 2)

M/T	650+/-50 rpm
A/T	650+/-50 rpm (in Park or neutral)

Let the engine idle for 1 minute with high electric load (A/C switch ON, temperature set to Max Cool, blower fan on High, rear window defogger ON, and headlights on high beam).

Idle speed should be:

IDLE SPEED SPECIFICATION (2 Of 2)

M/T	700+/-50 rpm
A/T	700+/-50 rpm (in Park or neutral)

NOTE: If the idle speed is not within specification, do the ECM/PCM idle learn procedure (see ECM/PCM IDLE LEARN PROCEDURE ). If the idle is still out of specification, go to the symptom troubleshooting.

Reconnect the EVAP canister purge valve connector.
