Air Cleaner Removal/Installation

Remove the clamp (A), the nut (B), and the bolts (C).

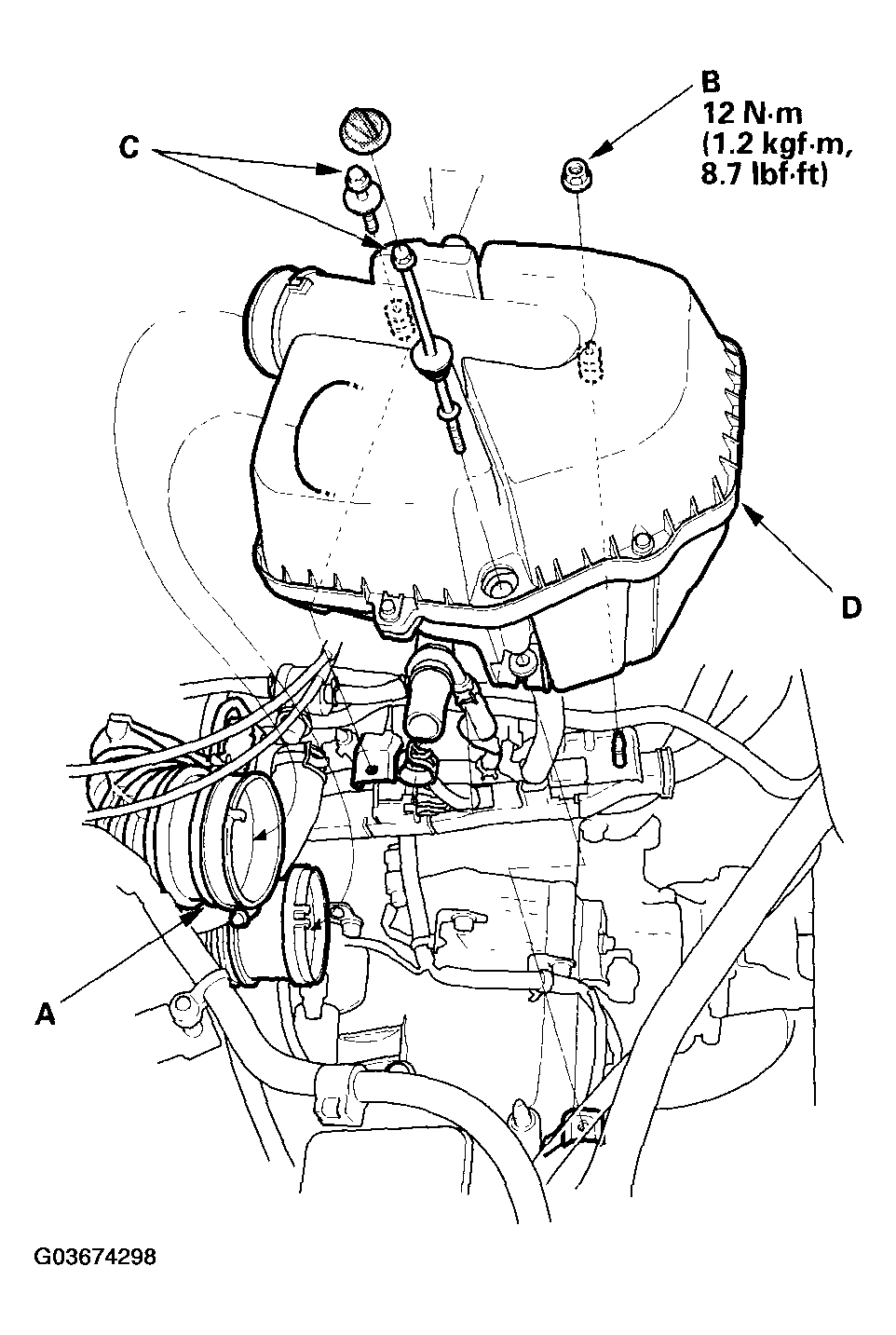

Fig 1: Removing Clamp, Nut, Bolts, And Air Cleaner With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the air cleaner (D).
NOTE: When disconnecting the hose, be careful not to damage the hose joint.
Install in the reverse order of removal.
