IMT Valve Replacement

  1. Remove the intake manifold (see INTAKE MANIFOLD REMOVAL AND INSTALLATION ).
  2. Disconnect the vacuum hose (A).

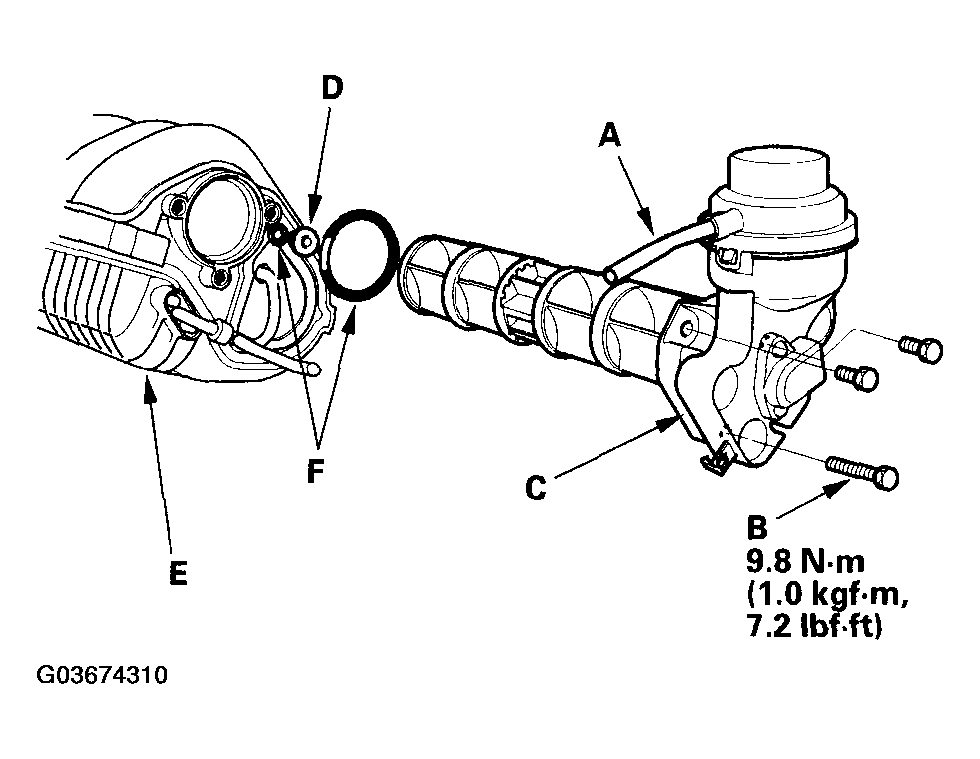

    Fig 1: Installing The IMT Actuator With Torque Specifications
    G03674310Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (B).
  4. Remove the IMT actuator assembly (C).
    NOTE:
    • When installing the IMT actuator, make sure the bearing (D) is in place.
    • Make sure the IMT assembly does not interfere with the intake manifold (E).
    • When installing the IMT actuator, replace the O-rings (F).
  5. Install the IMT actuator assembly (A) so the hole (B) is visible.

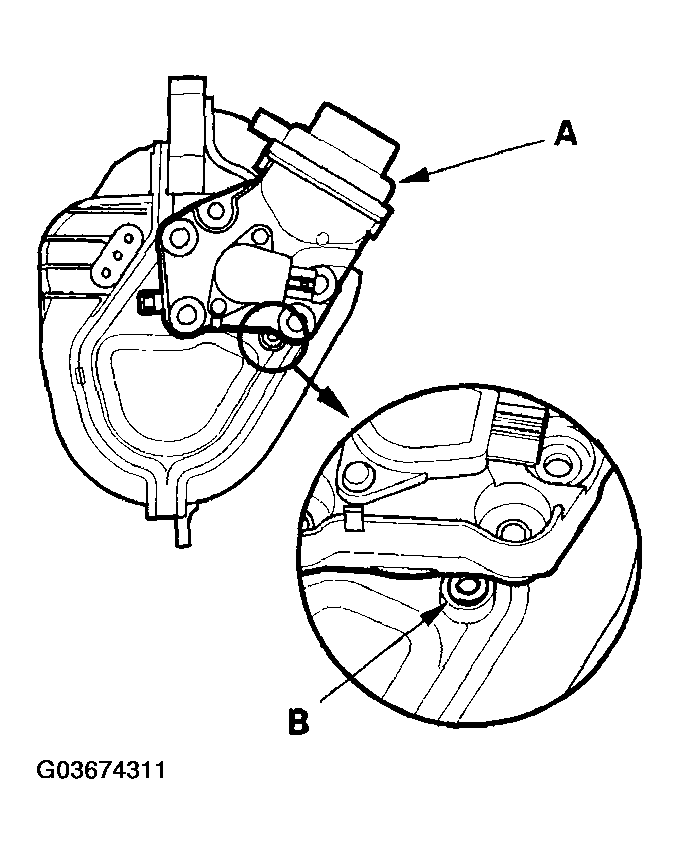

    Fig 2: Installing IMT Actuator Assembly So Hole Is Visible
    G03674311Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Turn the IMT actuator assembly (A), and align the bolt holes.
    NOTE: When turning the IMT actuator assembly, make sure the stop (B) fits into the groove (C).

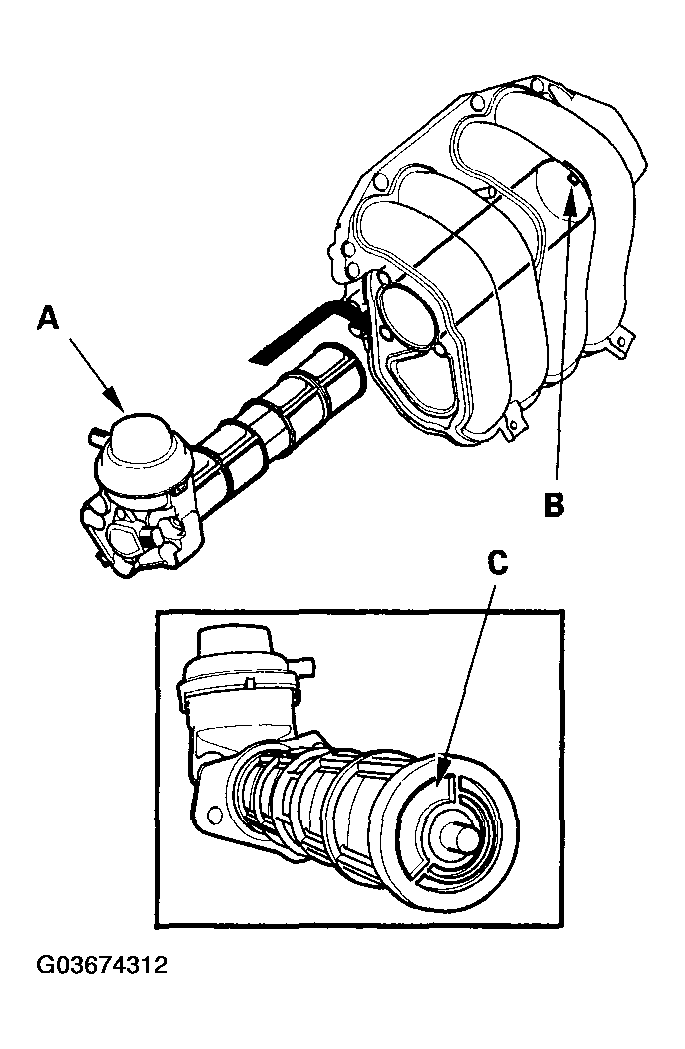

    Fig 3: Turning IMT Actuator Assembly, And Aligning Bolt Holes
    G03674312Courtesy of AMERICAN HONDA MOTOR CO., INC.
