CMP Sensor A Replacement

  1. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Disconnect CMP sensor A 3P connector.
  3. Remove CMP sensor A (A) from the intake camshaft side of the cylinder head.

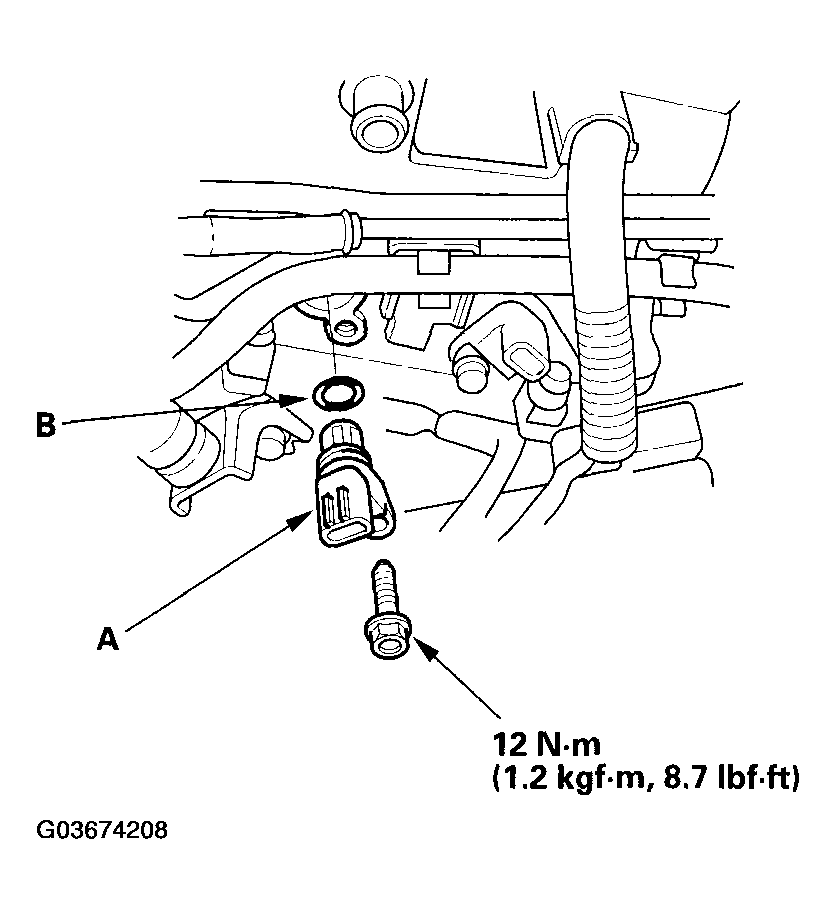

    Fig 1: Removing CMP Sensor & Torque Specifications
    G03674208Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the sensor in the reverse order of removal with a new O-ring (B).
