Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

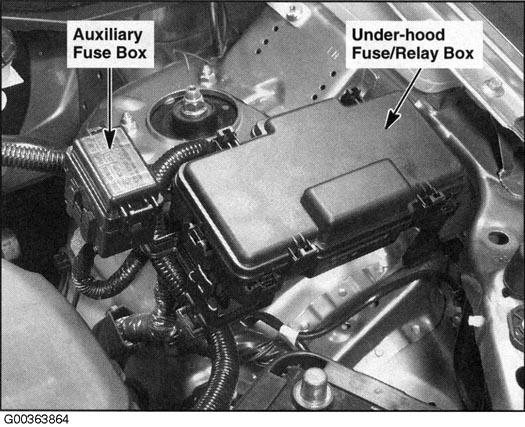

| Auxiliary Fuse Box | Left side of engine compartment. See Figure . |

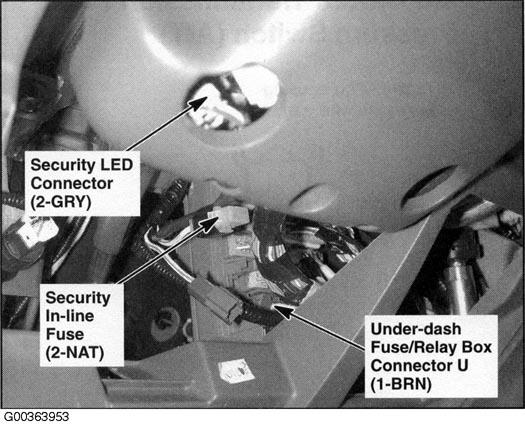

| Security In-Line Fuse | Under left side of dash. See Figure . |

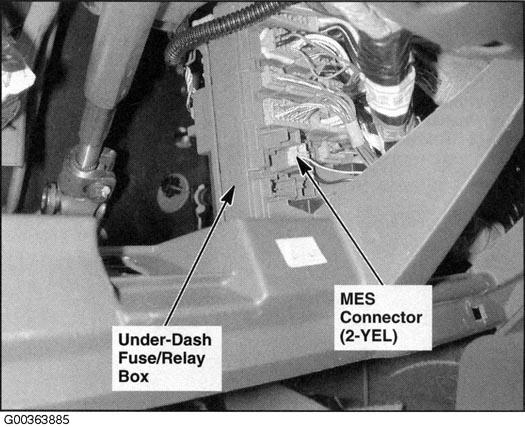

| Under-Dash Fuse/Relay Box | Behind left side of dash, right of steering column. See Figure . |
| Under-Hood Fuse/Relay Box | On left side of engine compartment. See Figure . |
