Starter Overhaul: Disassembly/Reassembly: Notes

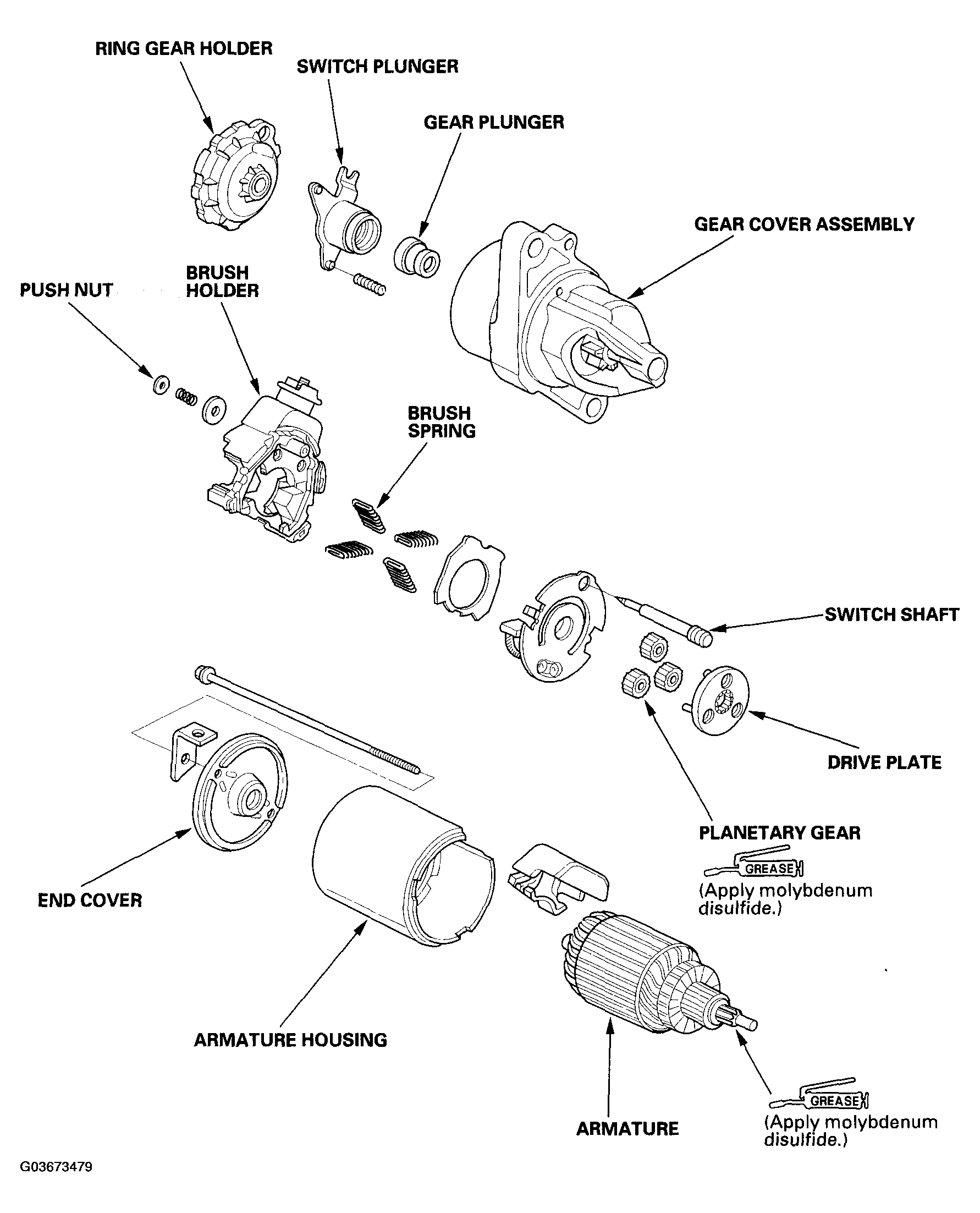

Fig 1: Disassembling/Reassembling Starter Overhaul
G03673479Courtesy of AMERICAN HONDA MOTOR CO., INC.
