Cruise Control Module: Locations

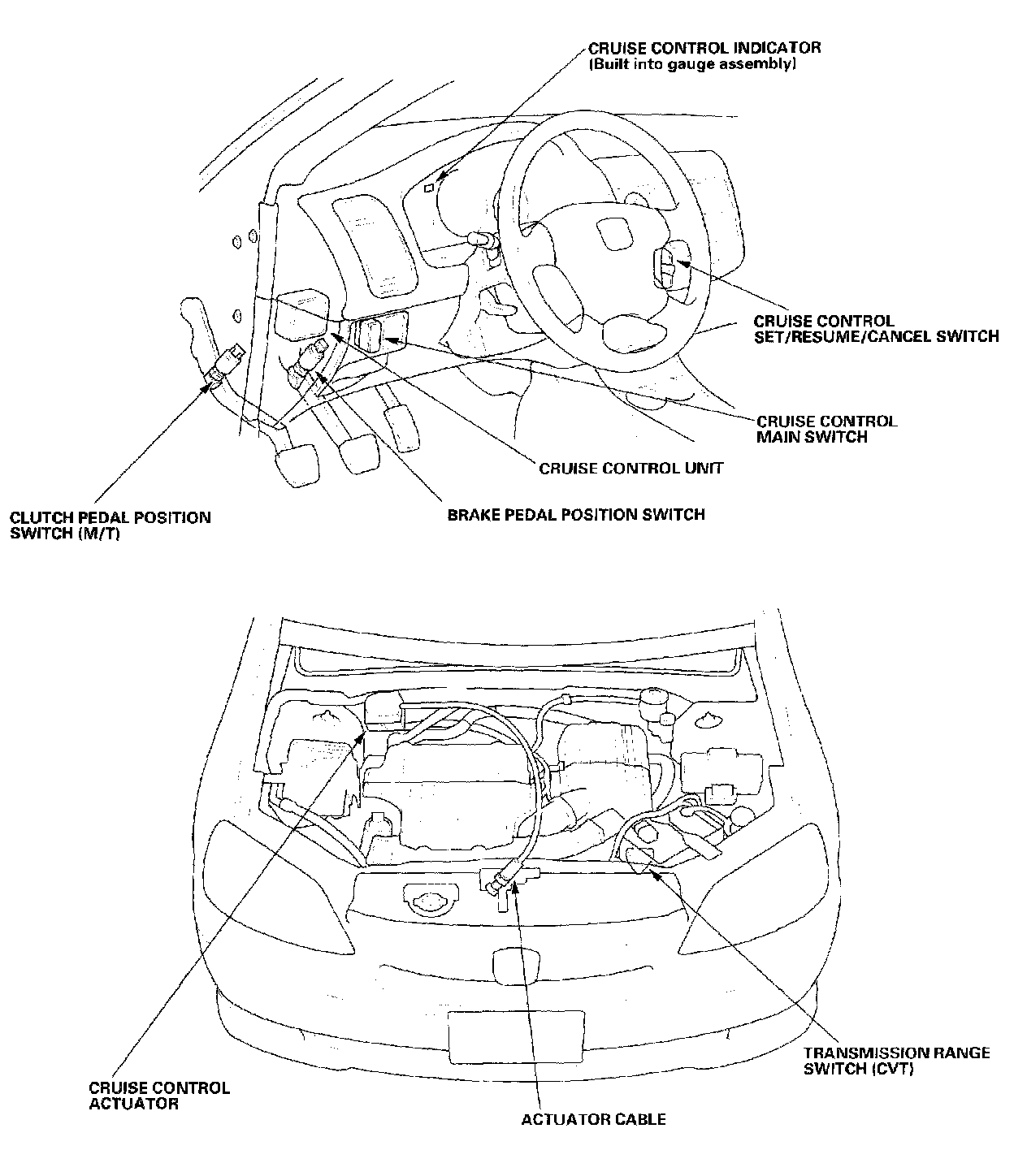

Cruise Control - Component Location Index:

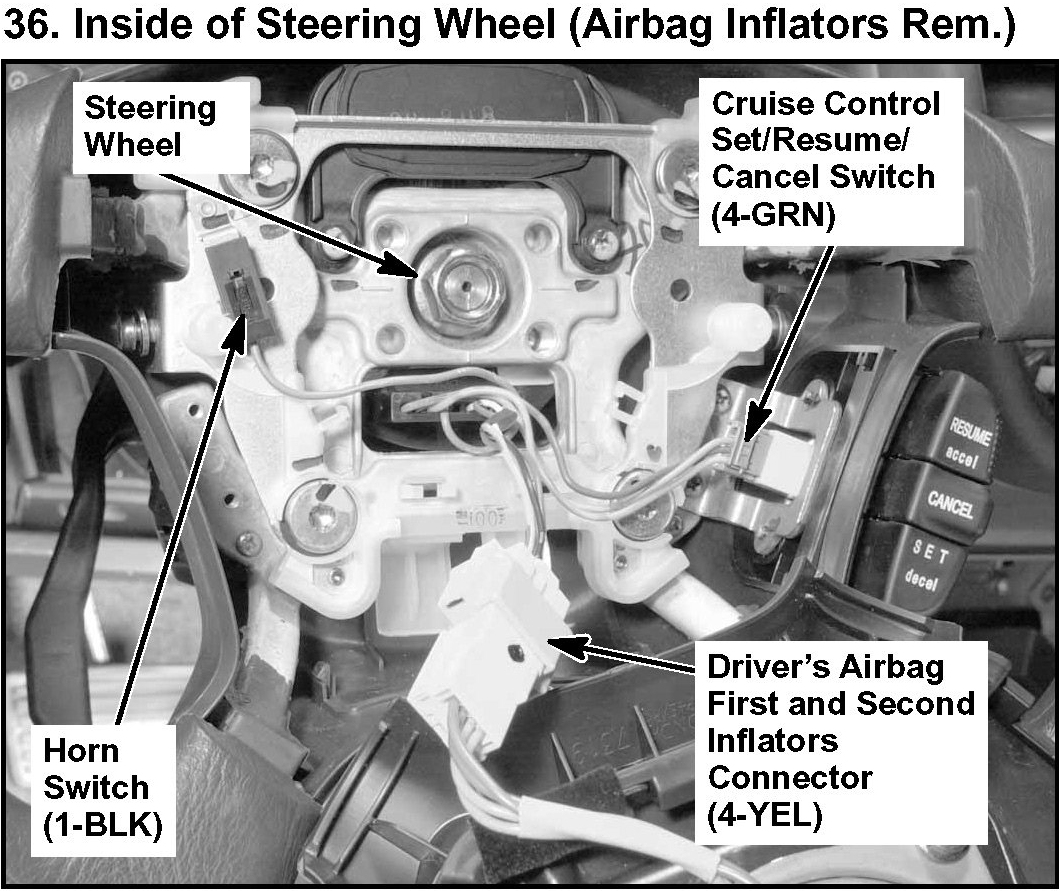

36. Inside Of Steering Wheel (Airbag Inflators Rem.):

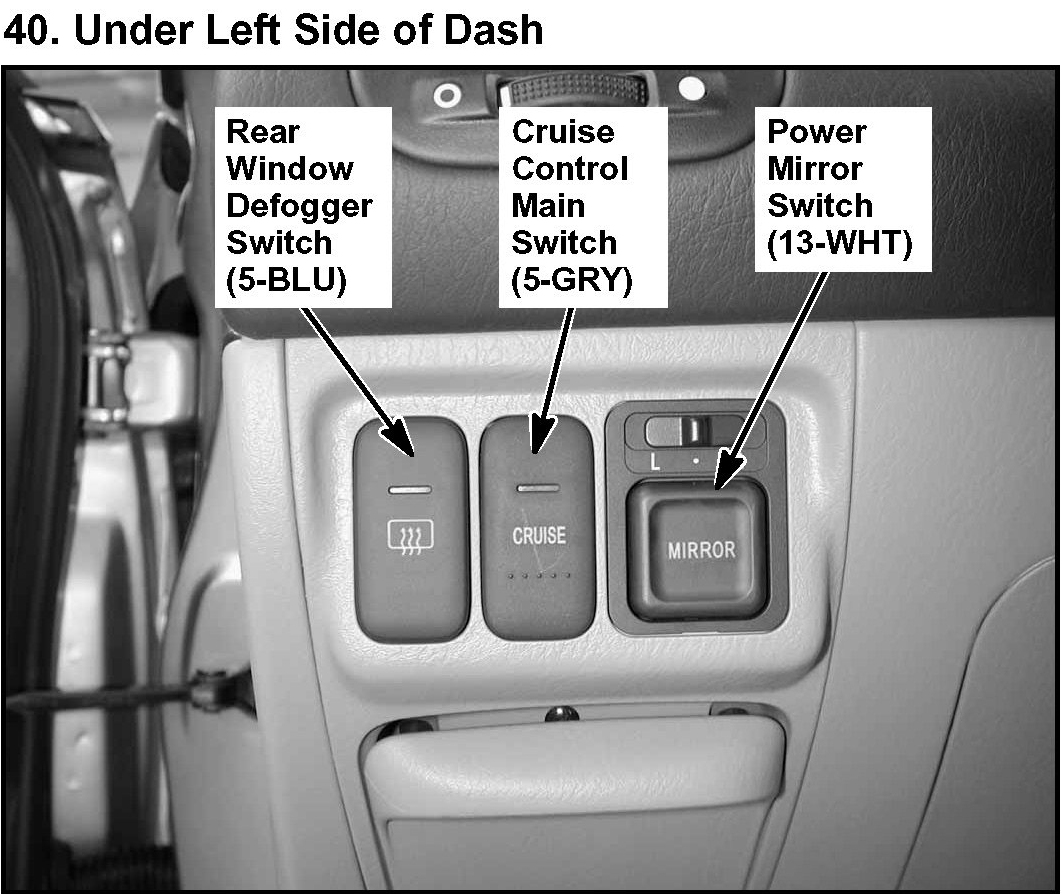

40. Under Left Side Of Dash:
