Pinout Values and Diagnostic Parameters

System Descriptions

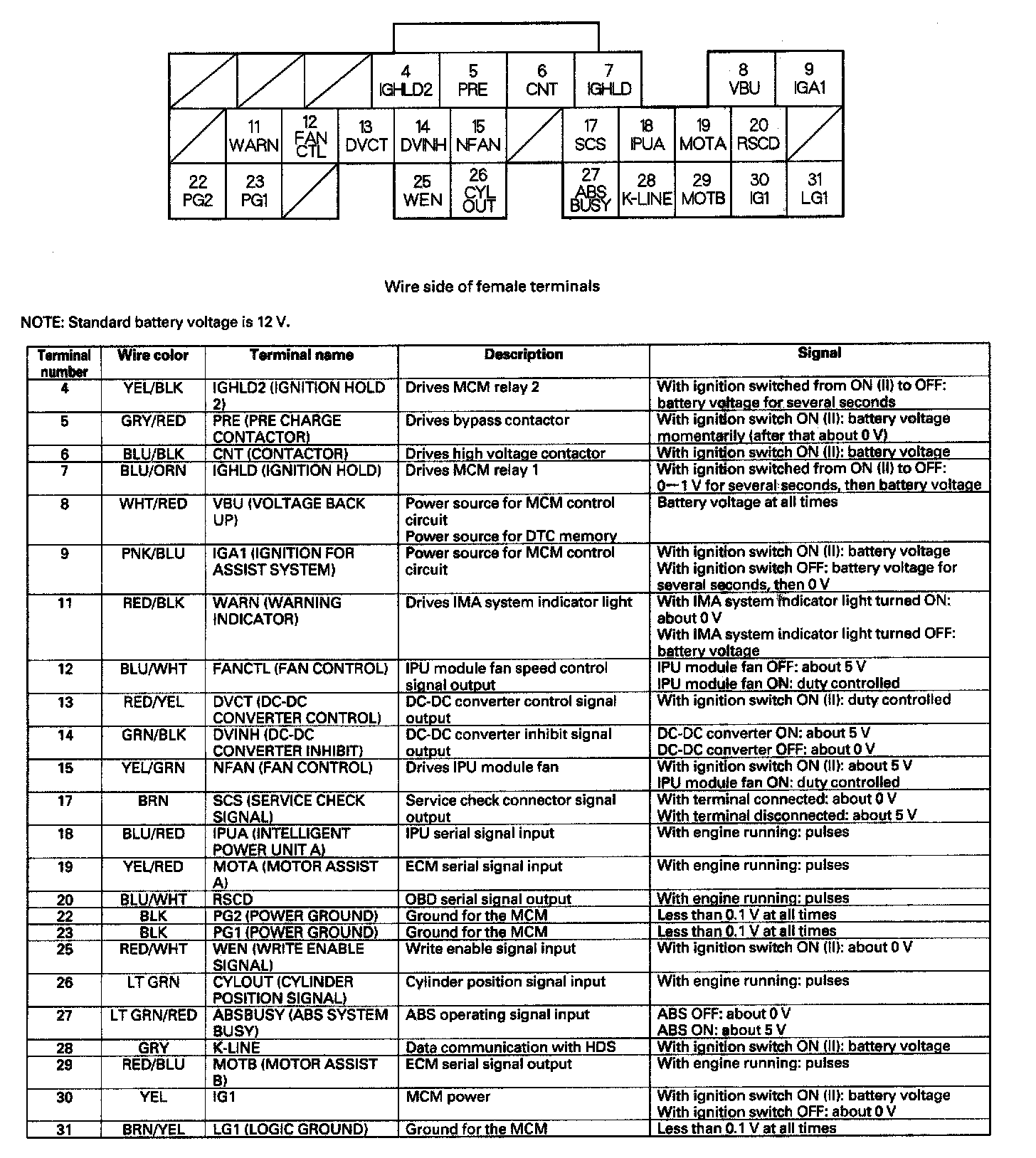

MCM Inputs and Outputs at Connector A (31P)

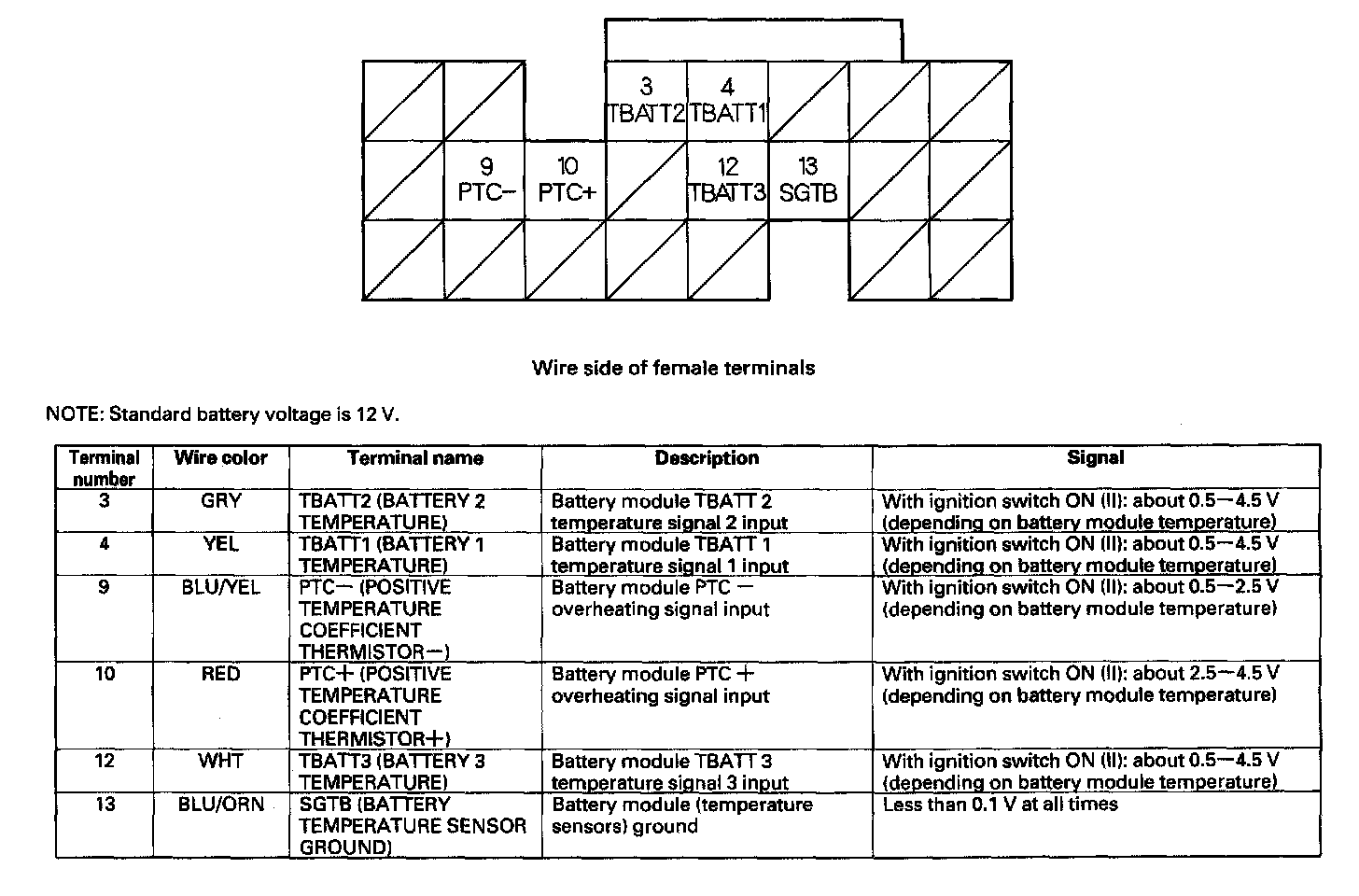

MCM Inputs and Outputs at Connector B (24P)

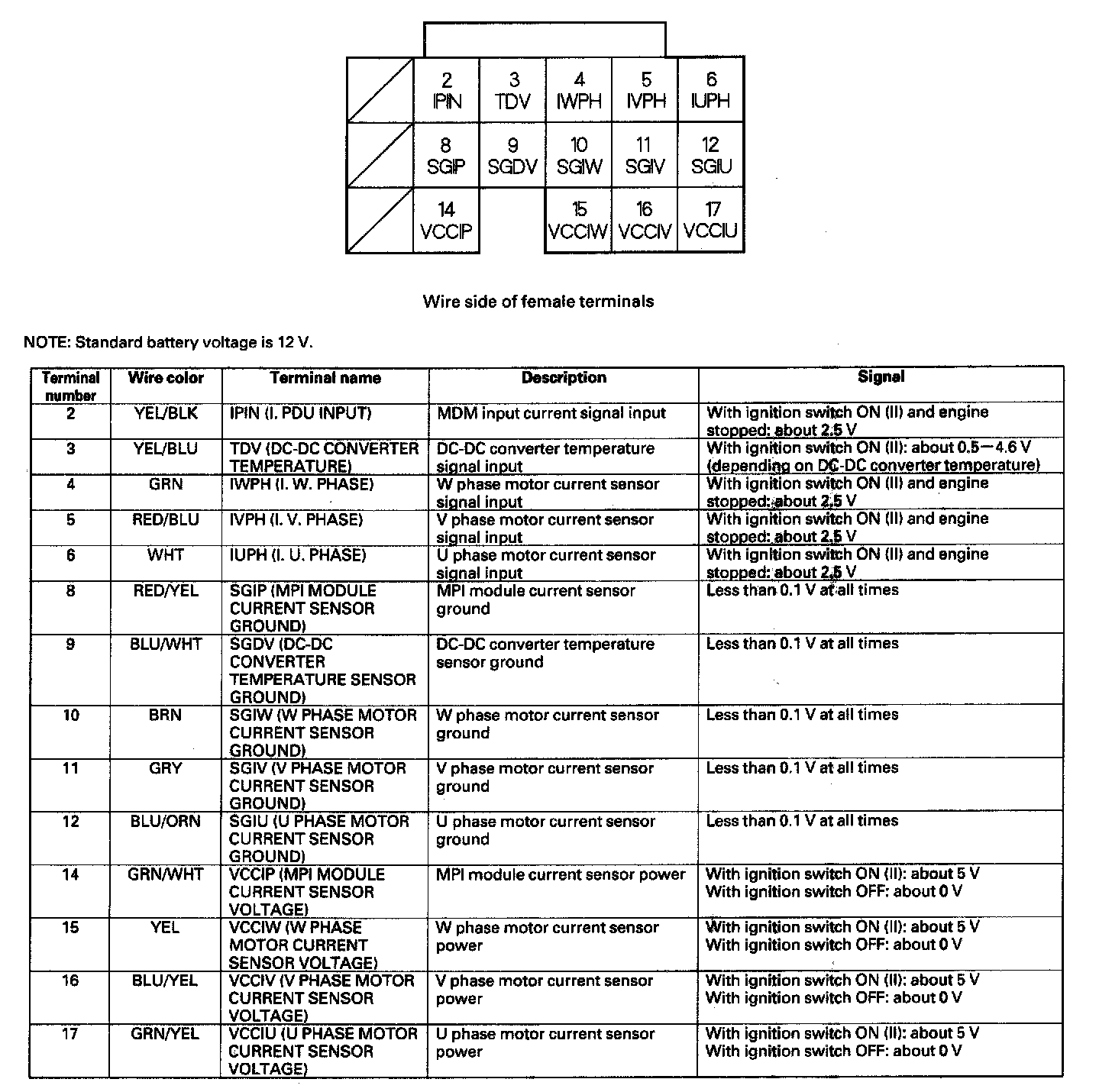

MCM Inputs and Outputs at Connector C (17P)

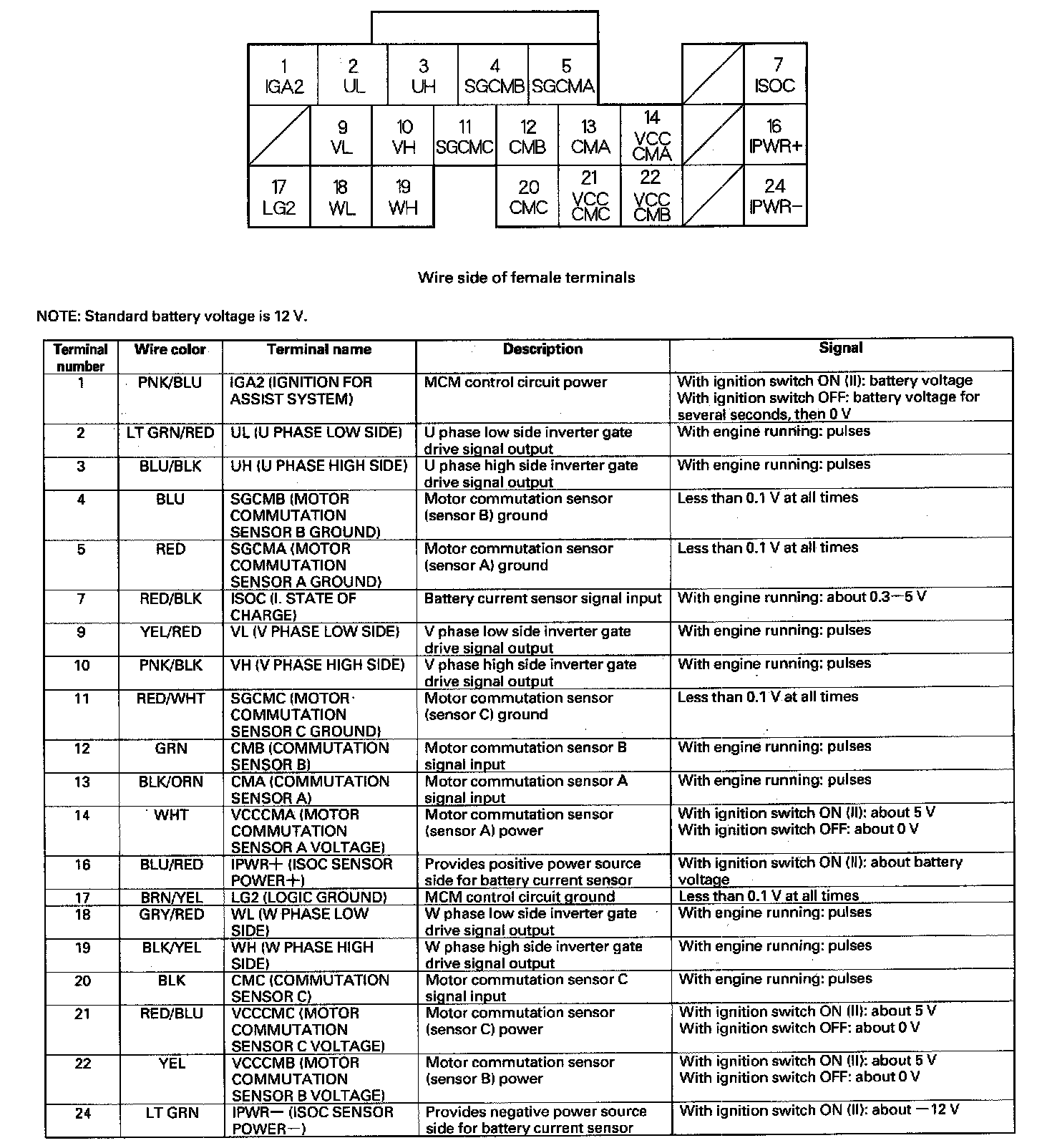

MCM Inputs and Outputs at Connector E (22P)





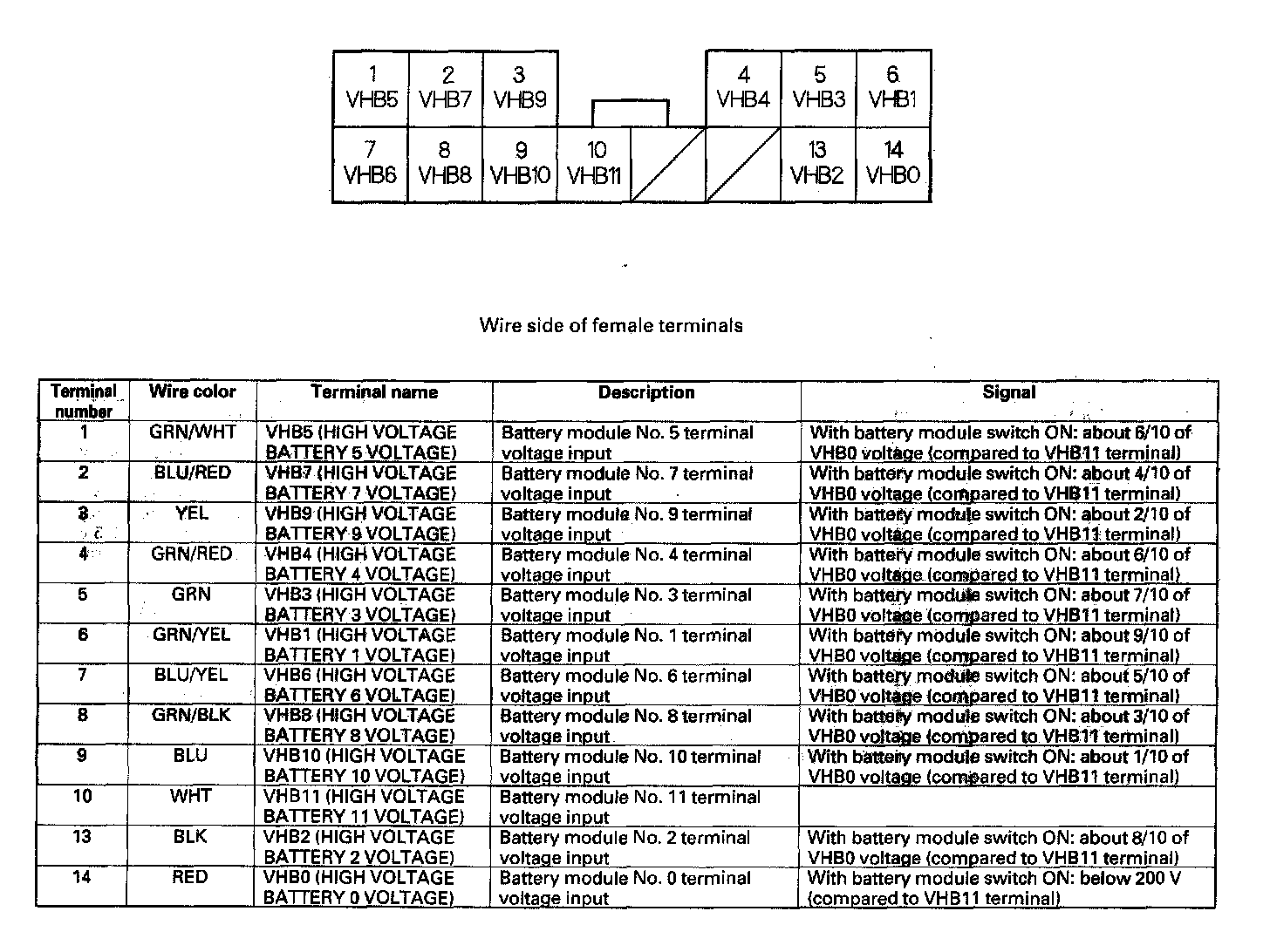

MCM Inputs and Outputs at Connector F (14P)
