Power Control System: Locations

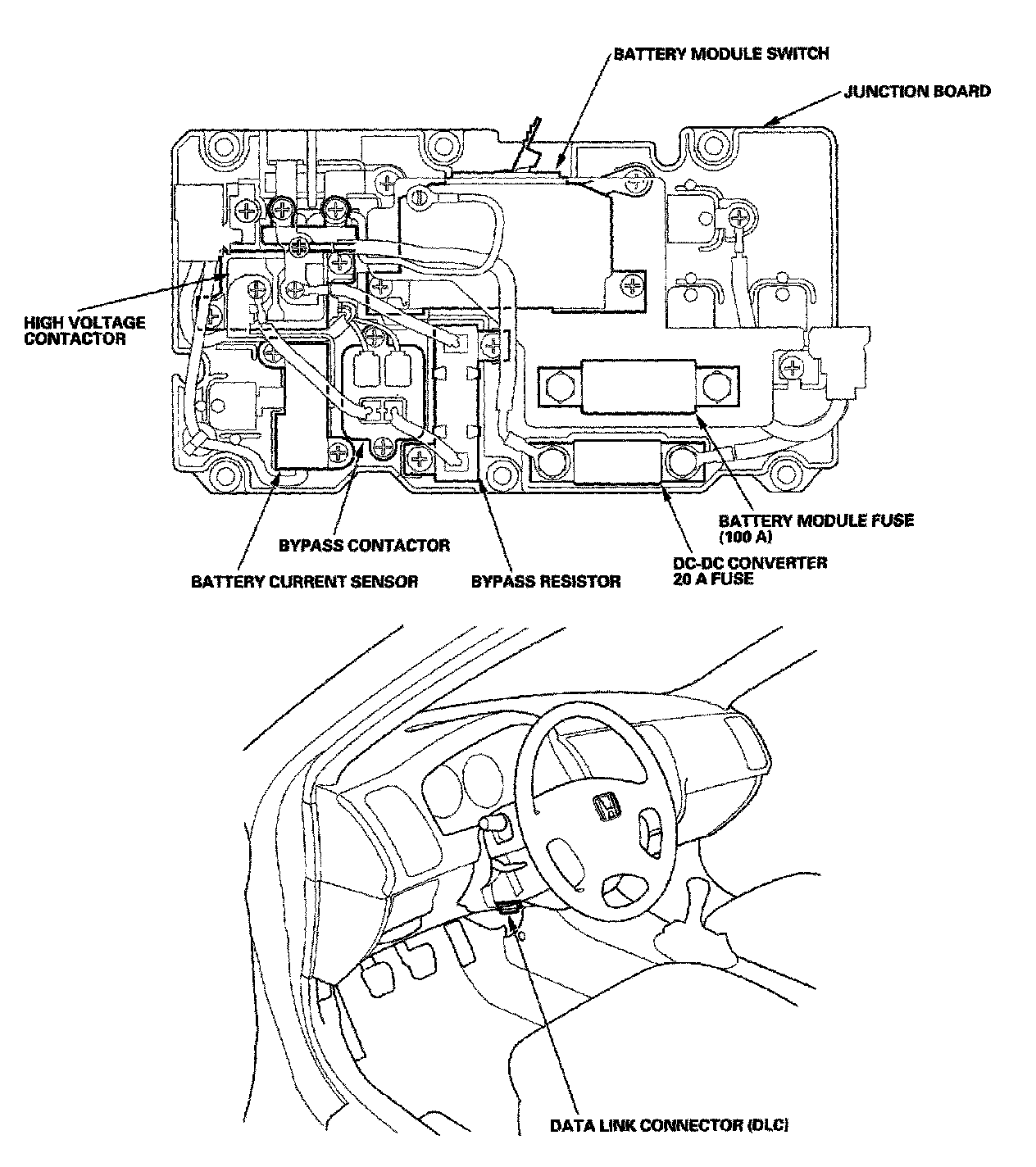

Component Location - Part 1:

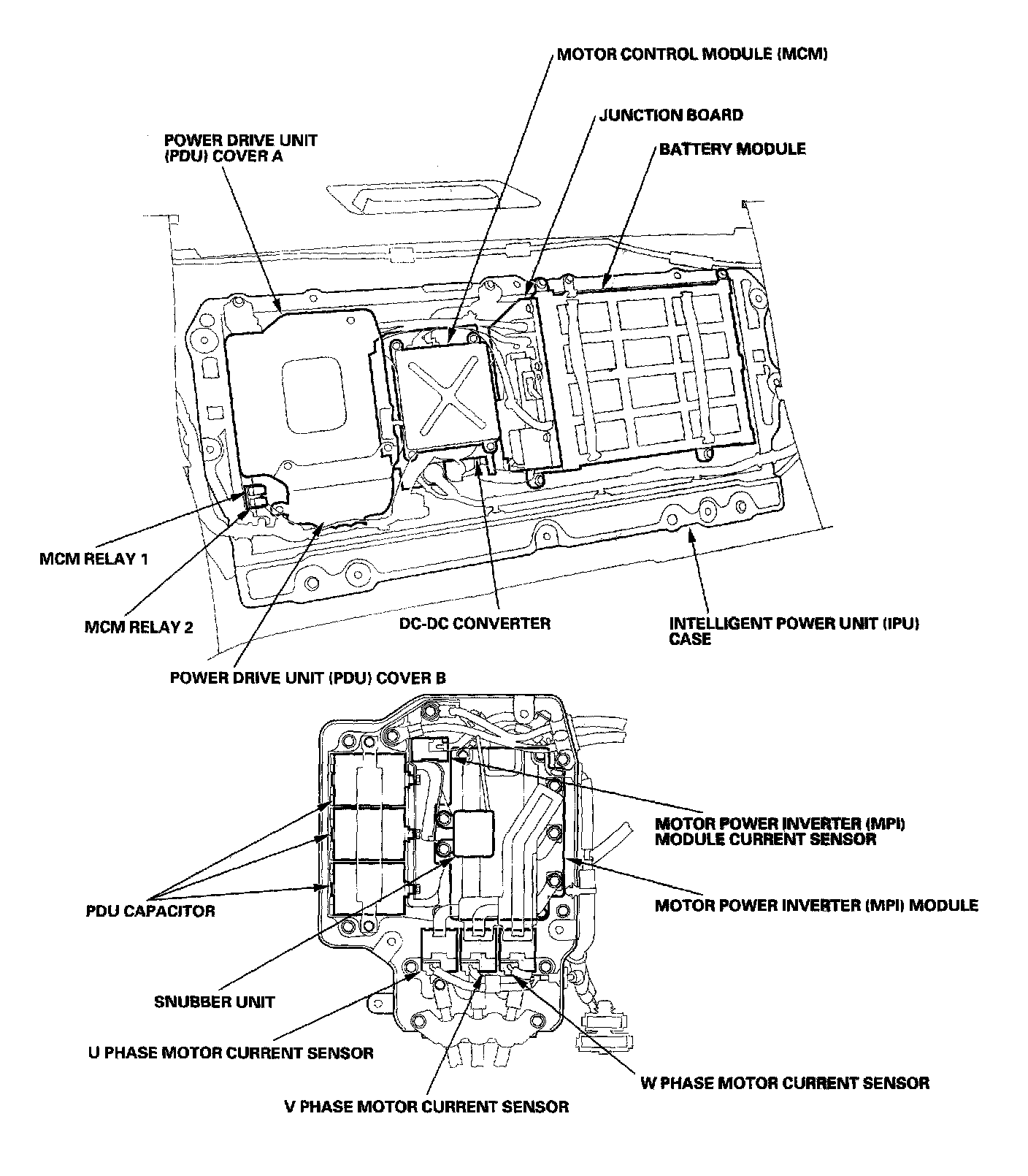

Component Location - Part 2:



Component Location - Part 3:
