Torque Specifications

Flex Plate





Attach the flywheel to the drive plate with six bolts. Rotate the crankshaft pulley to tighten the bolts to 1/2 of the specified torque, then to the final torque, in a criss-cross pattern. After tightening the last bolt, check that the crankshaft rotates freely.

Transmission Pan

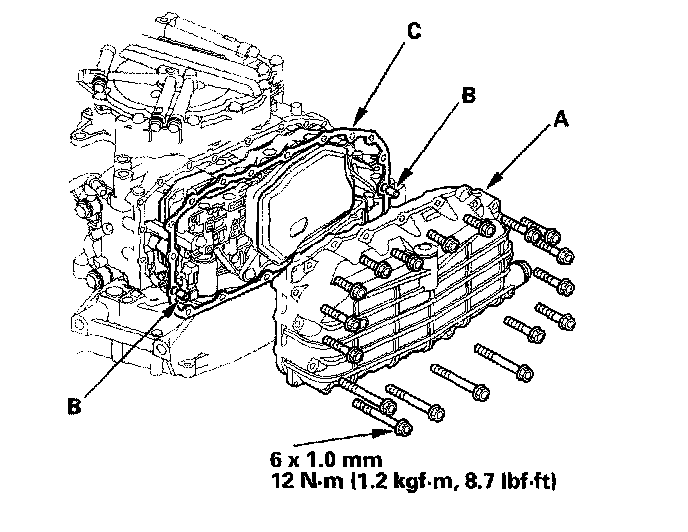

Install the ATF pan (A) with the two dowel pins (B) and the new gasket (C).

Overhaul specs
Refer to Overhaul. Fluid Pan
