Control Module: Locations

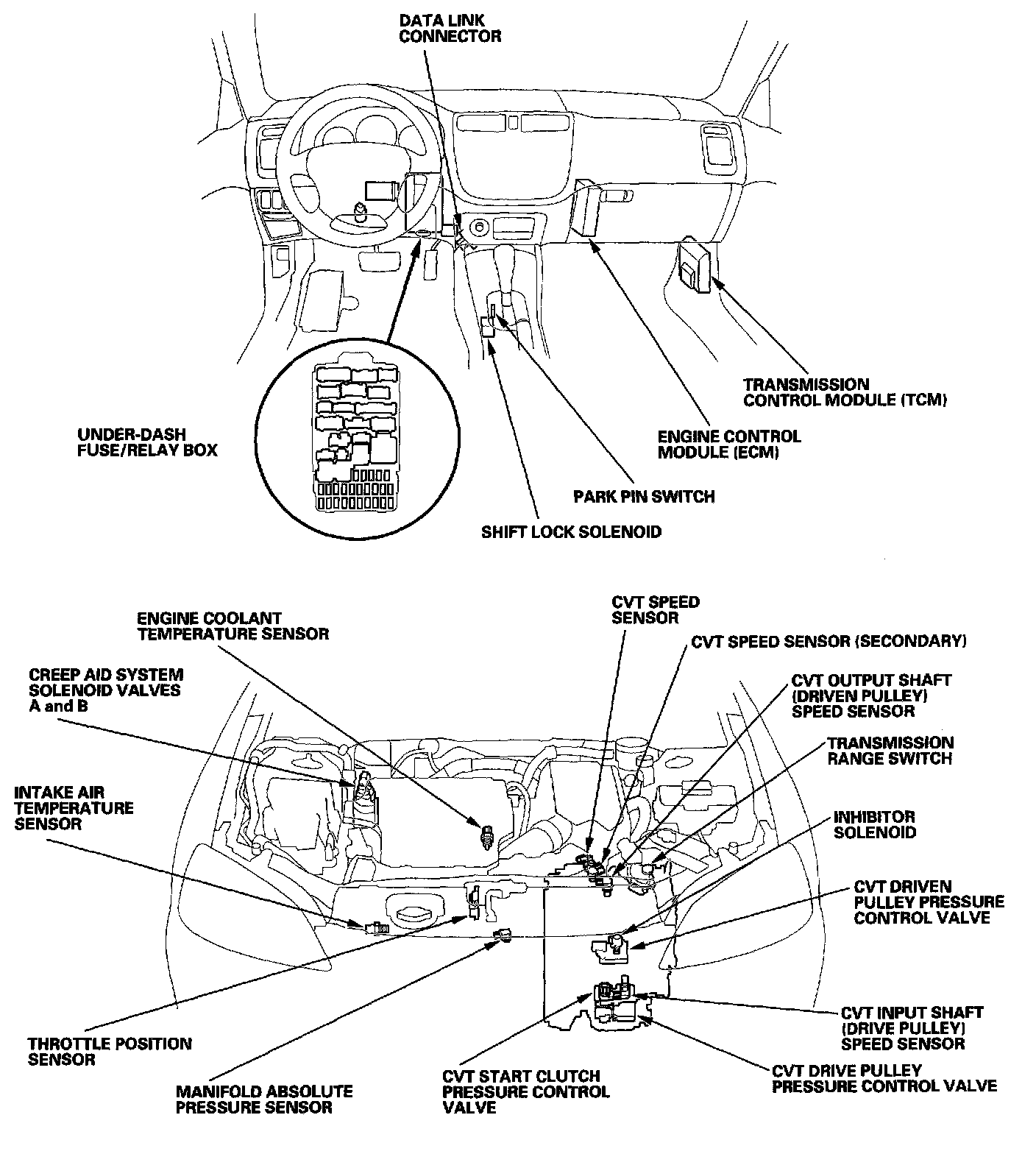

Component Location Index:

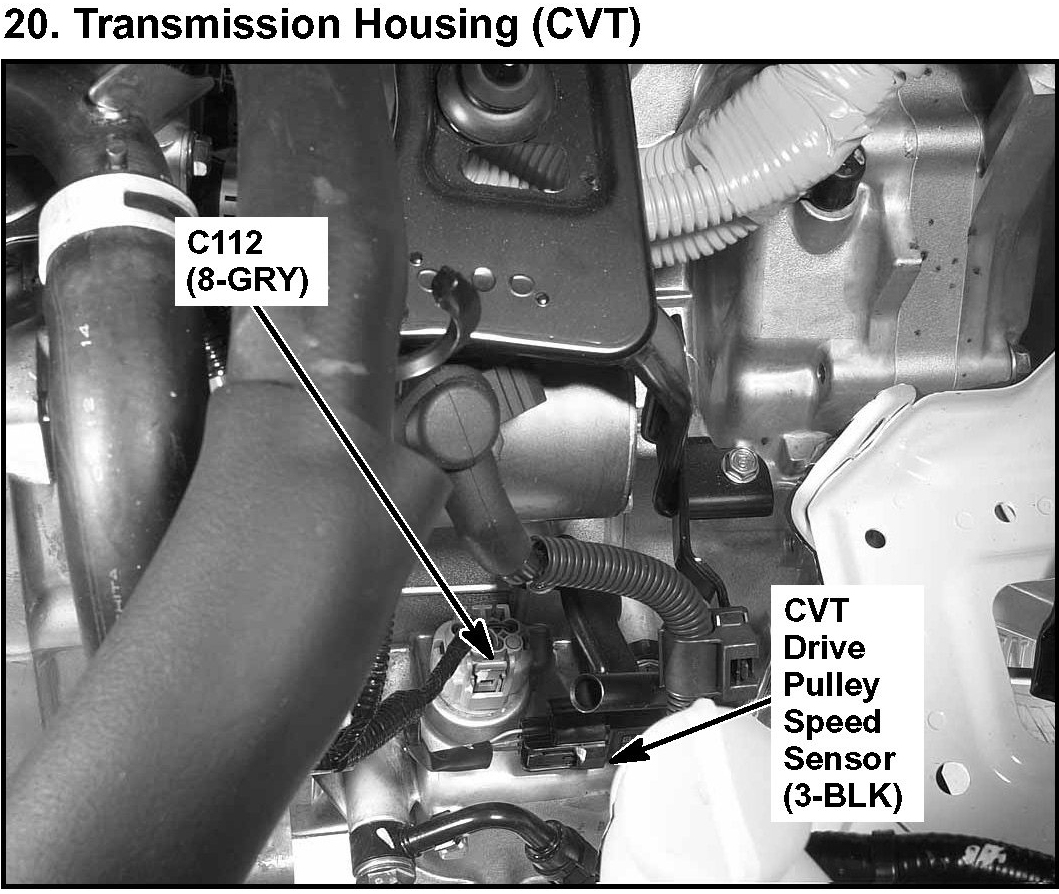

20. Transmission Housing (CVT):

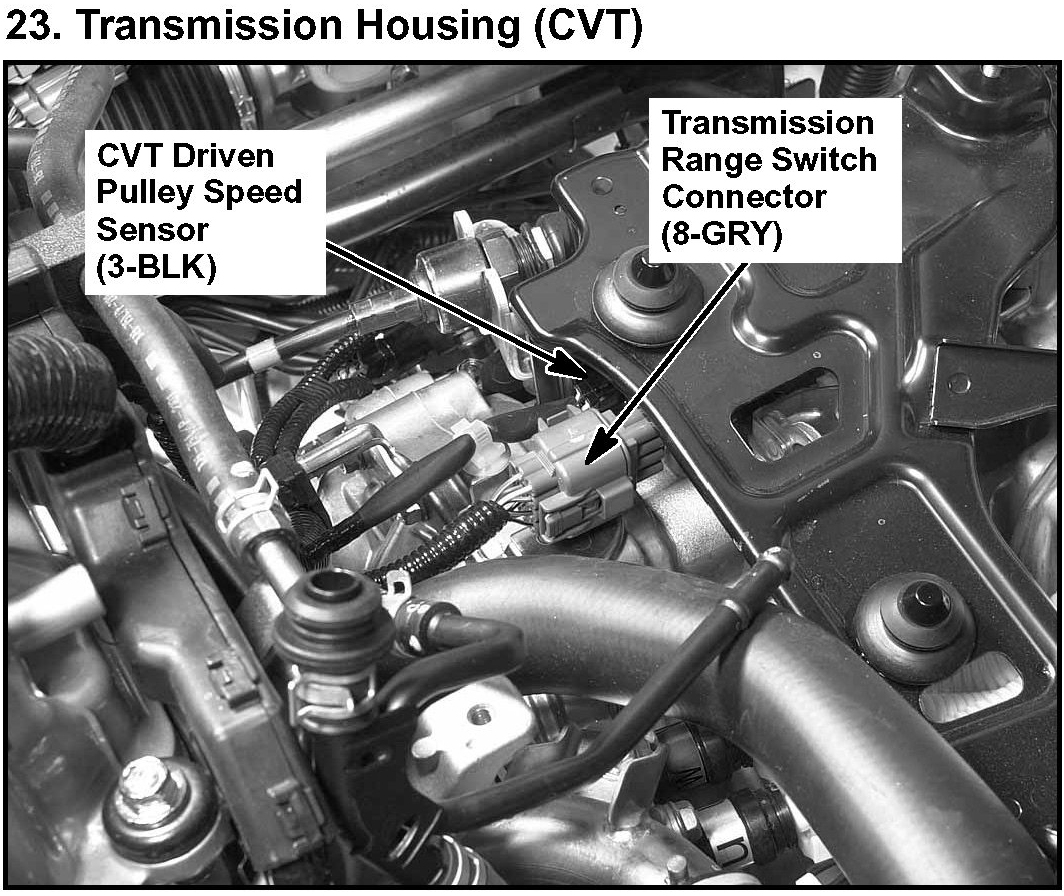

23. Transmission Housing (CVT):

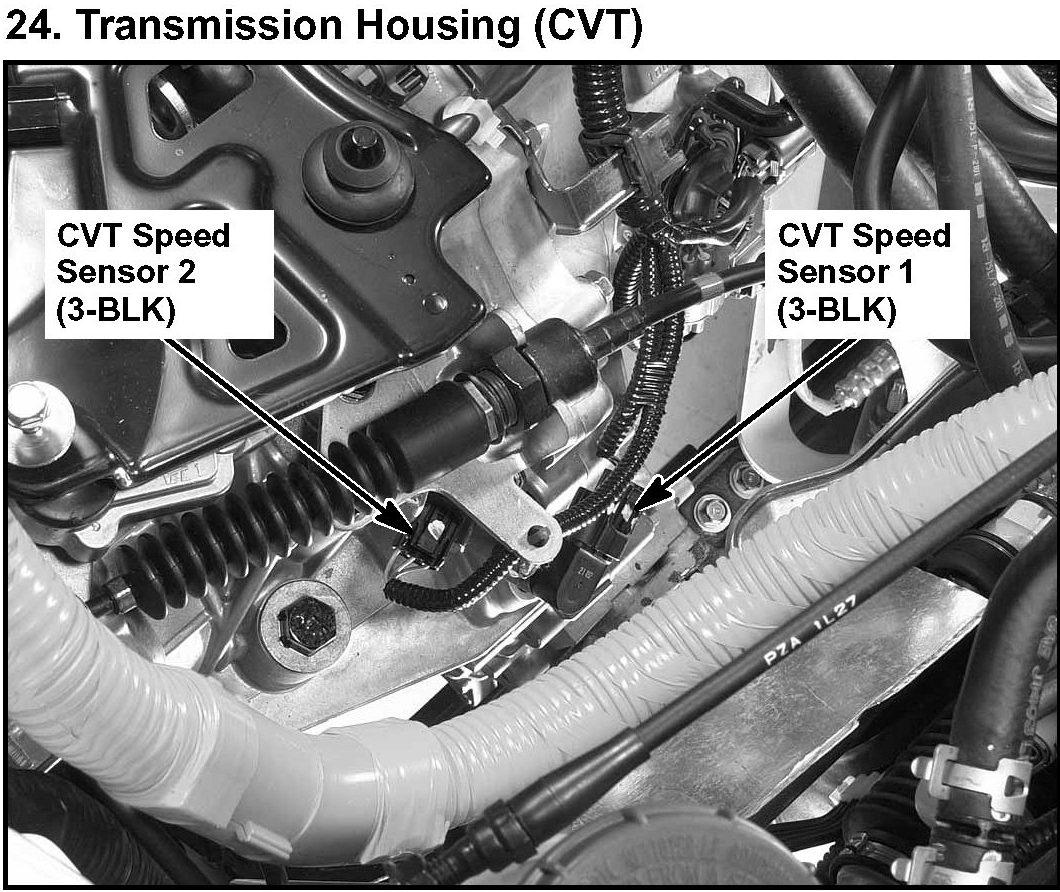

24. Transmission Housing (CVT):
