Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

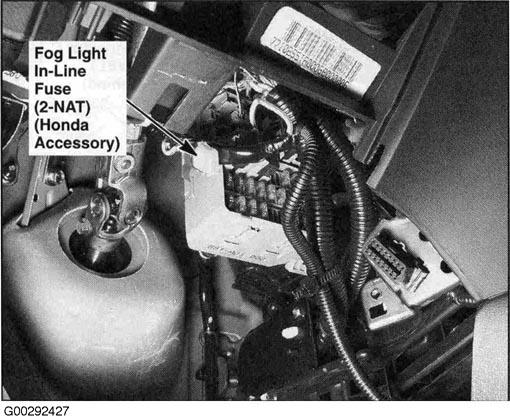

Fog Light In-Line Fuse Under left side of dash. See Figure .

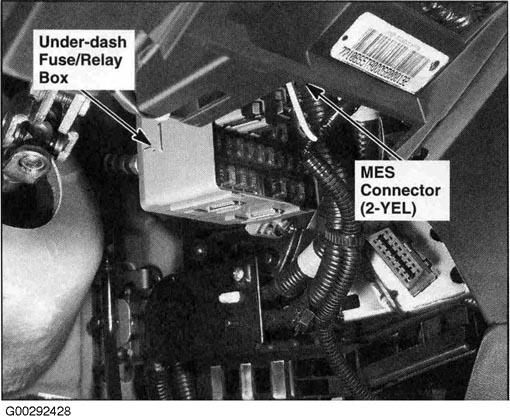

Under-Dash Fuse/Relay Box Under left side of dash. See Figure .

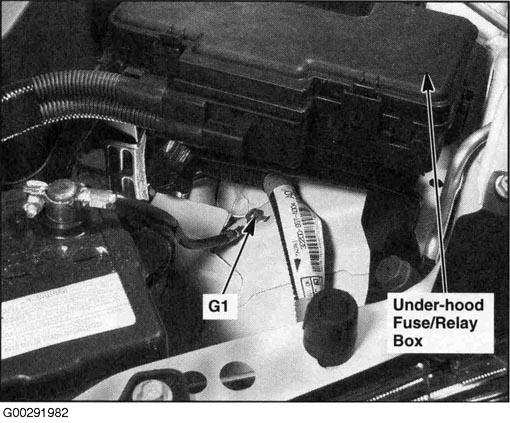

Under-Hood Fuse/Relay Box Left side of engine compartment. See Figure .
