Component Replacement

Blower Unit Component Replacement




Note these items when overhauling the blower unit:

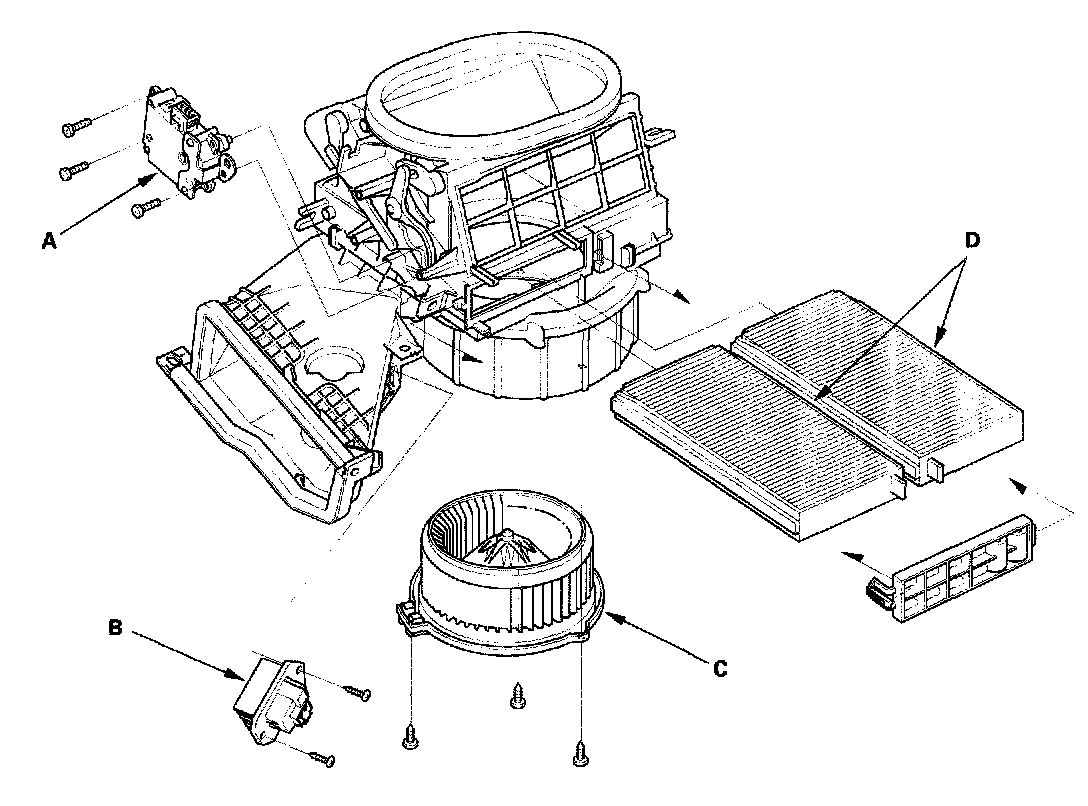

- The recirculation control motor (A), the power transistor (B), the blower motor (C), and the dust and pollen filters (with A/C) (D) can be replaced without removing the blower unit.
- Before reassembly, make sure that the recirculation control linkage and doors move smoothly.
- After reassembly, make sure the recirculation control motor runs smoothly.
