Rear Window Replacement

NOTE:
  • Put on gloves to protect your hands.
  • Wear eye protection when removing the glass with piano wire.
  • Use seat covers to avoid damaging any surfaces.
  • Do not damage the rear window defogger grid lines and terminals.
  1. Remove these items:
  2. Disconnect the rear window defogger connectors (A).

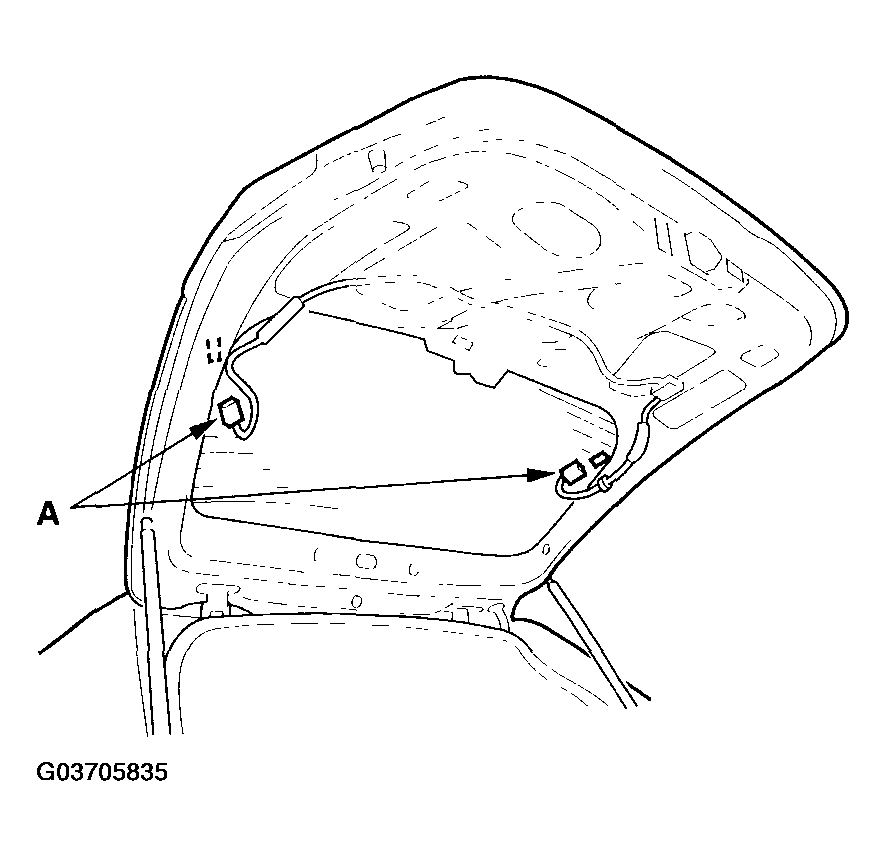

    Fig 1: Disconnecting Rear Window Defogger Connectors
    G03705835Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. If the old rear window is to be reinstalled, make alignment marks across the glass and body with a grease pencil.
  4. Apply protective tape along the inside and outside edges of the tailgate. Using an awl, make a hole through the adhesive from inside the vehicle at the corner portion of the rear window. Push the piano wire through the hole, and wrap each end around a piece of wood.
  5. With a helper on the outside, pull the piano wire (A) back and forth in a sawing motion. Hold the piano wire as close to the rear window (B) as possible to prevent damage to the tailgate, and carefully cut through the adhesive (C) around the entire rear window.

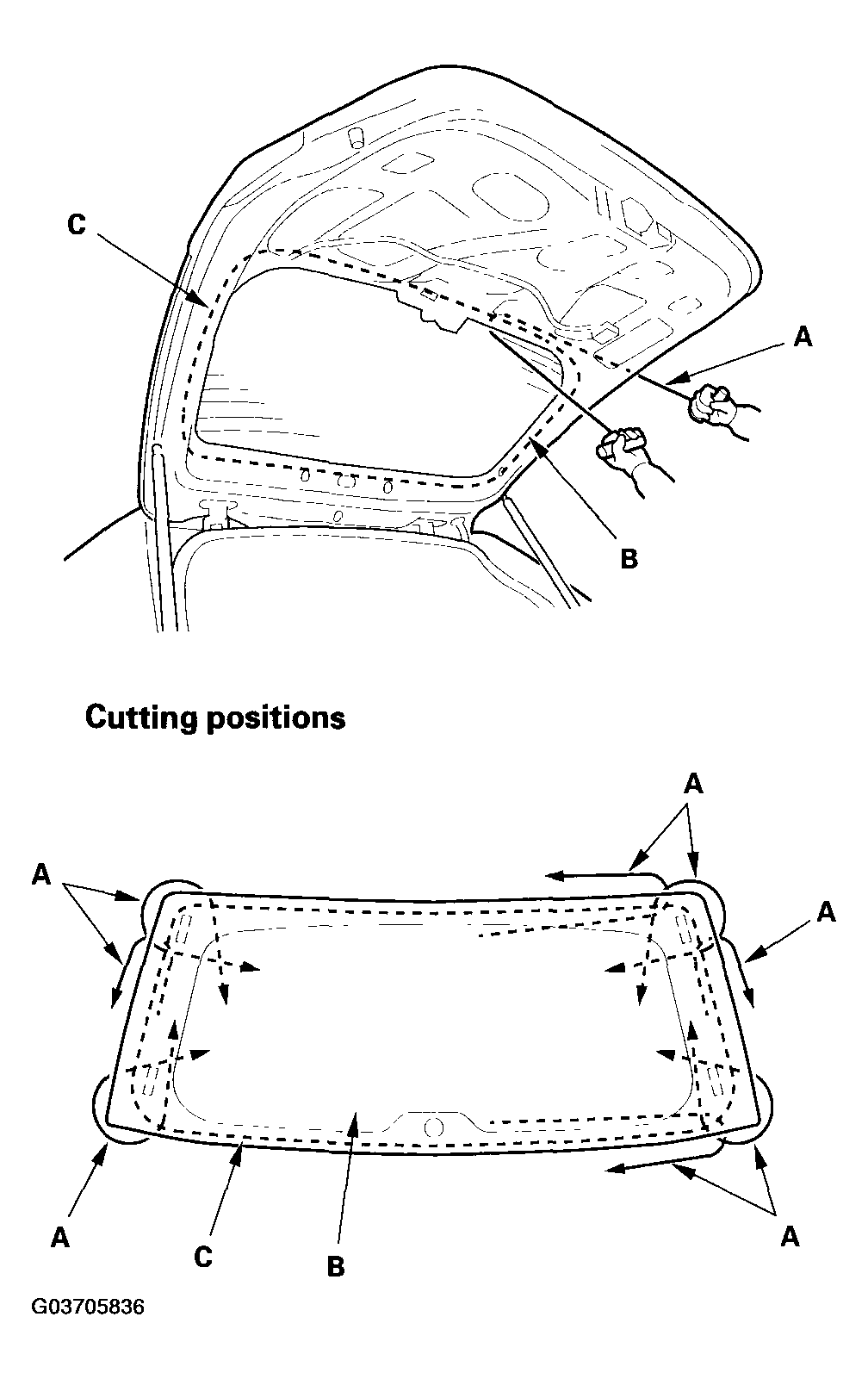

    Fig 2: Pulling Piano Wire Back And Forth In Sawing Motion
    G03705836Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Carefully remove the rear window.
  7. With a putty knife, scrape the old adhesive smooth to a thickness of about 2 mm (0.08 in.) on the bonding surface around the entire rear window opening flange:
    • Do not scrape down to the painted surface of the body; damaged paint will interfere with proper bonding.
    • Remove the fasteners from the tailgate.
  8. Clean the tailgate bonding surface with a sponge dampened in alcohol. After cleaning, keep oil, grease and water from getting on the surface.
  9. If the old rear window is to be reinstalled, use a putty knife to scrape off all of the old adhesive, the fasteners and the rubber dams from the rear window. Clean the inside face and the edge of the rear window with alcohol where new adhesive is to be applied. Make sure the bonding surface is kept free of water, oil and grease.
  10. Attach the upper rubber dam (A), lower rubber dam (B), and fasteners (C, D) with adhesive tape to the inside face of the rear window (E) as shown in Fig 3 . Before installing the upper rubber dams, apply primer to the area where the adhesive tapes will be applied to the inside face of the rear window:
    • Be sure the fasteners, and upper and lower rubber dams line up with alignment marks (F).
    • If necessary, cut the excess side molding along the lower edge of the rear window.
    • Be careful not to touch the rear window where adhesive will be applied.

    Rubber dams adhesive tape:

    • Thickness 0.16 mm (0.0063 in.)
    • Width 3.5 mm (0.14 in.)

    Fasteners adhesive tape:

    • Thickness 0.6 mm (0.024 in.)
    • Width 7.5 mm (0.3 in.)

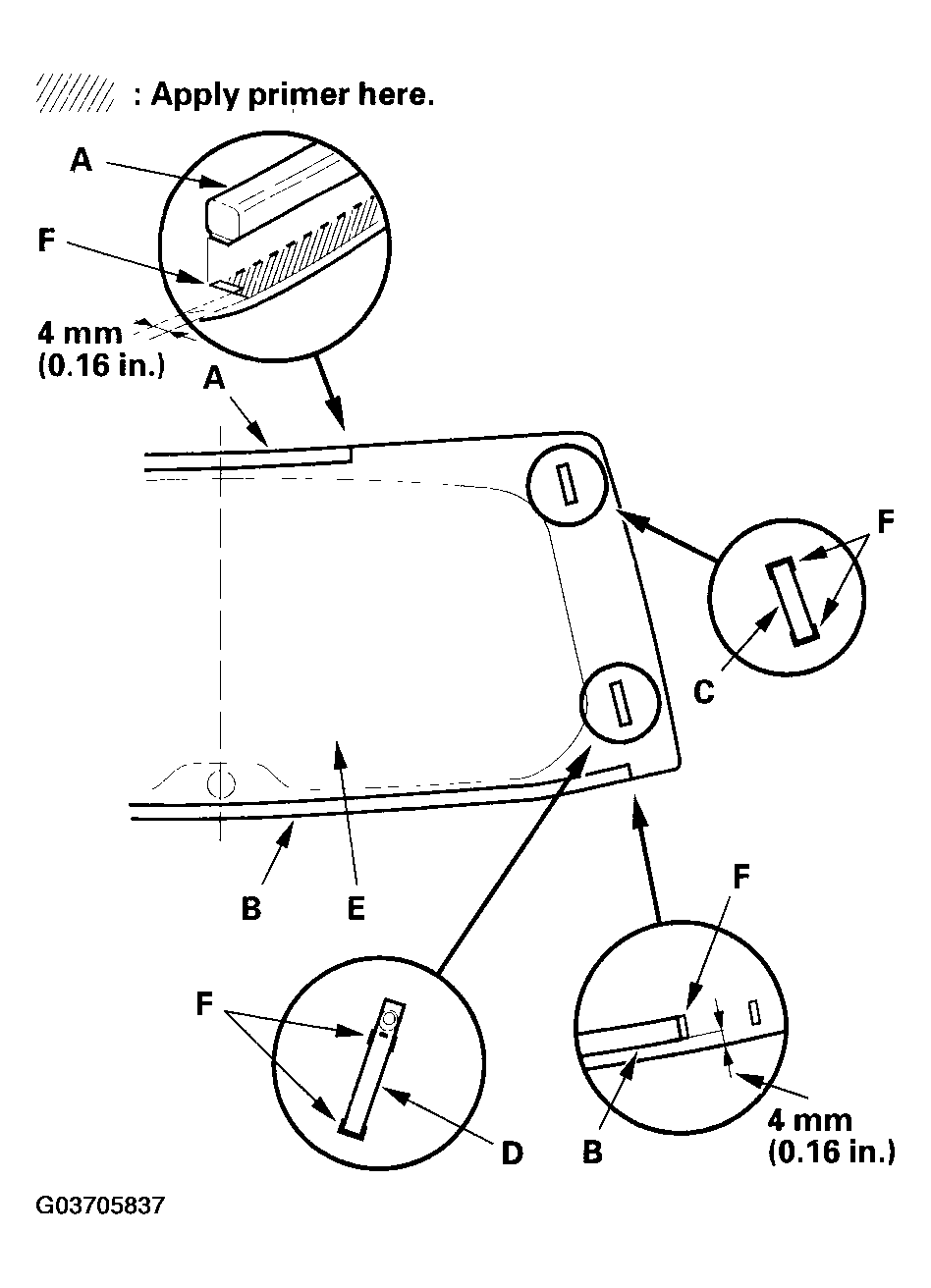

    Fig 3: Attaching Upper & Lower Rubber Dam And Fasteners With Adhesive Tape To Inside Face Of Rear Window
    G03705837Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Attach the fasteners (A, B) with adhesive tape to the tailgate as shown in Fig 4 .

    Fasteners adhesive tape:

    • Thickness 0.6 mm (0.024 in.)
    • Width 7.5 mm (0.3 in.)

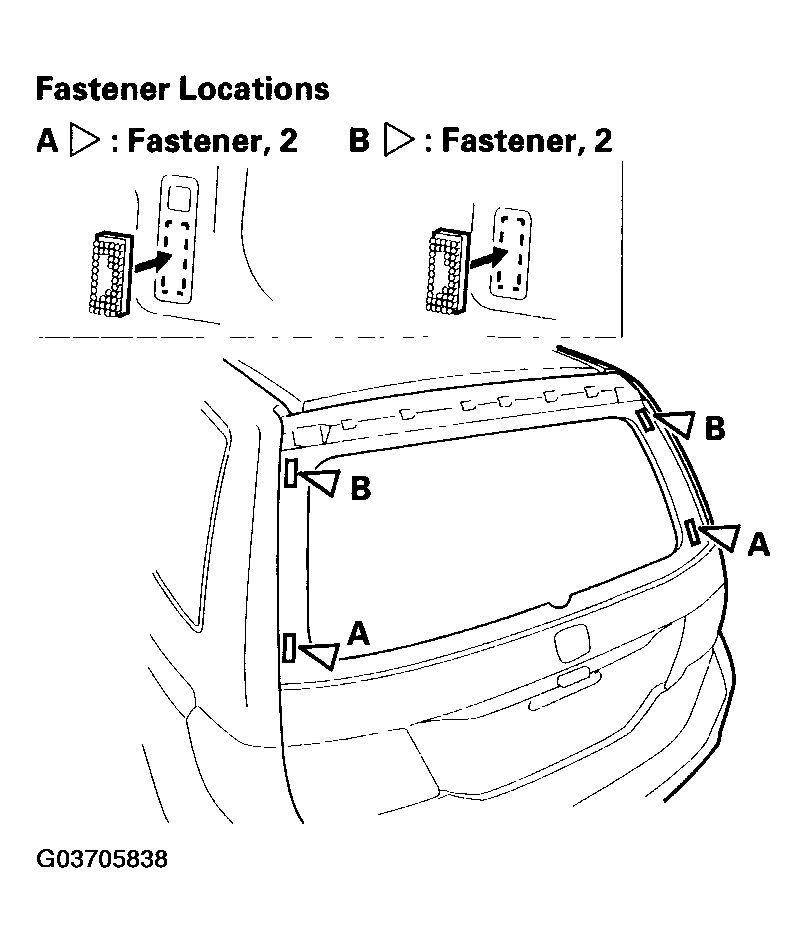

    Fig 4: Attaching Fasteners With Adhesive Tape To Tailgate
    G03705838Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Set the rear window (A) in the opening, and center it. Make alignment marks (B) across the rear window and body with a grease pencil at the four points shown in Fig 5 . Be careful not to touch the rear window where adhesive will be applied.
    Fig 5: Making Alignment Marks Across Rear Window And Body With Grease Pencil At Four Points
    G03705839Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. With a sponge, apply a light coat of glass primer to the rear window (A) along the edge of the upper rubber dam (B) and lower rubber dam (C) as shown in Fig 6 , then lightly wipe it off with gauze or cheesecloth:
    • With the printed dots (D) on the rear window as a guide, apply the glass primer to both side portions of the rear window.
    • Do not apply body primer to the rear window, and do not get body and glass primer sponges mixed up.
    • Never touch the primed surfaces with your hands. If you do, the adhesive may not bond to the rear window properly, causing a leak after the rear window is installed.
    • Keep water, dust, and abrasive materials away from the primed surface.

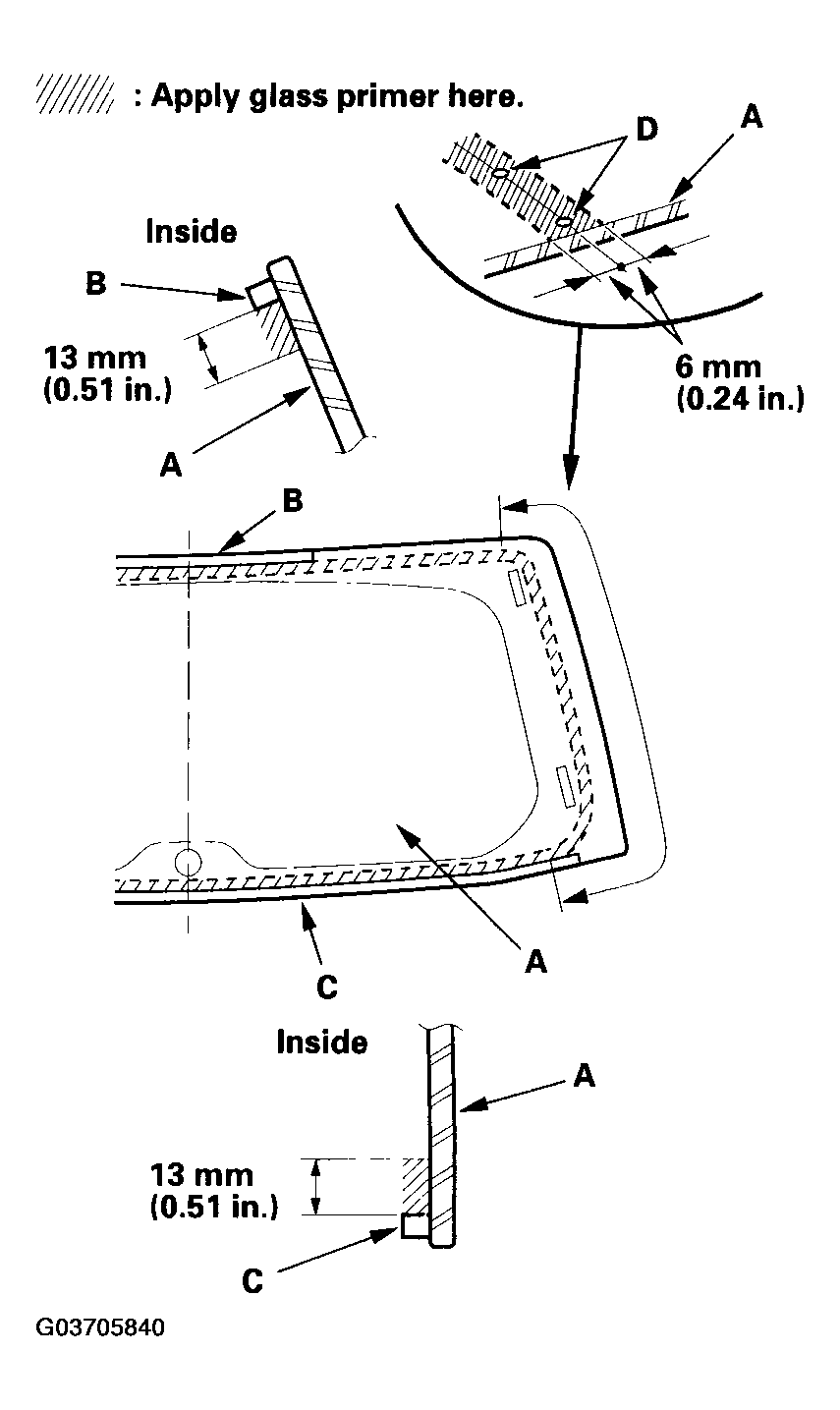

    Fig 6: Applying Glass Primer to Rear Window Along Edge Of Upper & Lower Rubber Dam
    G03705840Courtesy of AMERICAN HONDA MOTOR CO., INC.
  14. With a sponge, carefully apply a light coat of body primer to any exposed paint around the flange where new adhesive will be applied. Let the body primer dry for at least 10 minutes:
    • Do NOT apply body primer to any remaining original adhesive on the flange.
    • Be careful not to mix up the body and glass primer sponges.
    • Never touch the primed surfaces with your hands.

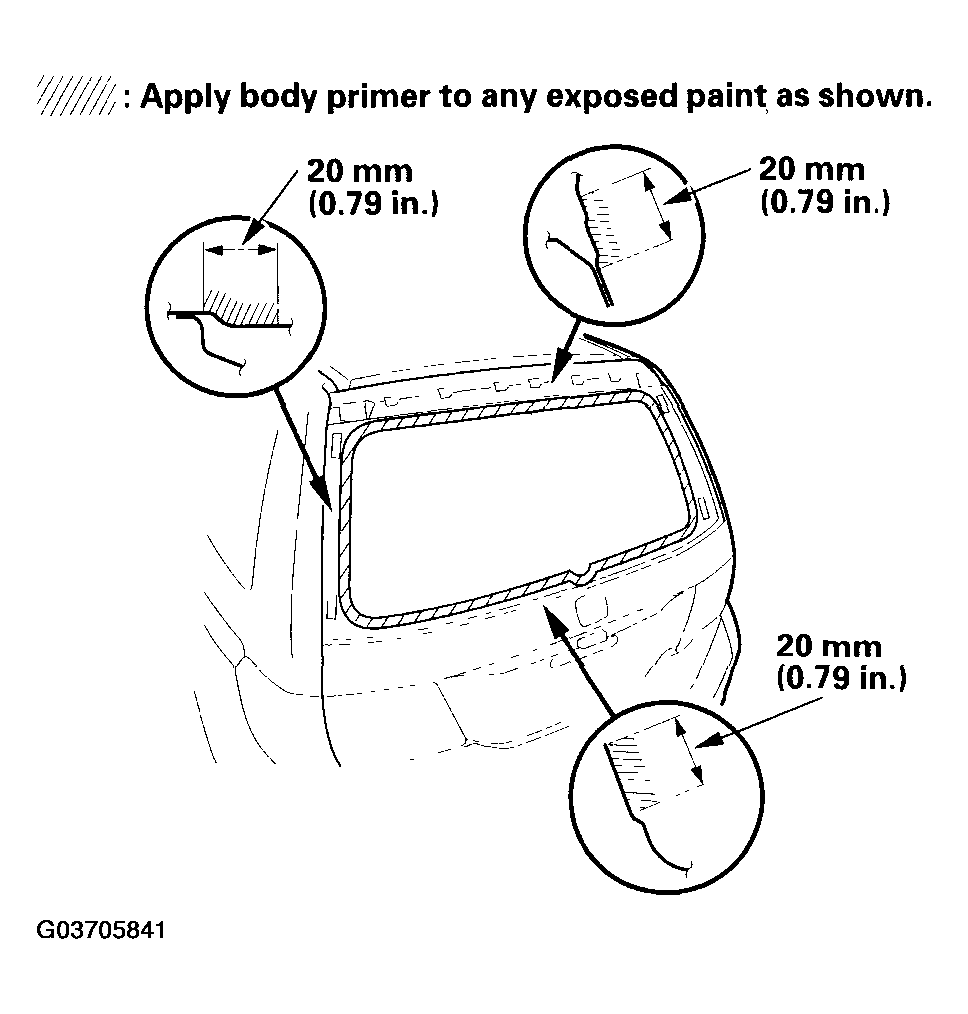

    Fig 7: Applying Body Primer To Any Exposed Paint Around Flange
    G03705841Courtesy of AMERICAN HONDA MOTOR CO., INC.
  15. Cut a "V" in the end of the adhesive cartridge nozzle (A) as shown in Fig 8 .
    Fig 8: Cutting "V" At End Of Adhesive Cartridge Nozzle
    G03705842Courtesy of AMERICAN HONDA MOTOR CO., INC.
  16. Put the cartridge in a caulking gun, and run a bead of adhesive (A) on the rear window (B) around the edge of the upper rubber dam (C) and lower rubber dam (D) as shown in Fig 9 .

    Apply the adhesive within 30 minutes after applying the glass primer. Make a slightly thicker bead at each corner.

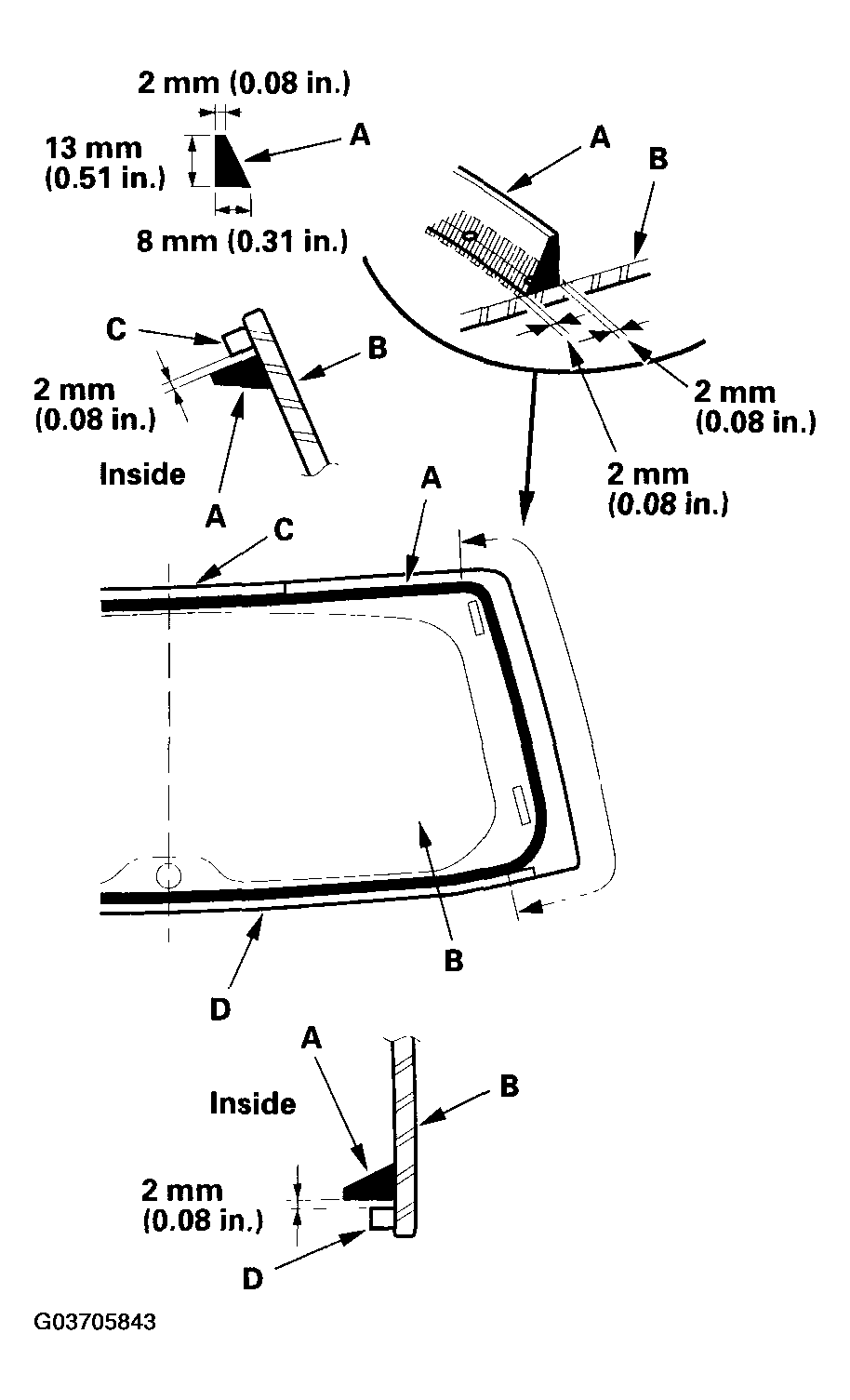

    Fig 9: Running Bead Of Adhesive On Rear Window Around Edge Of Upper And Lower Dam
    G03705843Courtesy of AMERICAN HONDA MOTOR CO., INC.
  17. Use suction cups to hold the rear window over the opening, align it with the alignment marks you made in step  12 , and set it down on the adhesive. Lightly push on the rear window until its edges are fully seated on the adhesive all the way around. Do not open or close the doors until the adhesive is dry.
  18. Scrape or wipe the excess adhesive off with a putty knife or towel. To remove adhesive from a painted surface or the rear window, use a soft shop towel dampened with alcohol.
  19. Let the adhesive dry for at least 1 hour, then spray water over the rear window and check for leaks. Mark the leaking areas, let the rear window dry, then seal with sealant. Let the vehicle sit for at least 4 hours after rear window installation. If the vehicle has to be used within the first 4 hours, it must be driven slowly.
  20. Reinstall all remaining removed parts.
    NOTE: Advise the customer not to do the following things for 2 to 3 days:
    • Slam the doors with all the windows rolled up.
    • Twist the body excessively (such as when going in and out of driveways at an angle or driving over rough, uneven roads).
