Passenger's Window Switch Test/Replacement: Rear

  1. Remove the sliding door panel (see SLIDING DOOR PANEL REMOVAL/INSTALLATION ).
  2. Remove the screw and disconnect the 6P connector (A) from the power window switch (B), then remove the switch assembly from the door panel.

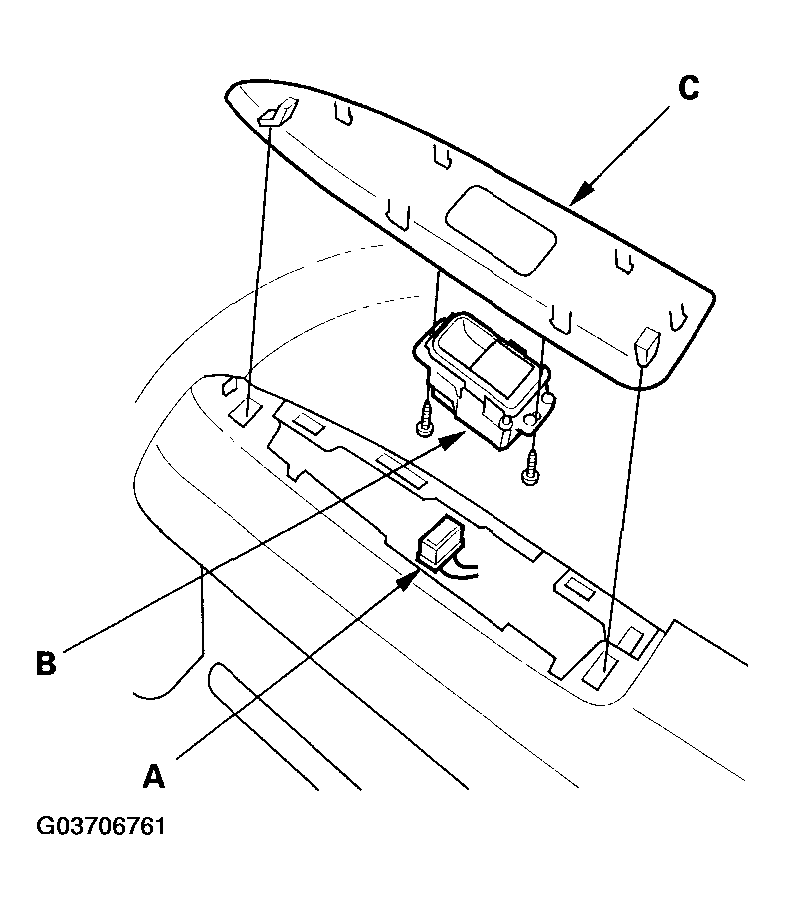

    Fig 1: Disconnecting 6P Connector From Power Window Switch (Rear Passenger's)
    G03706761Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the two mounting screws, then remove the power window switch from the switch panel (C).
  4. Swap the rear power window switch with another known-good switch and test. If the original window switch is faulty; replace it.
  5. Install in the reverse order of removal.
