Exploded View

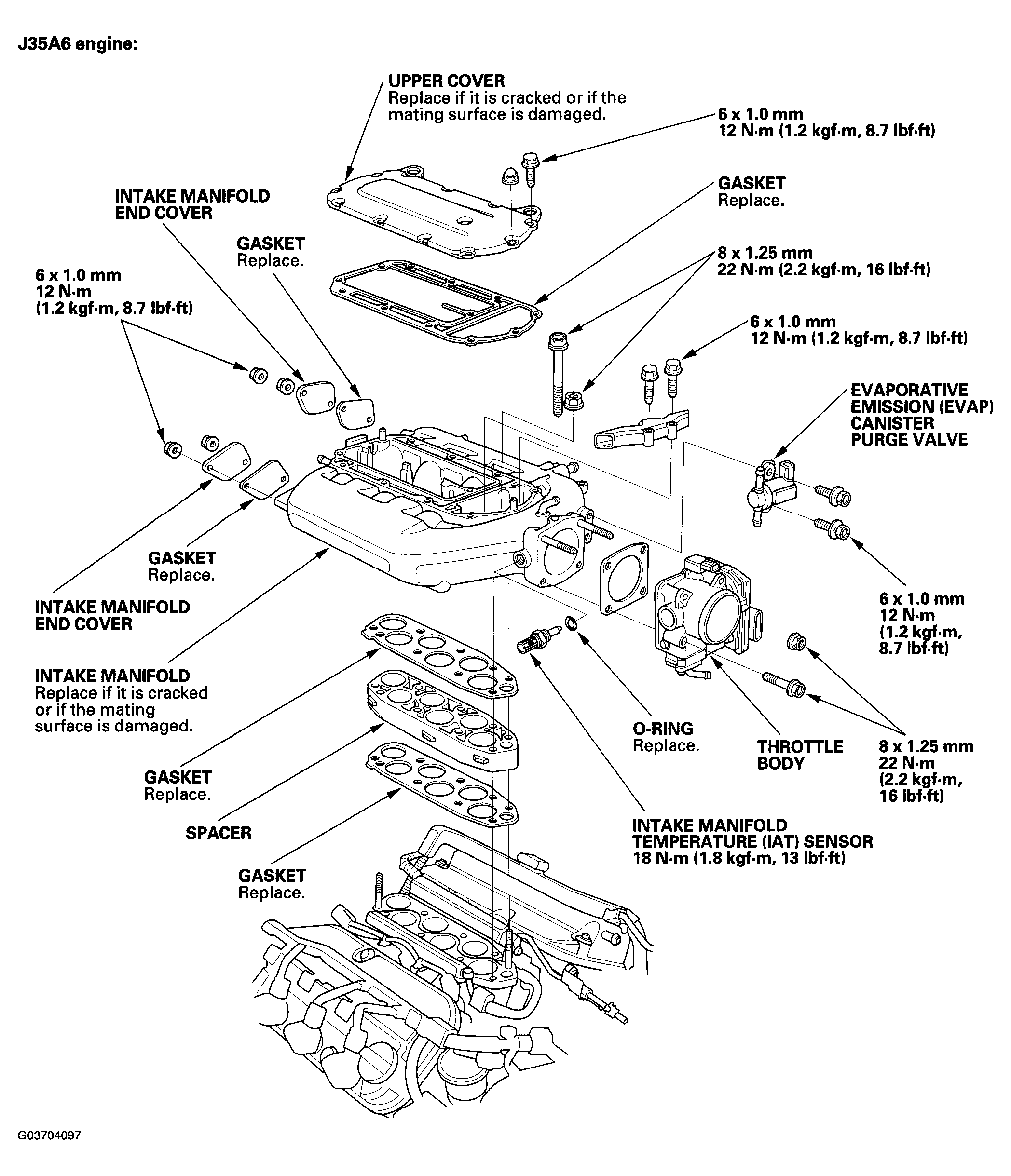

Fig 1: Exploded View Of Intake Manifold With Torque Specifications (J35A6 Engine)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

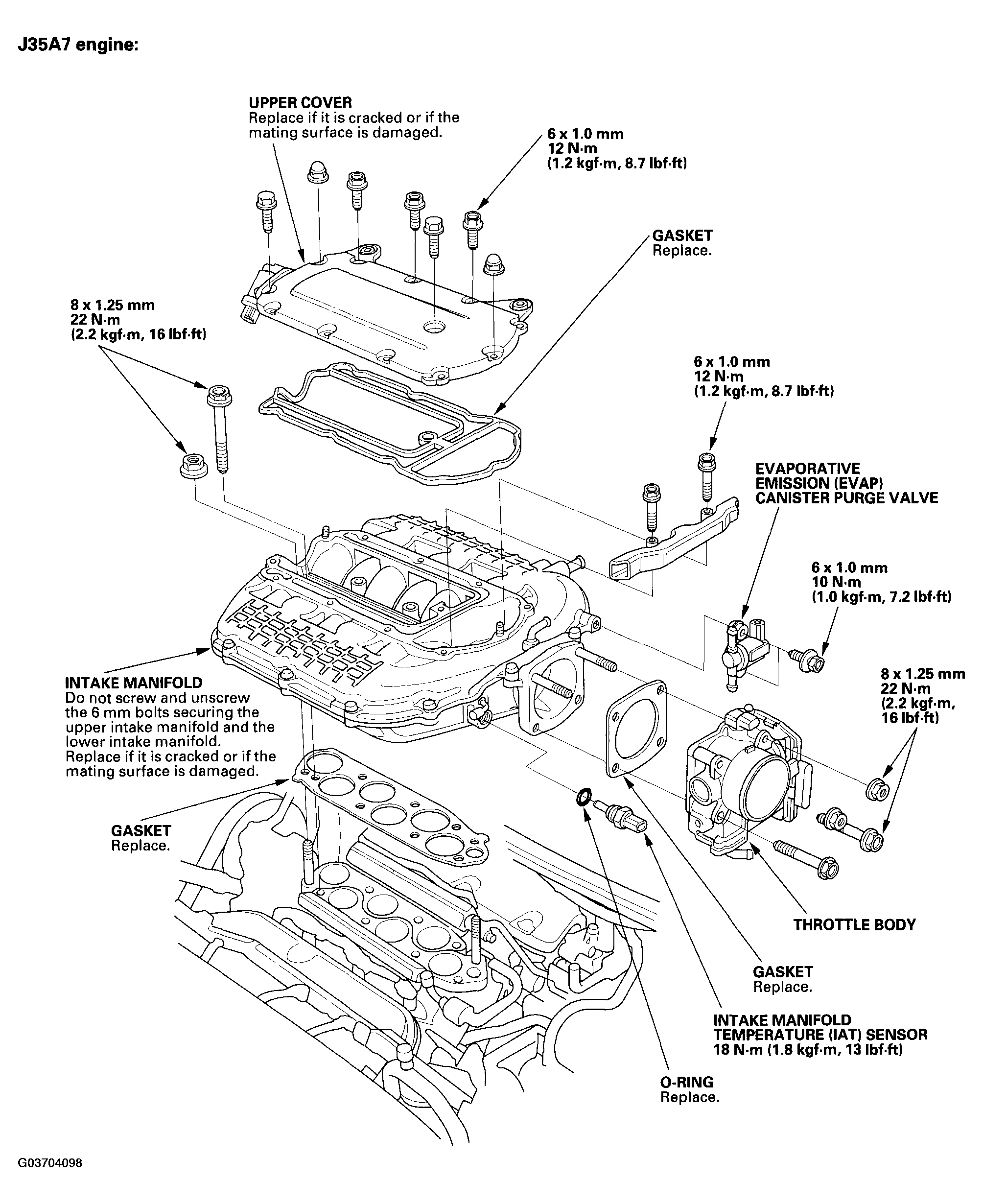

Fig 2: Exploded View Of Intake Manifold With Torque Specifications (J35A7 Engine)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
