Starter Overhaul: Disassembly/Reassembly: Notes

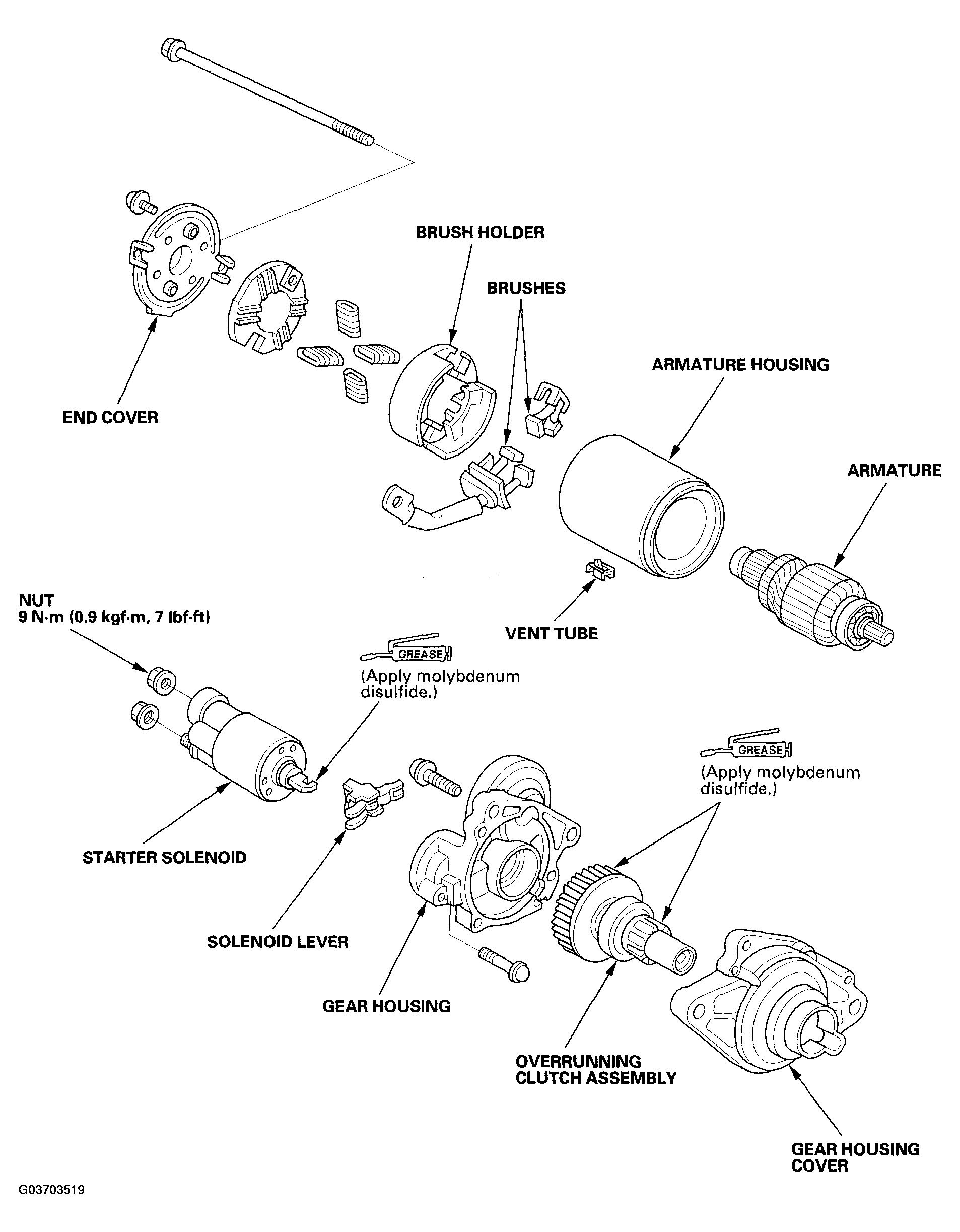

Fig 1: Exploded View Of Starter

G03703519

Courtesy of AMERICAN HONDA MOTOR CO., INC.
