J35A7 engine

  1. Remove the intake manifold cover (see step 1 in REMOVAL ).
  2. Disconnect the IMT actuator 5P connector (A).

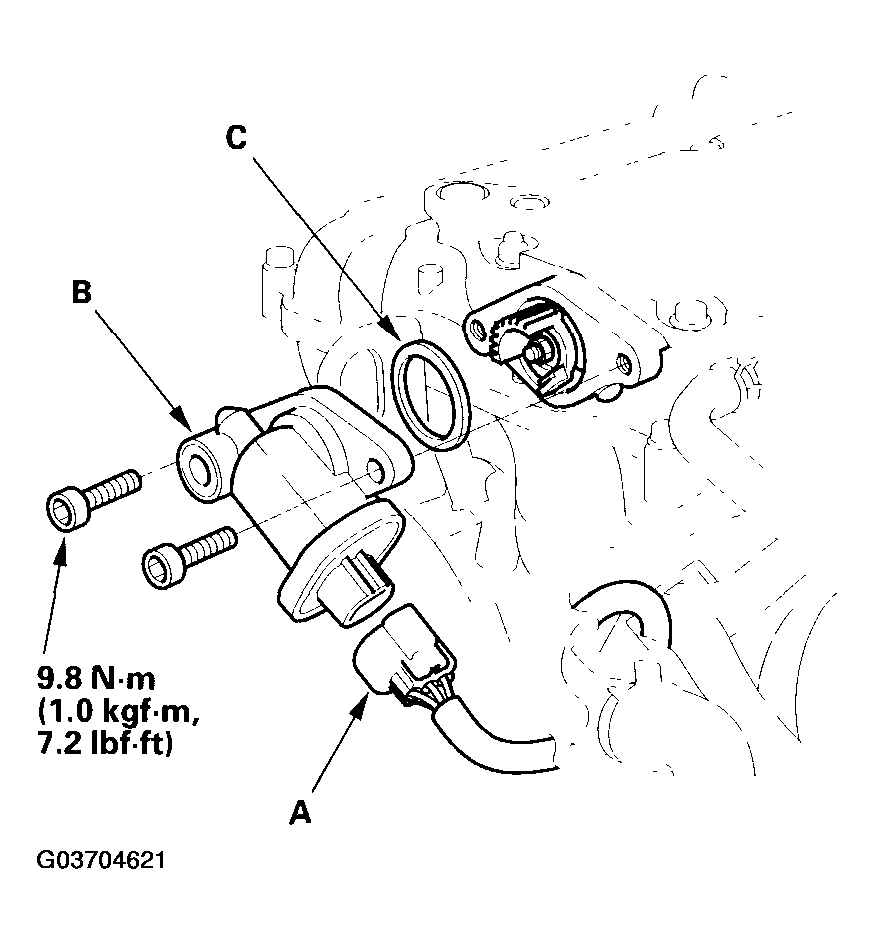

    Fig 1: Removing IMT Actuator 5P Connector
    G03704621Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts and the IMT actuator (B).
  4. Install the actuator in the reverse order of removal with a new O-ring (C).
