Relay Module: Locations

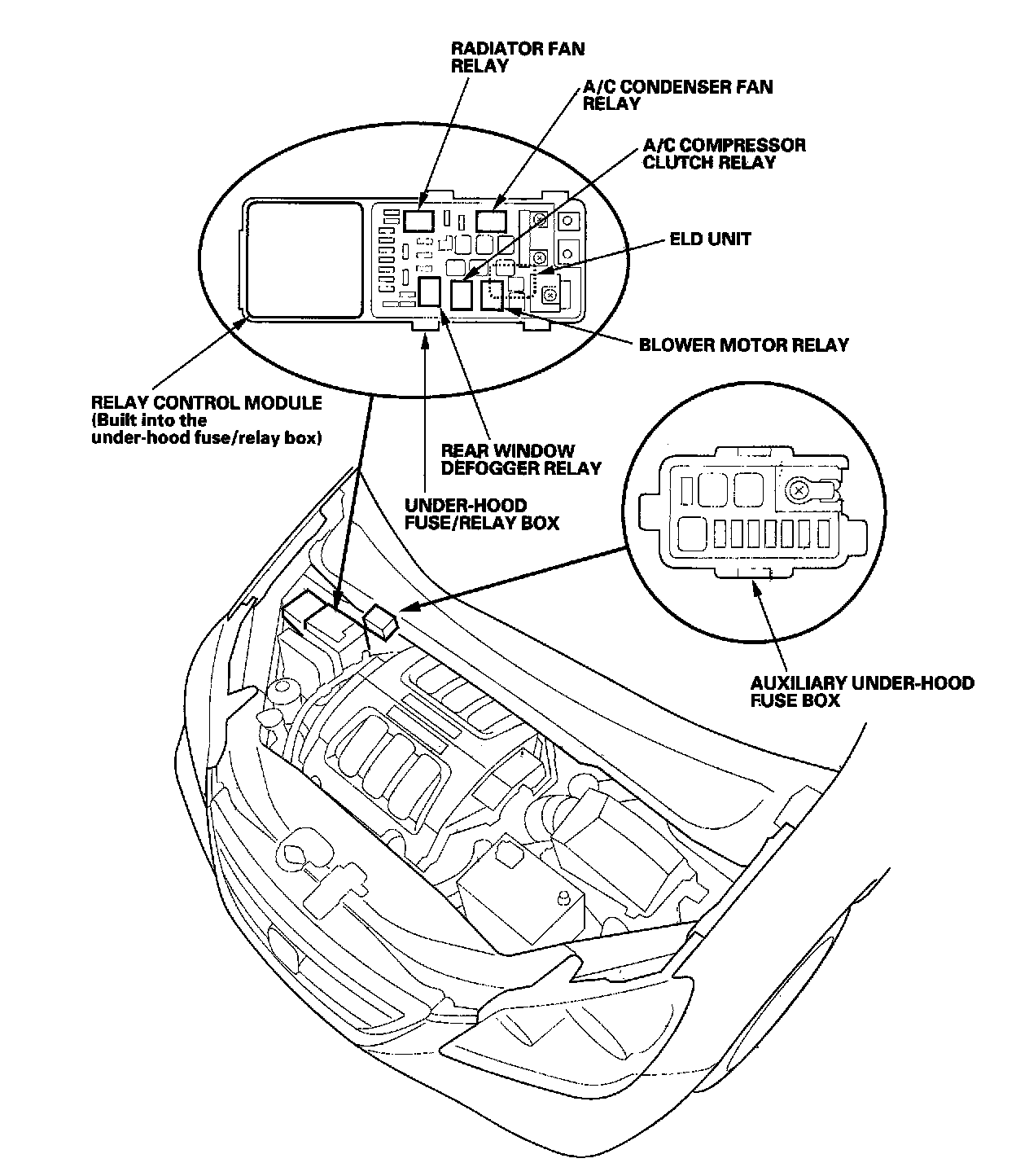

Relay And Control Unit Locations - Engine Compartment Part 1:

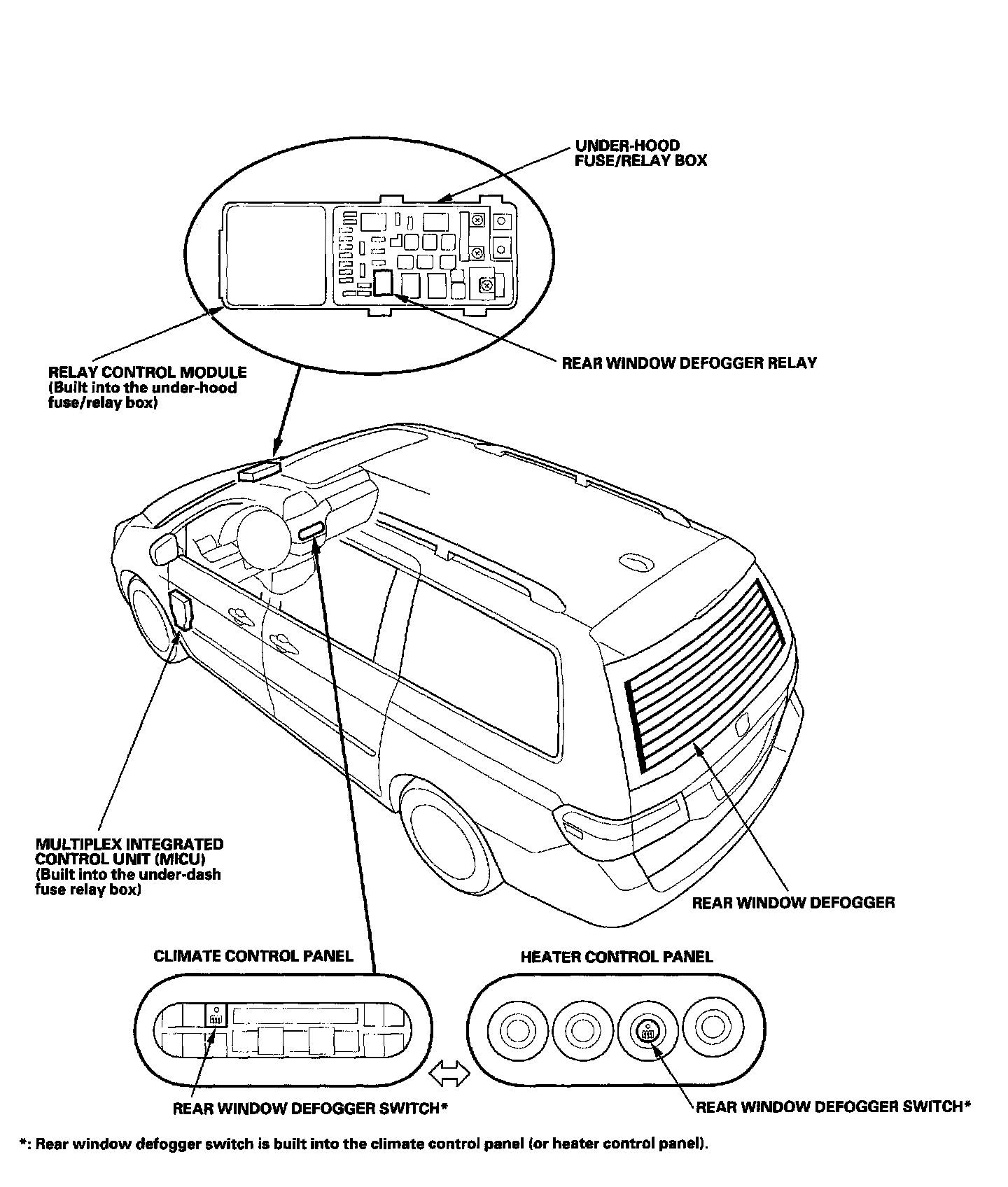

Rear Window Defogger - Component Location Index:
