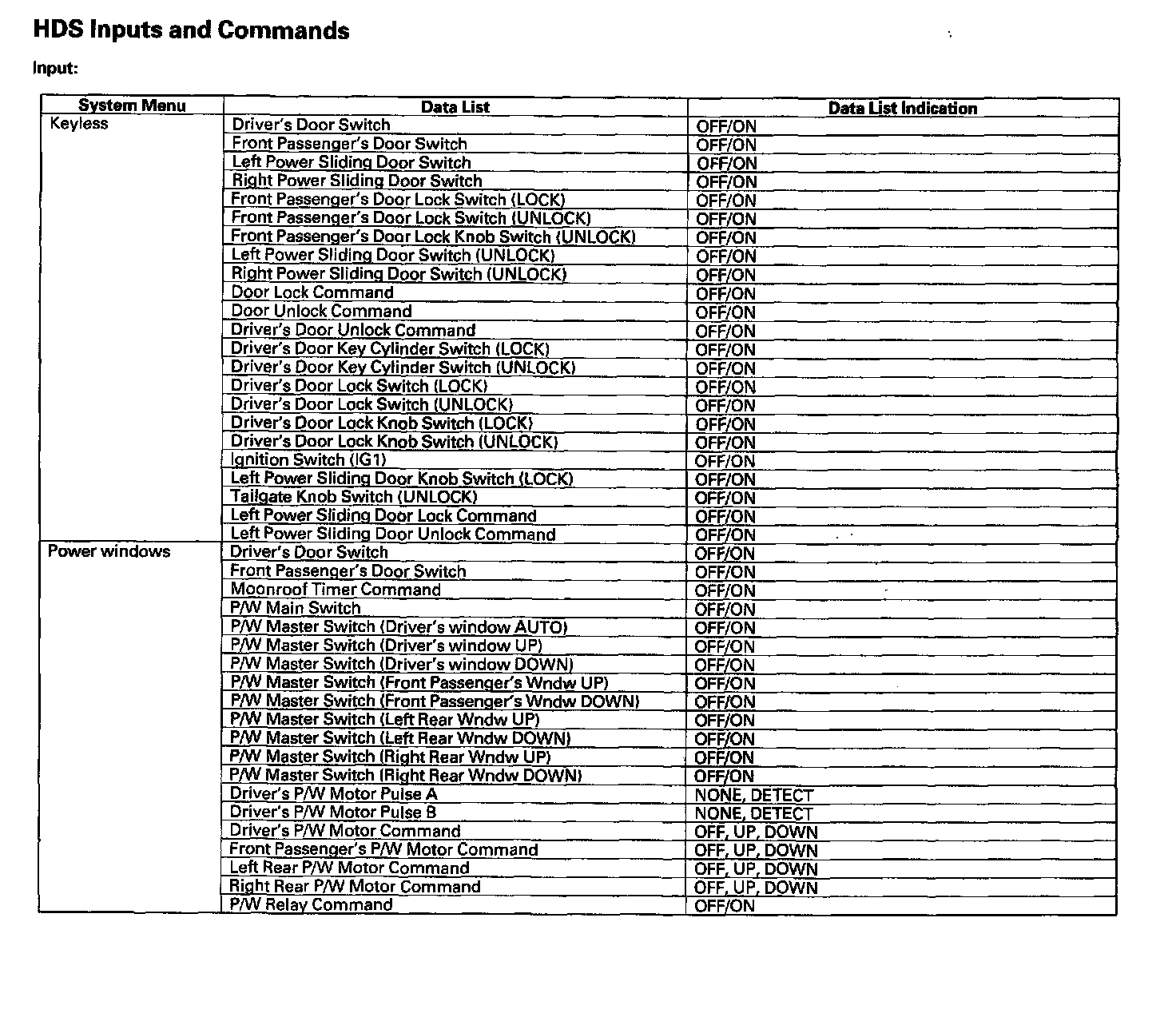

HDS Inputs and Commands

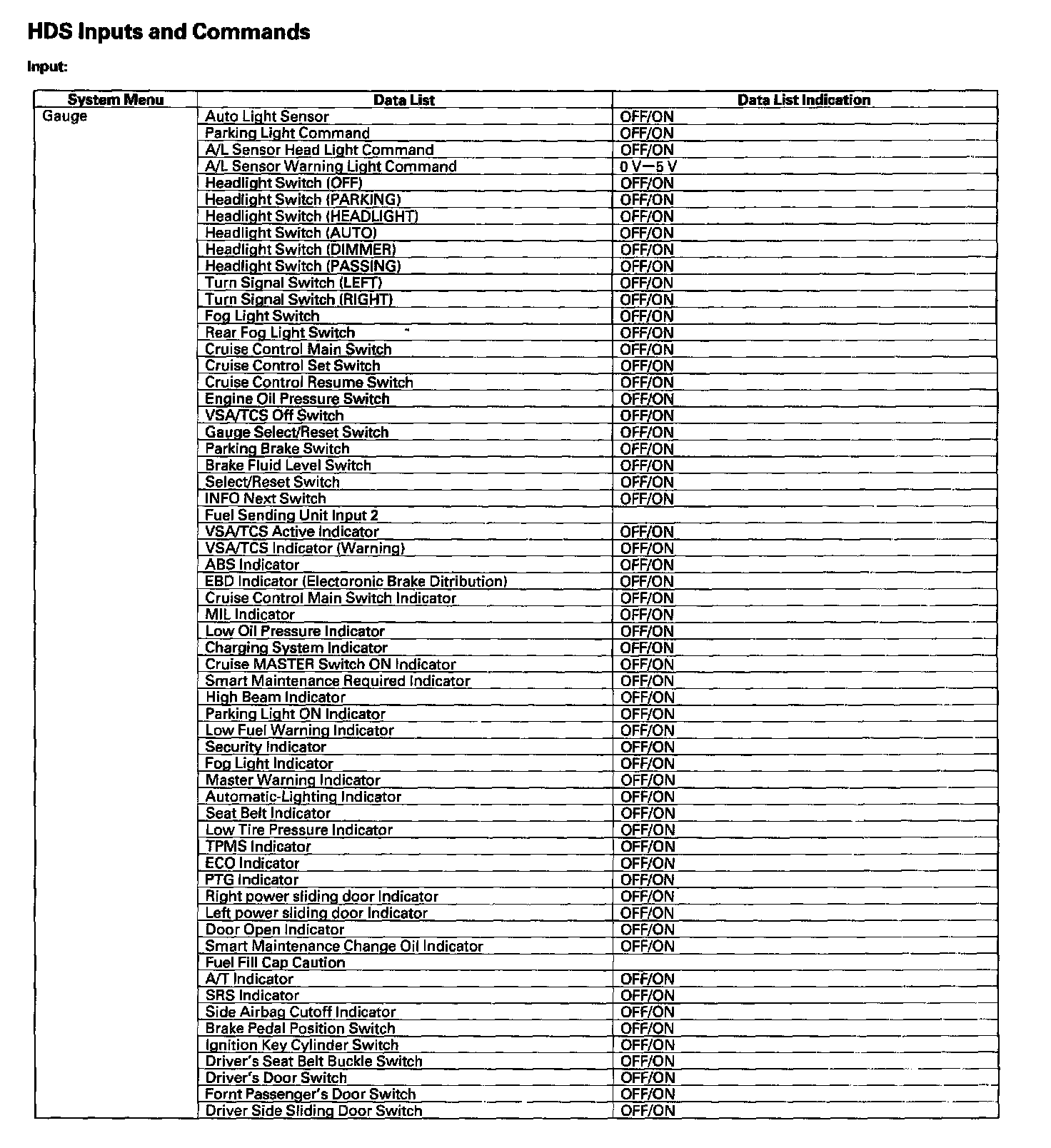

HDS Inputs And Commands:

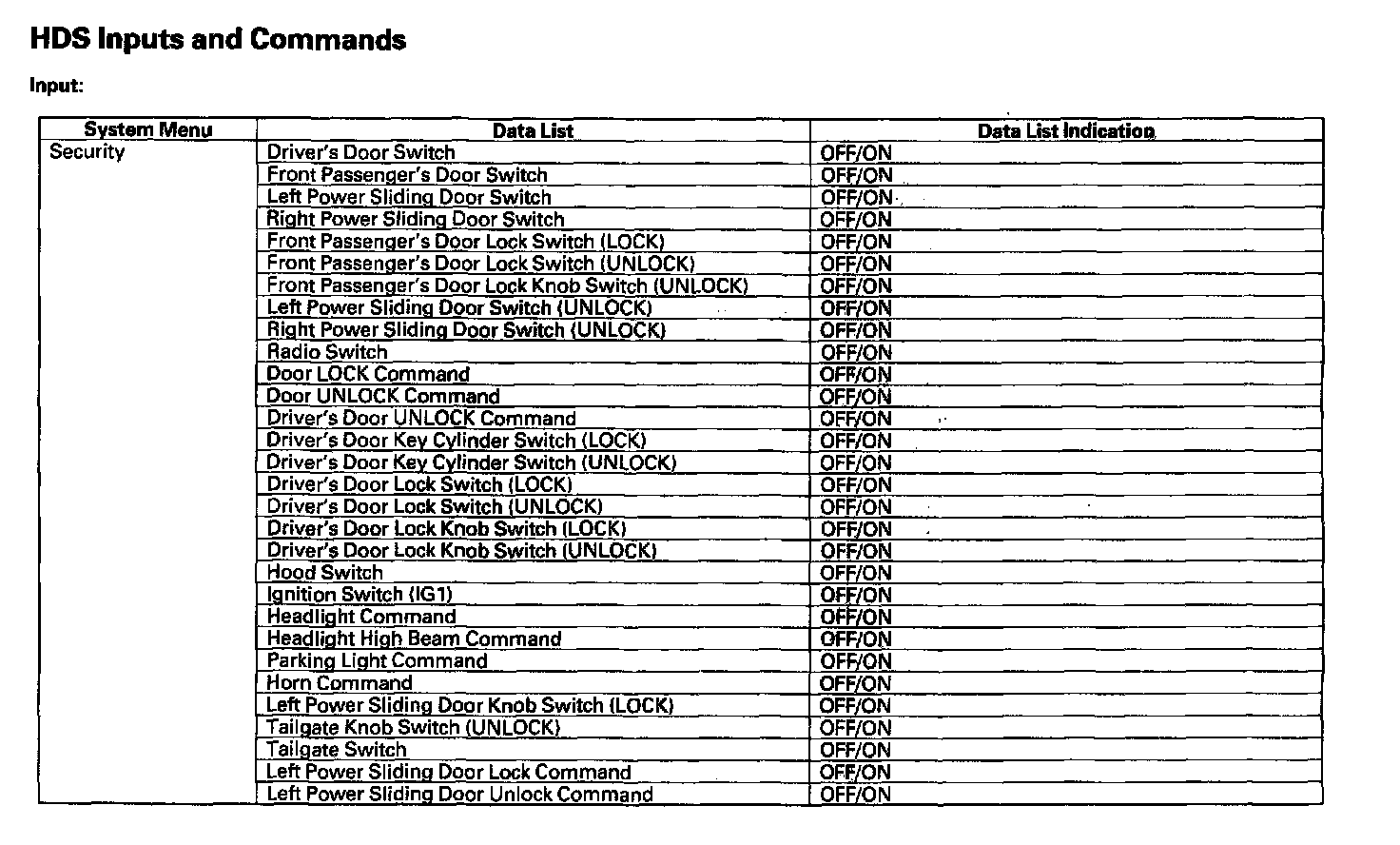

HDS Inputs And Commands:

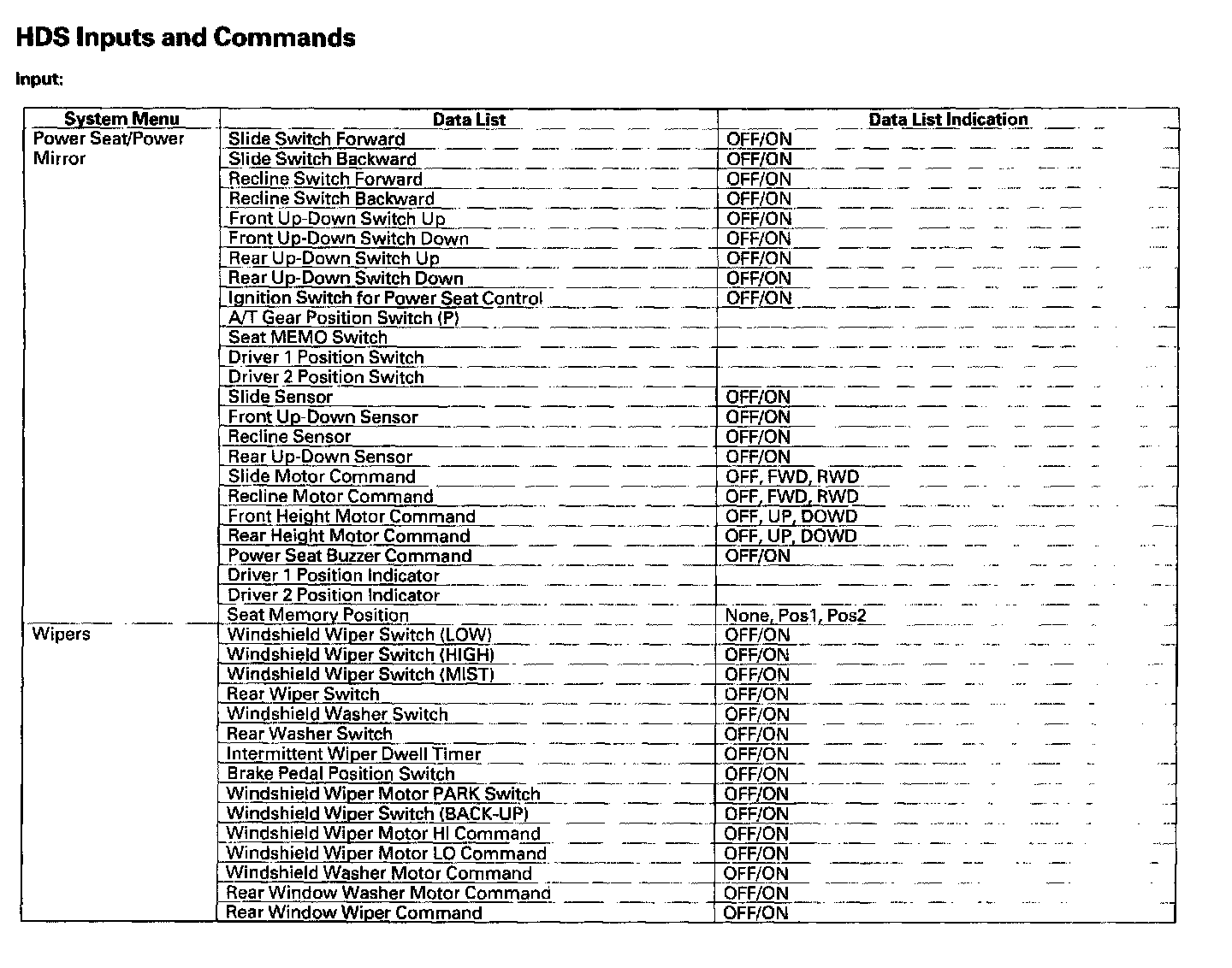

HDS Inputs And Commands:




HDs Inputs And Commands:

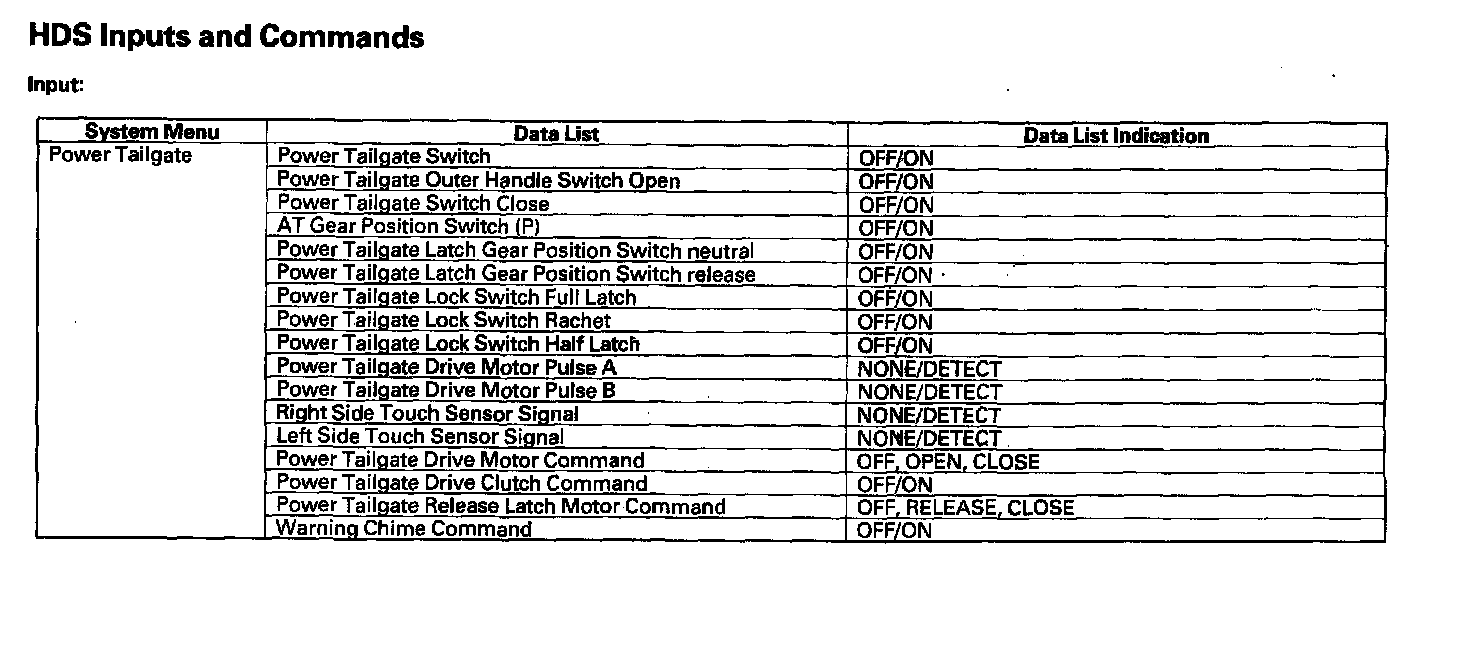

HDS Inputs And Commands:

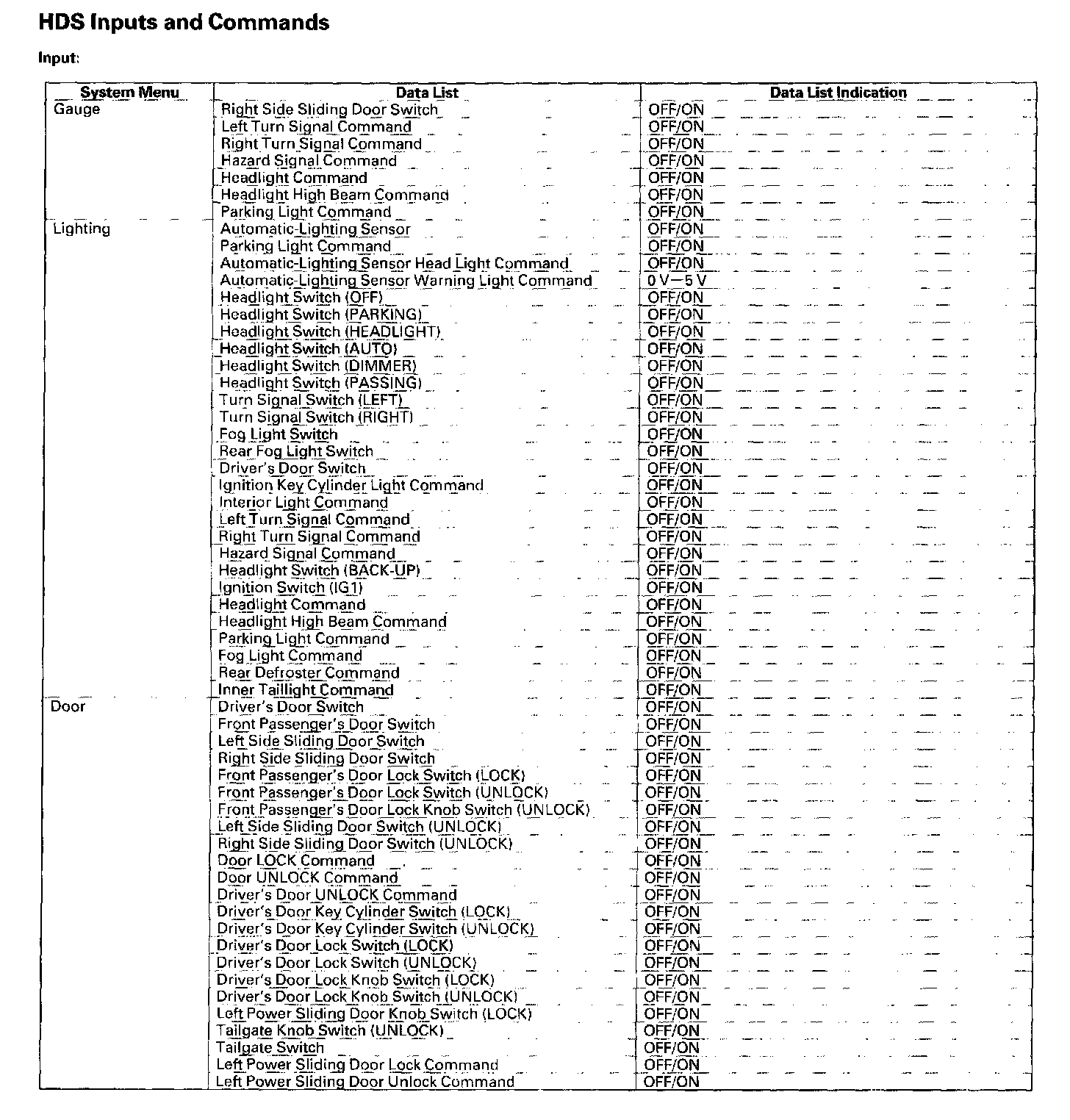

HDS Inputs And Commands:

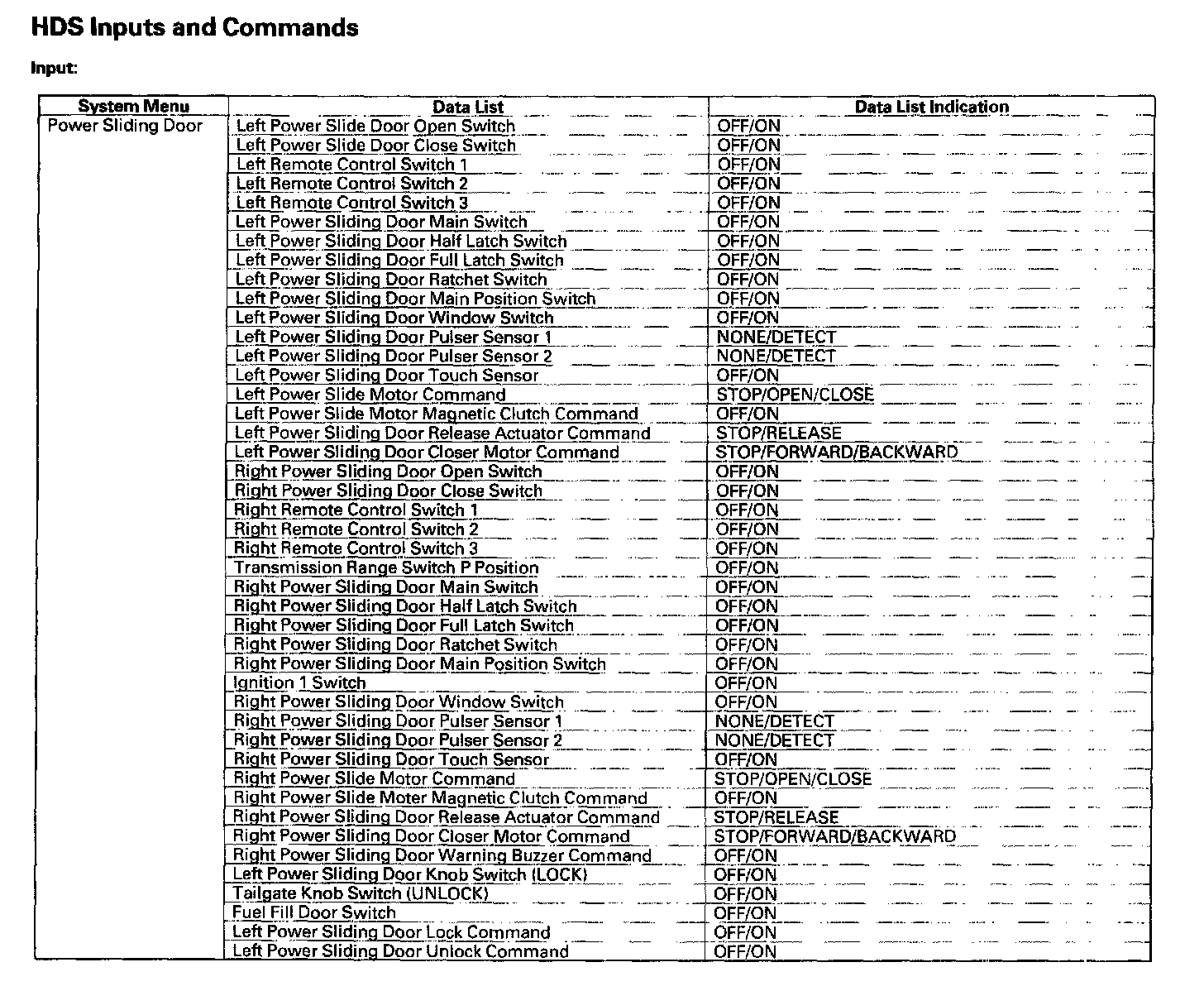

HDS Inputs And Commands:





HDS Inputs and Commands

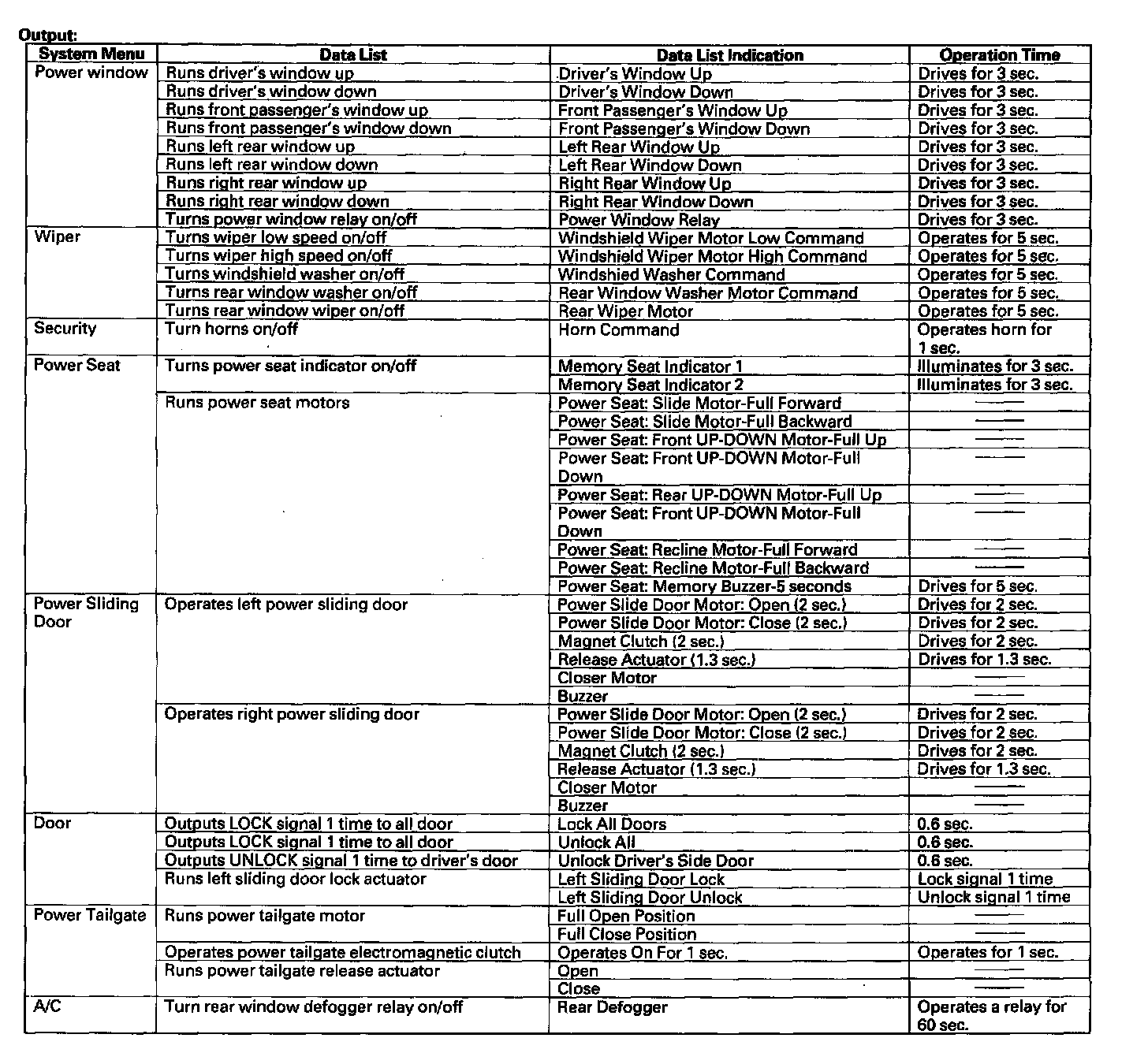

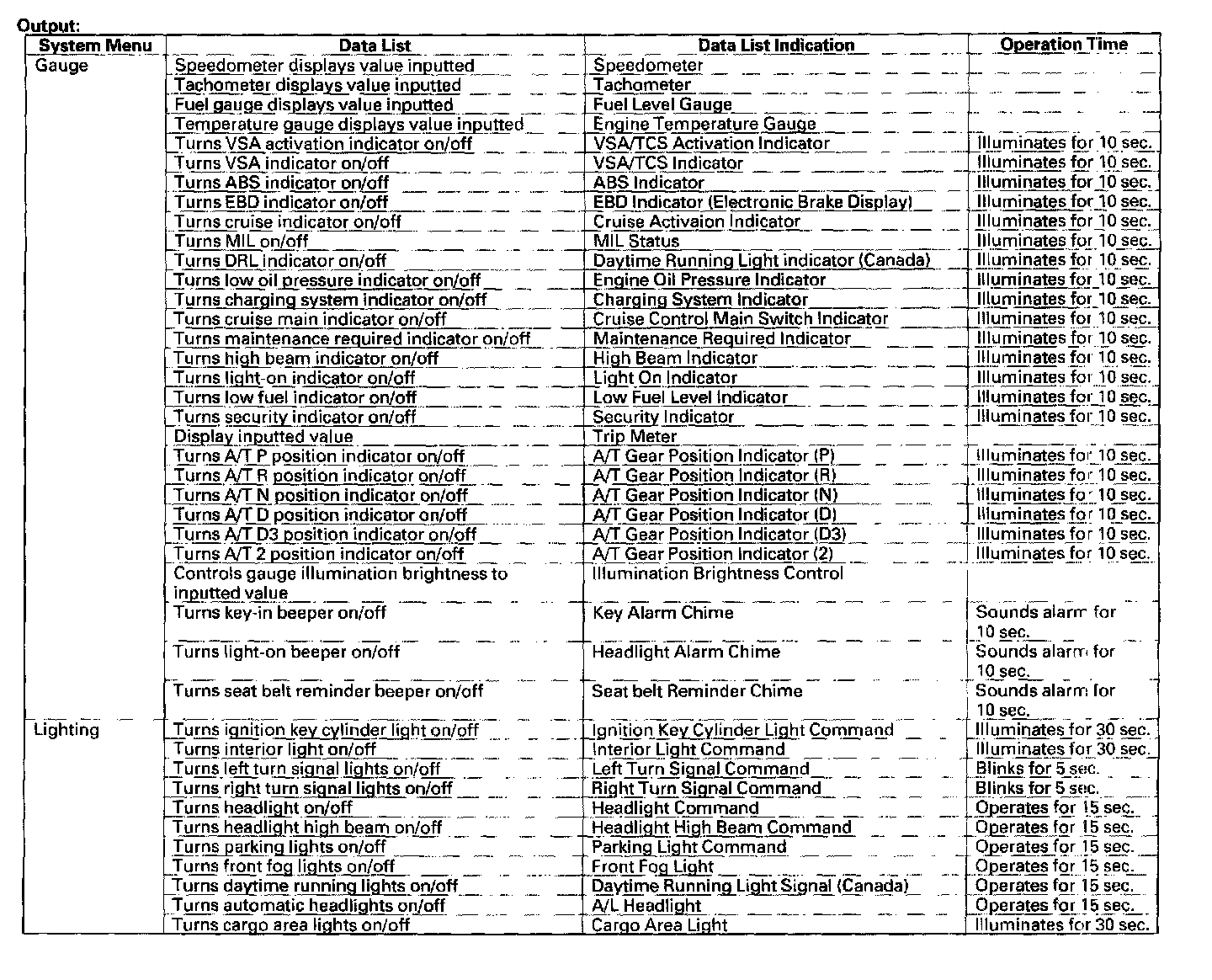

Output
