Power Sliding Door Module: Locations

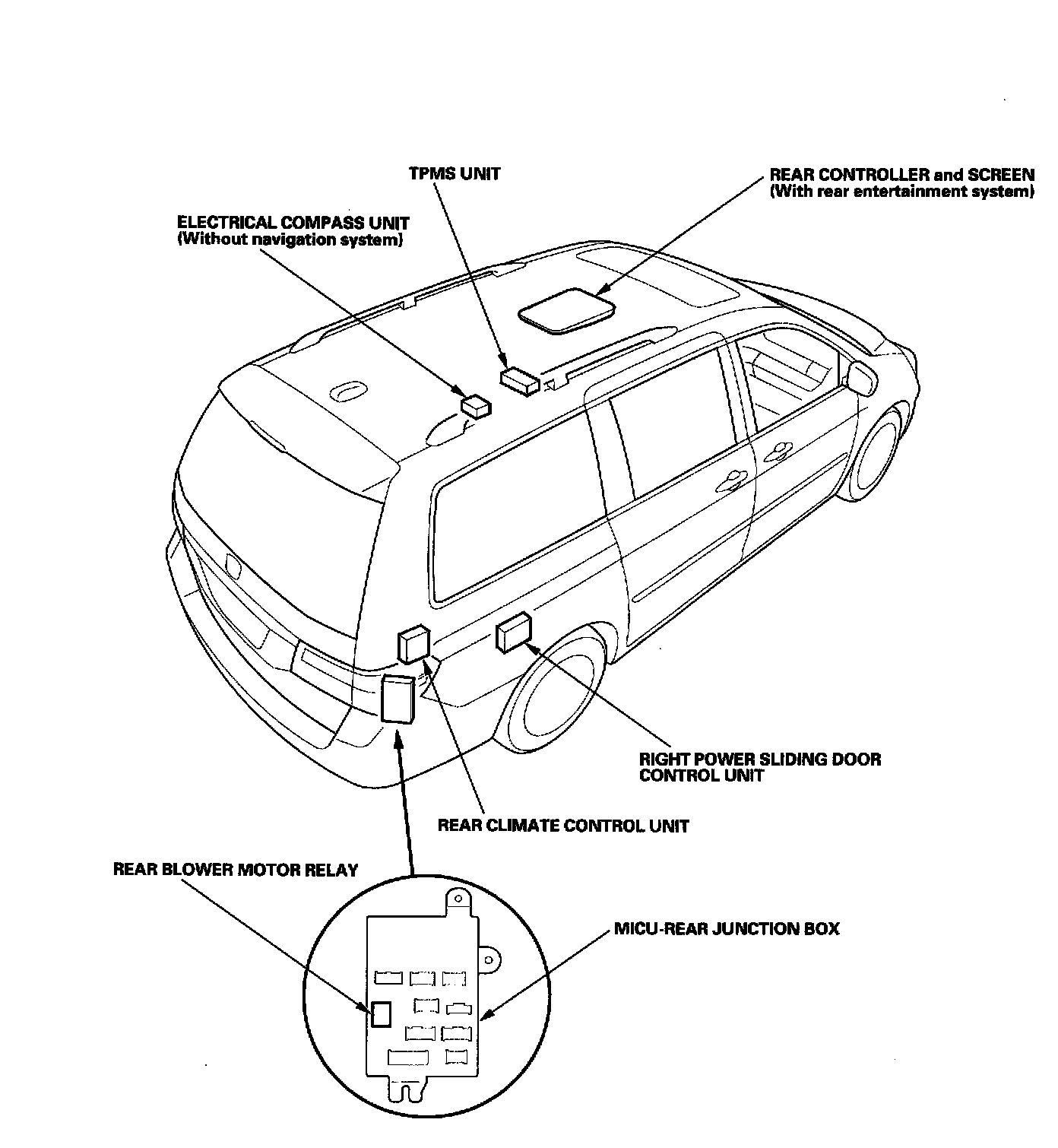

Relay And Control Unit Locations - Rear Quarter Panel And Sliding Door:

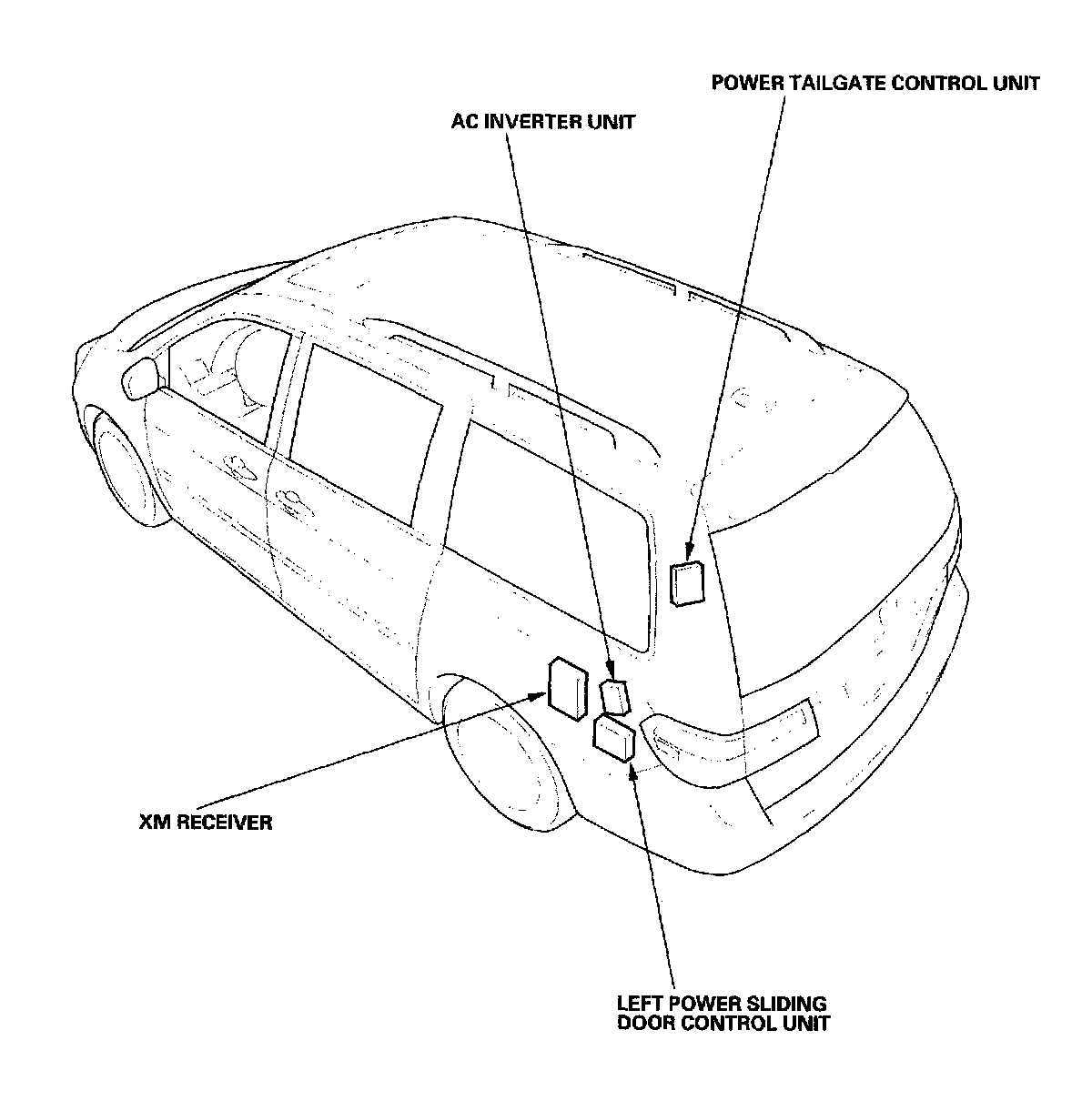

Relay And Control Unit Locations - Rear Quarter Panel, Sliding Door:

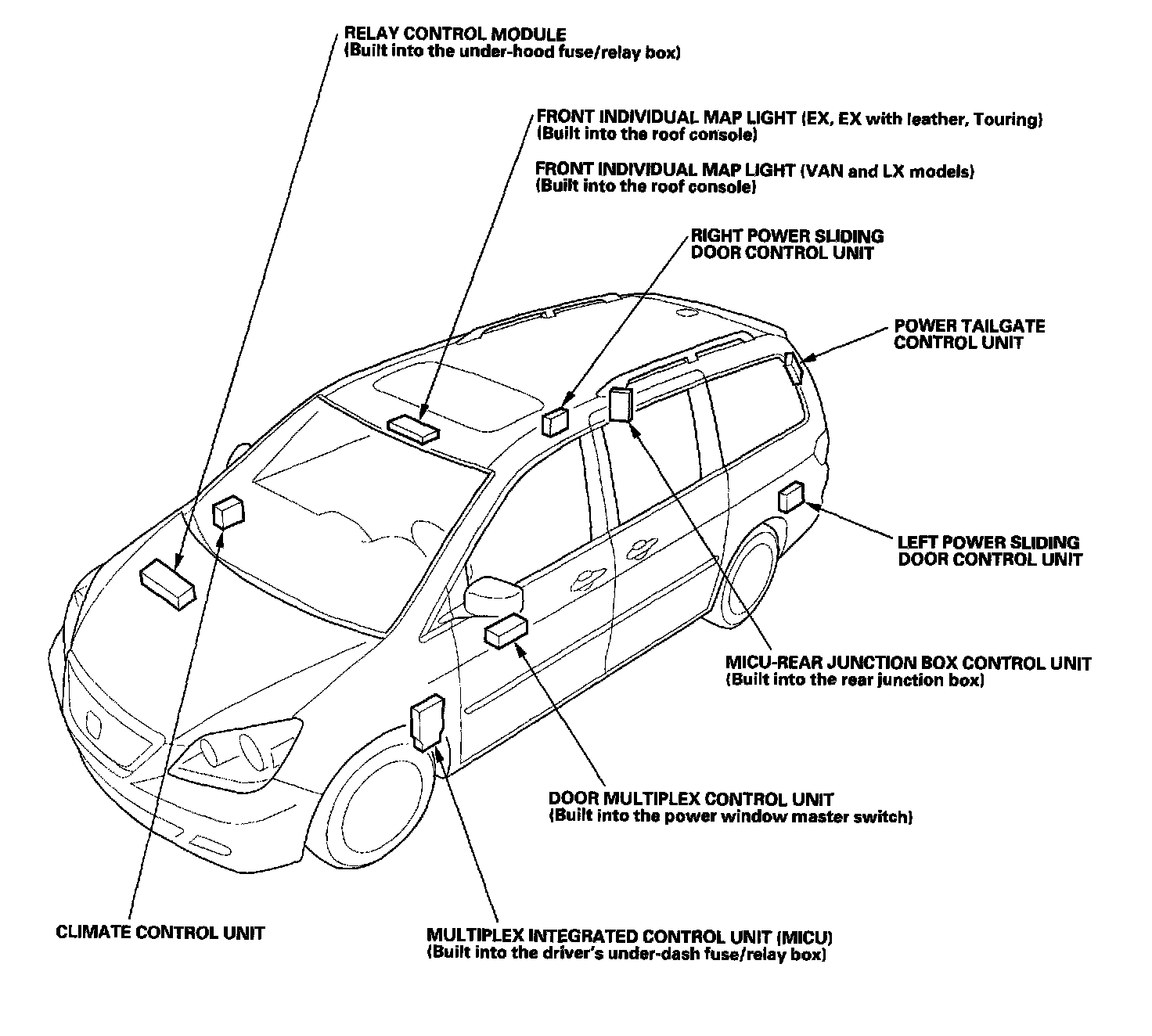

Multiplex Integrated Control Systems (MICS) - Component Location Index:



Power Sliding Doors - Component Location Index:



Power Sliding Doors - Component Location Index:

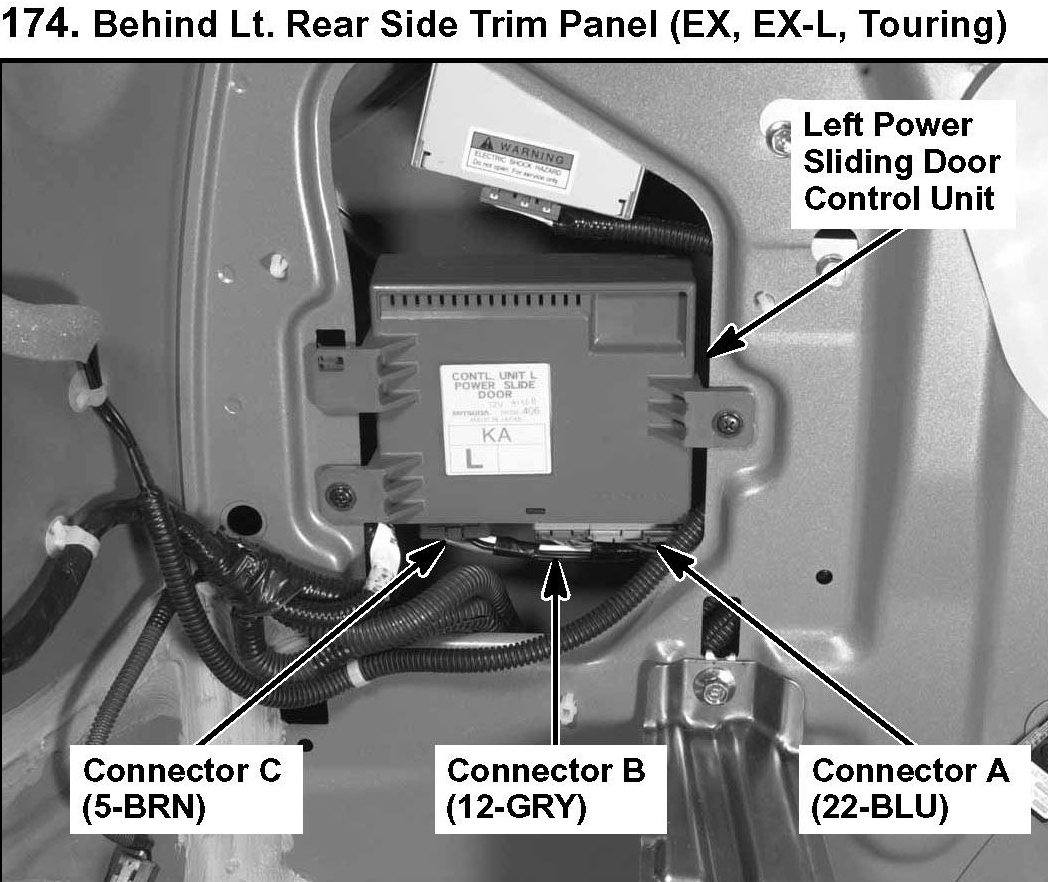

174. Behind Lt. Rear Side Trim Panel (EX, EX-L, Touring):

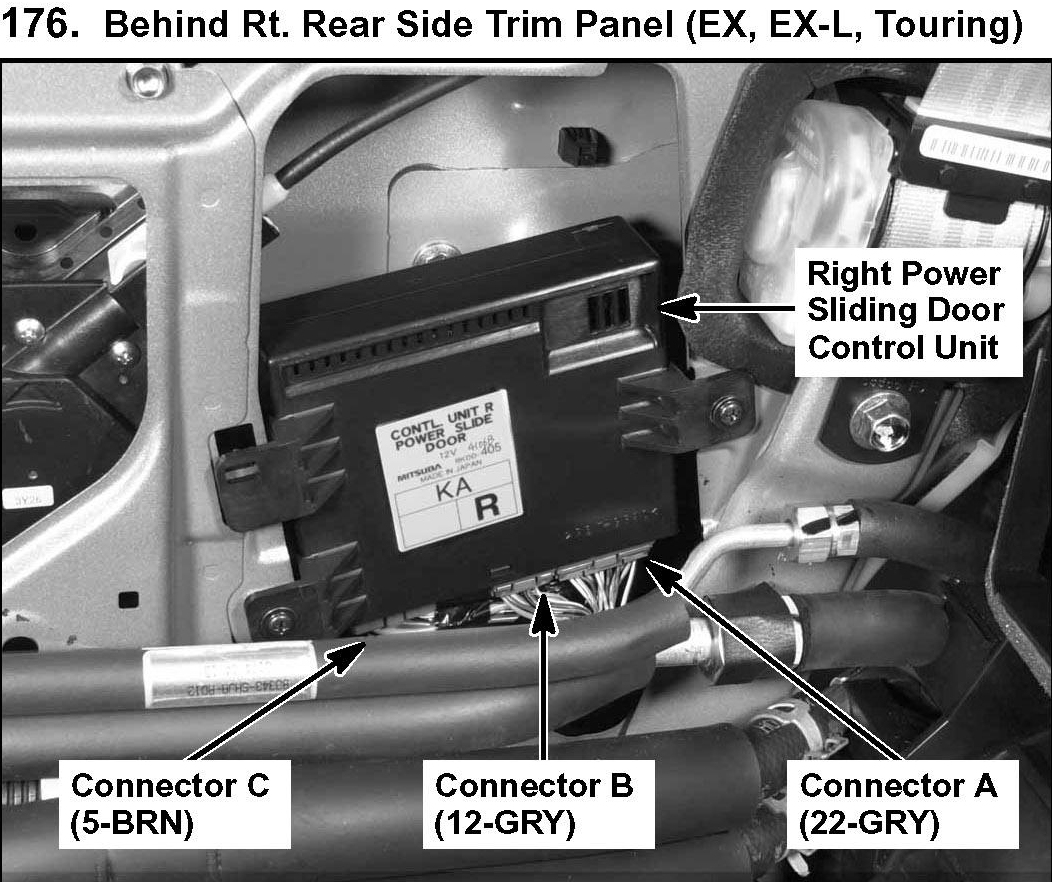

176. Behind Rt. Rear Side Trim Panel (EX, EX-L, Touring):
