Recirculation Control Motor Replacement

  1. Remove both glove box stops, then let the glove box hang down (see GLOVE BOX REMOVAL/INSTALLATION ).
  2. Remove the wire harness connectors from the evaporator.
  3. Disconnect the 7P connector (A) from the recirculation control motor (B). Remove the self-tapping screws and the recirculation control motor from the blower unit.

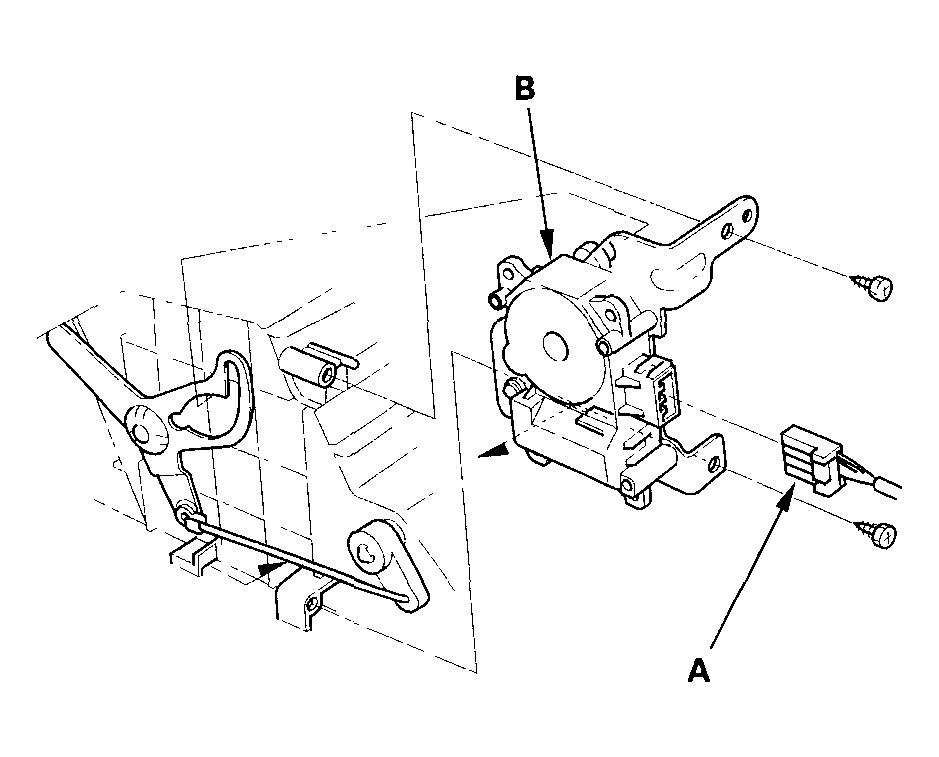

    Fig 1: Removing Self-Tapping Screws And Recirculation Control Motor From Blower Unit
    G04547979Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
