Immobilizer Control Unit-Receiver Replacement
- Remove the driver's dashboard lower cover (see
DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION
).
- Remove the steering column covers (see
STEERING COLUMN REMOVAL AND INSTALLATION
).

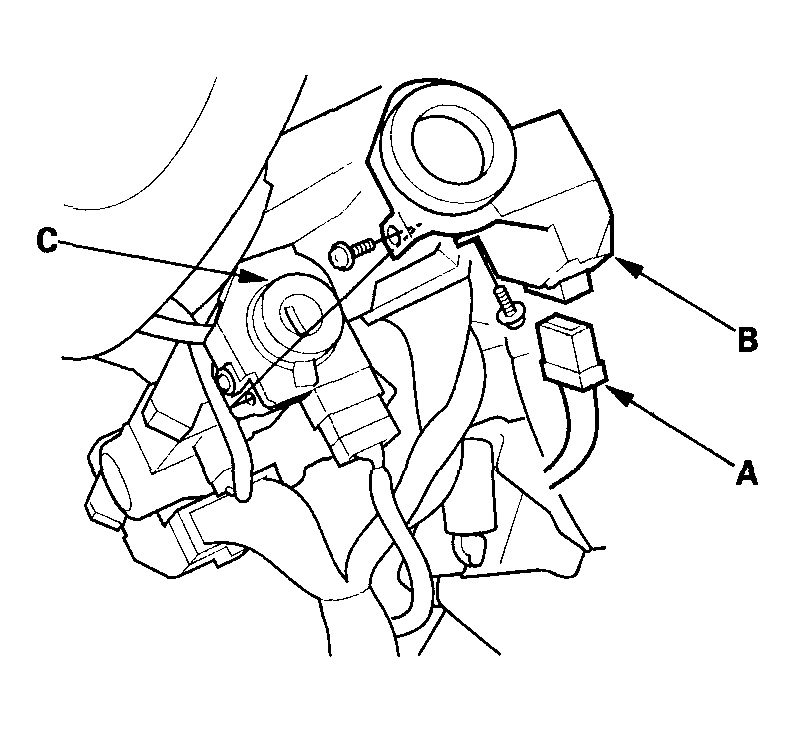

- Disconnect the 7P connector (A) from the immobilizer control unit-receiver (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the two screws and the immobilizer control unit-receiver from the ignition key cylinder (C).
- Install the immobilizer control unit-receiver in the reverse order of removal.
- After replacement, rewrite the unit with the HDS, then check the immobilizer system.
