Oil Pressure Switch Replacement

  1. Disconnect the oil pressure switch connector, then remove the oil pressure switch.

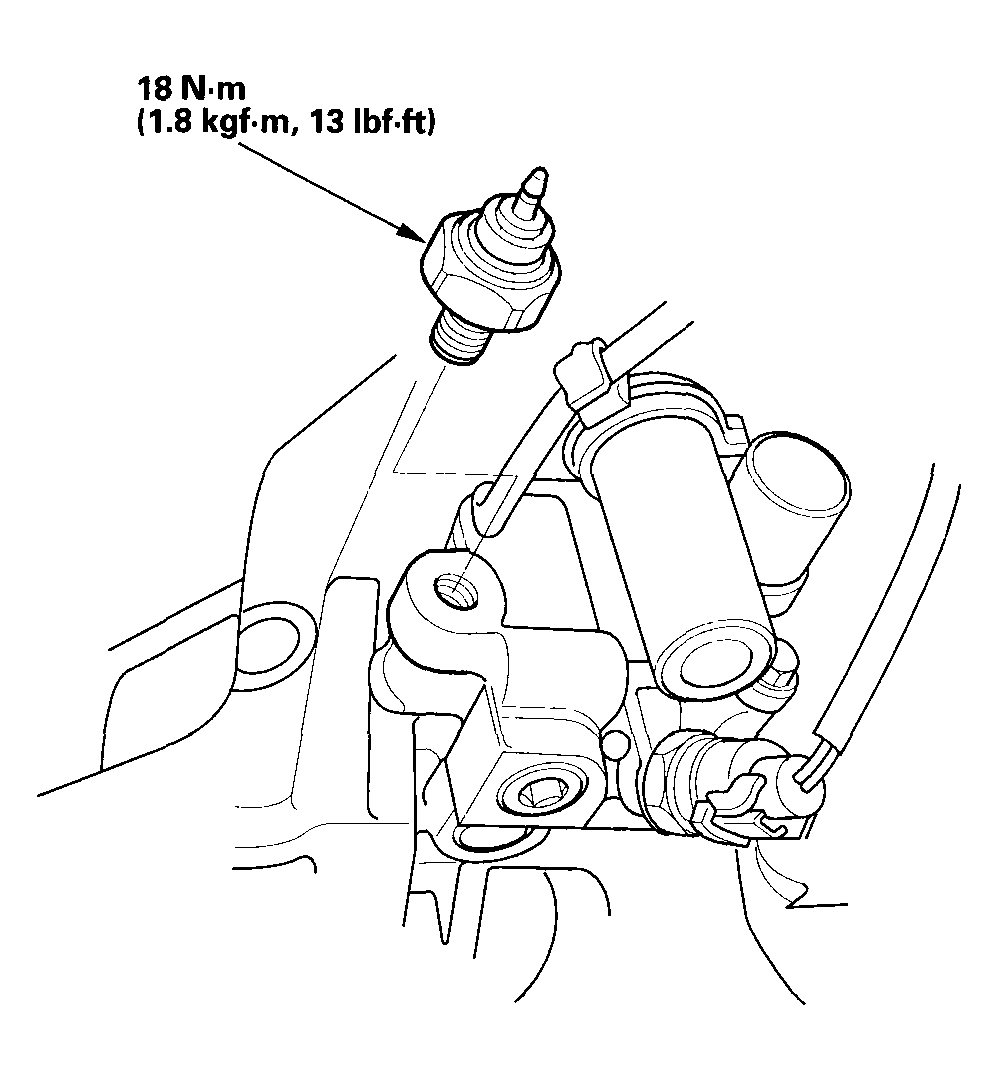

    Fig 1: Removing Oil Pressure Switch
    G04545789Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove any old liquid gasket from the switch and switch mounting hole.
  3. Apply liquid gasket to the new oil pressure switch, then install the oil pressure switch.
