Oil Pressure Switch Test

  1. Remove the BLU/YEL wire (A) from the engine oil pressure switch (B).

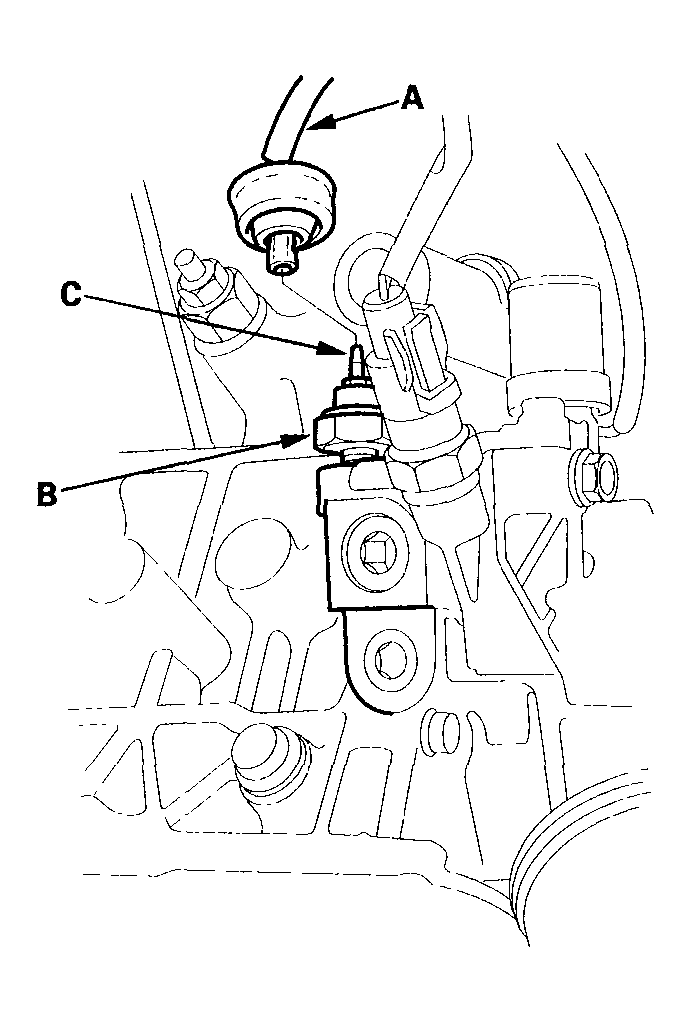

    Fig 1: Removing BLU/YEL Wire From Engine Oil Pressure Switch
    G04545774Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Check for continuity between the positive terminal (C) and the engine (ground). There should be continuity with the engine stopped. There should be no continuity with the engine running.
