Throttle Position Learning Check

  1. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.

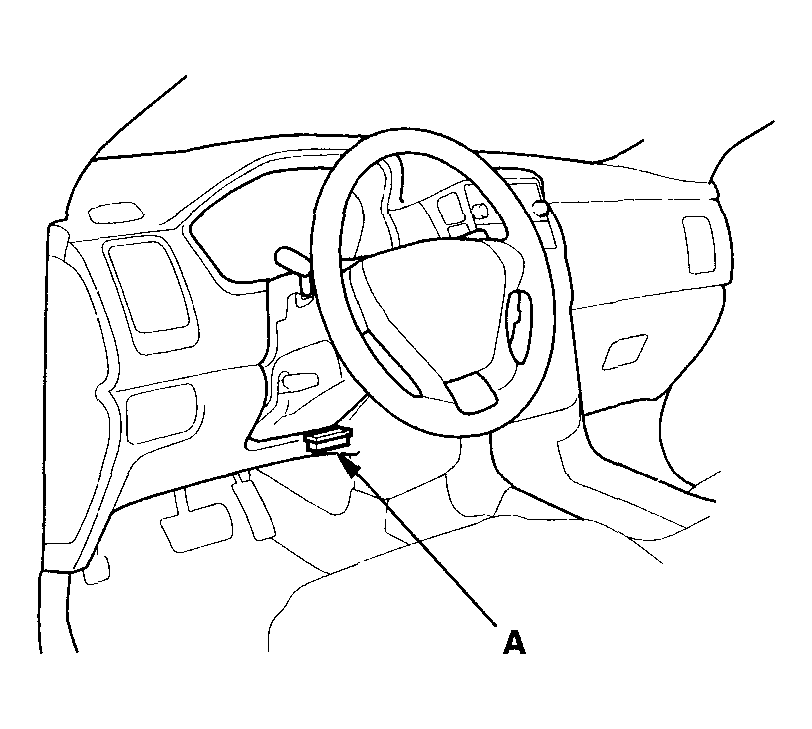

    Fig 1: Identifying Data Link Connector (DLC)
    G04546199Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Select the INSPECTION MENU with the HDS.
  3. Do the TP LEARNING CHECK in the ETCS TEST. If it indicates to clean the throttle body, do the throttle body cleaning (see THROTTLE BODY TEST  ).
