Special Tools

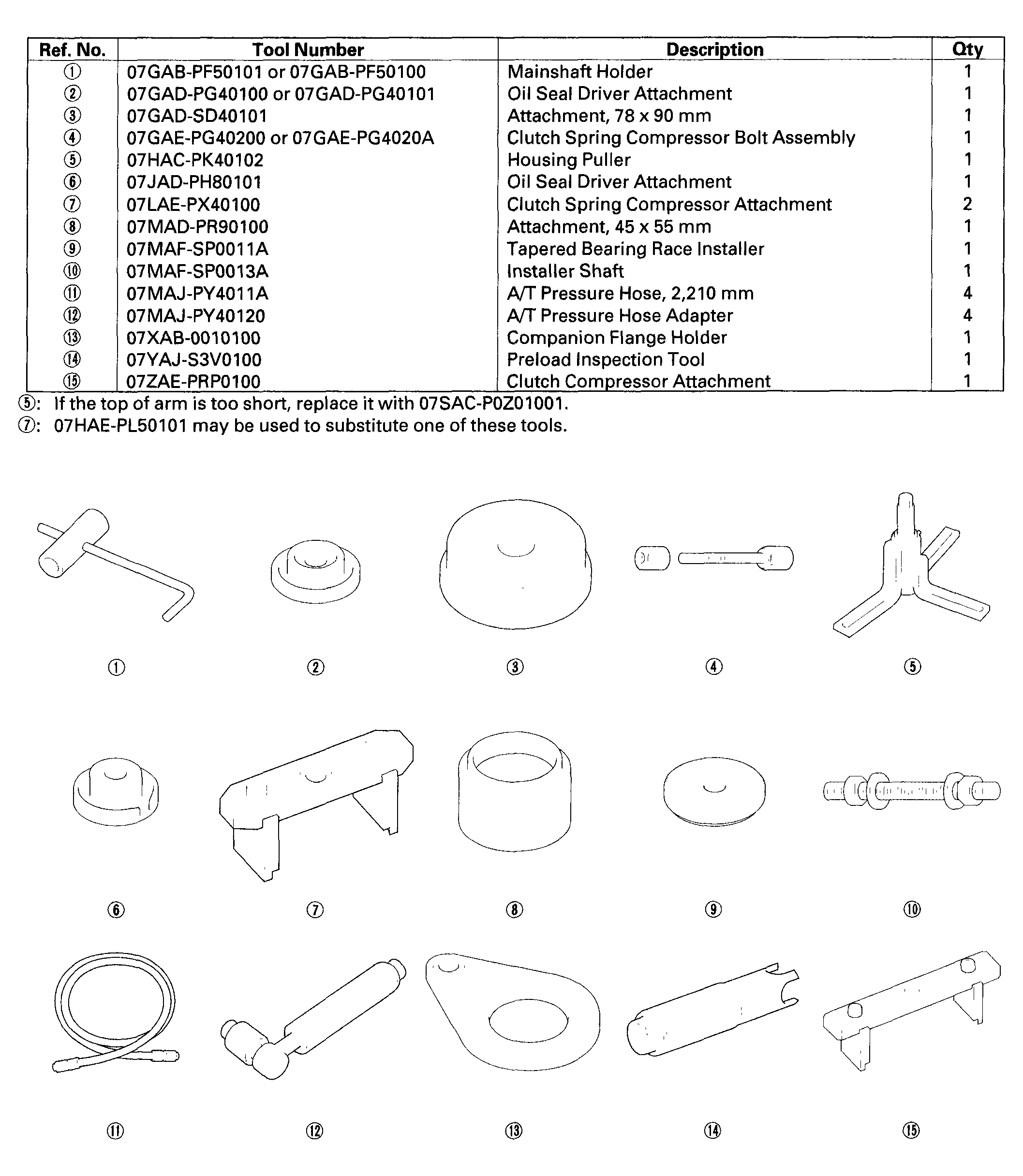

Fig 1: Identifying Special Tools
G04546277Courtesy of AMERICAN HONDA MOTOR CO., INC.

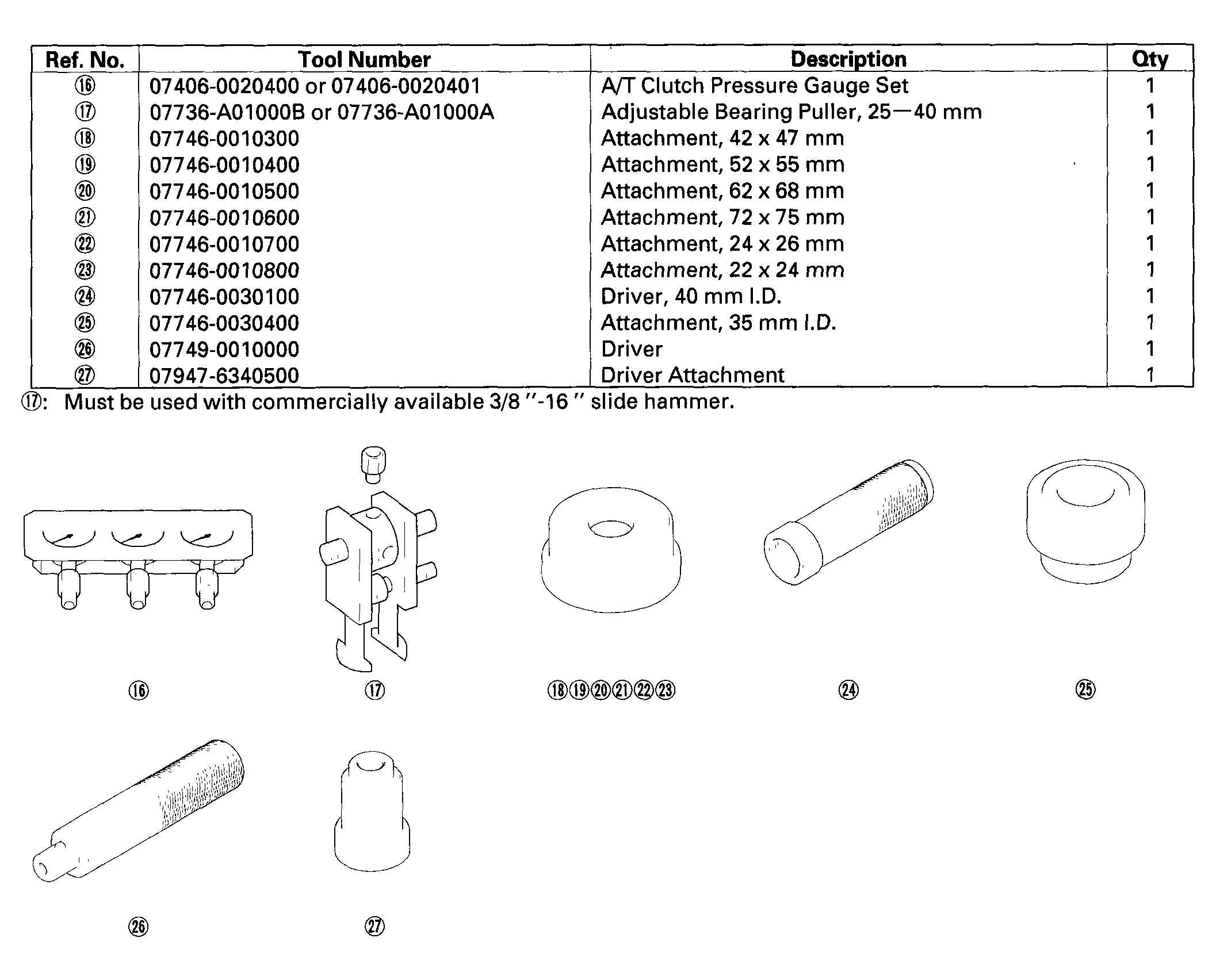

Fig 2: Identifying Special Tools
G04546278Courtesy of AMERICAN HONDA MOTOR CO., INC.
