Driver's Under-Dash Fuse/Relay Box

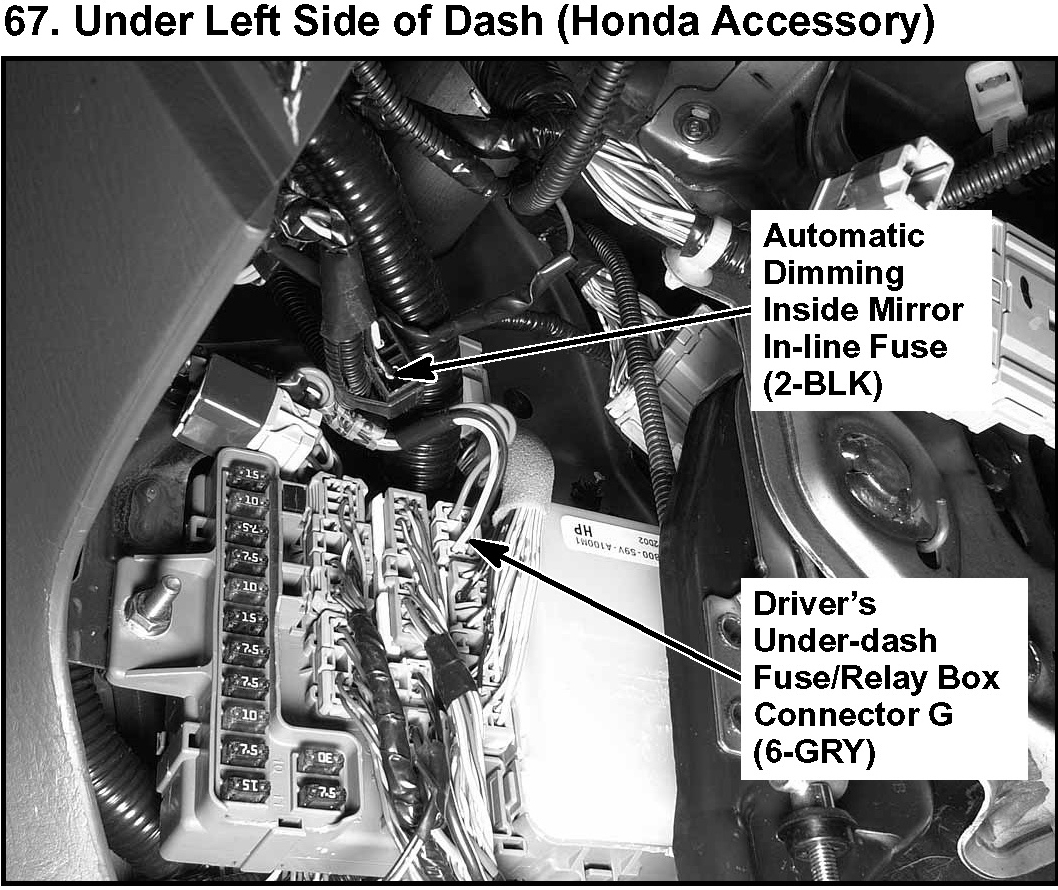

67. Under Left Side Of Dash (Honda Accessory):

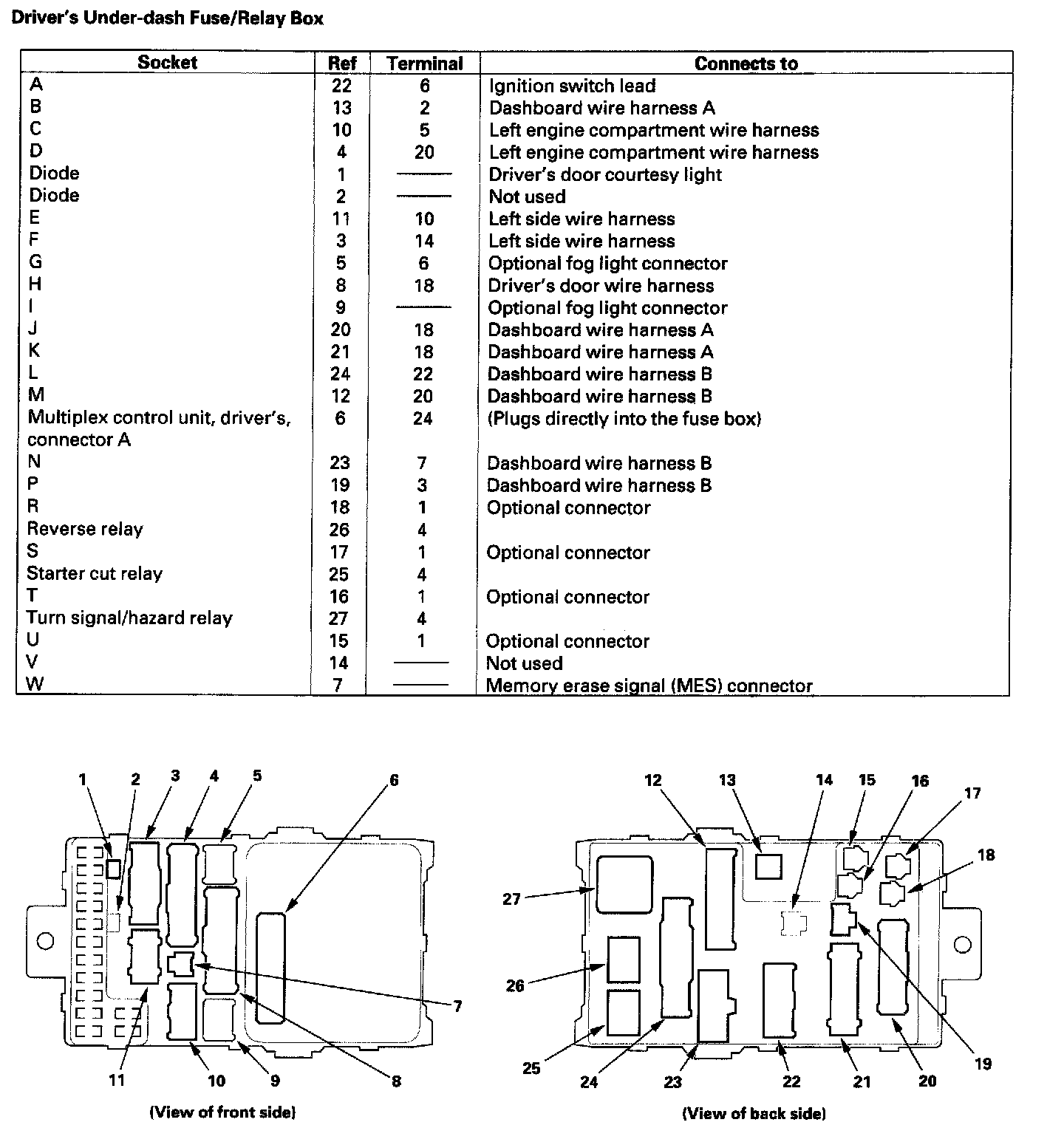

Driver's Under-Dash Fuse/Relay Box:

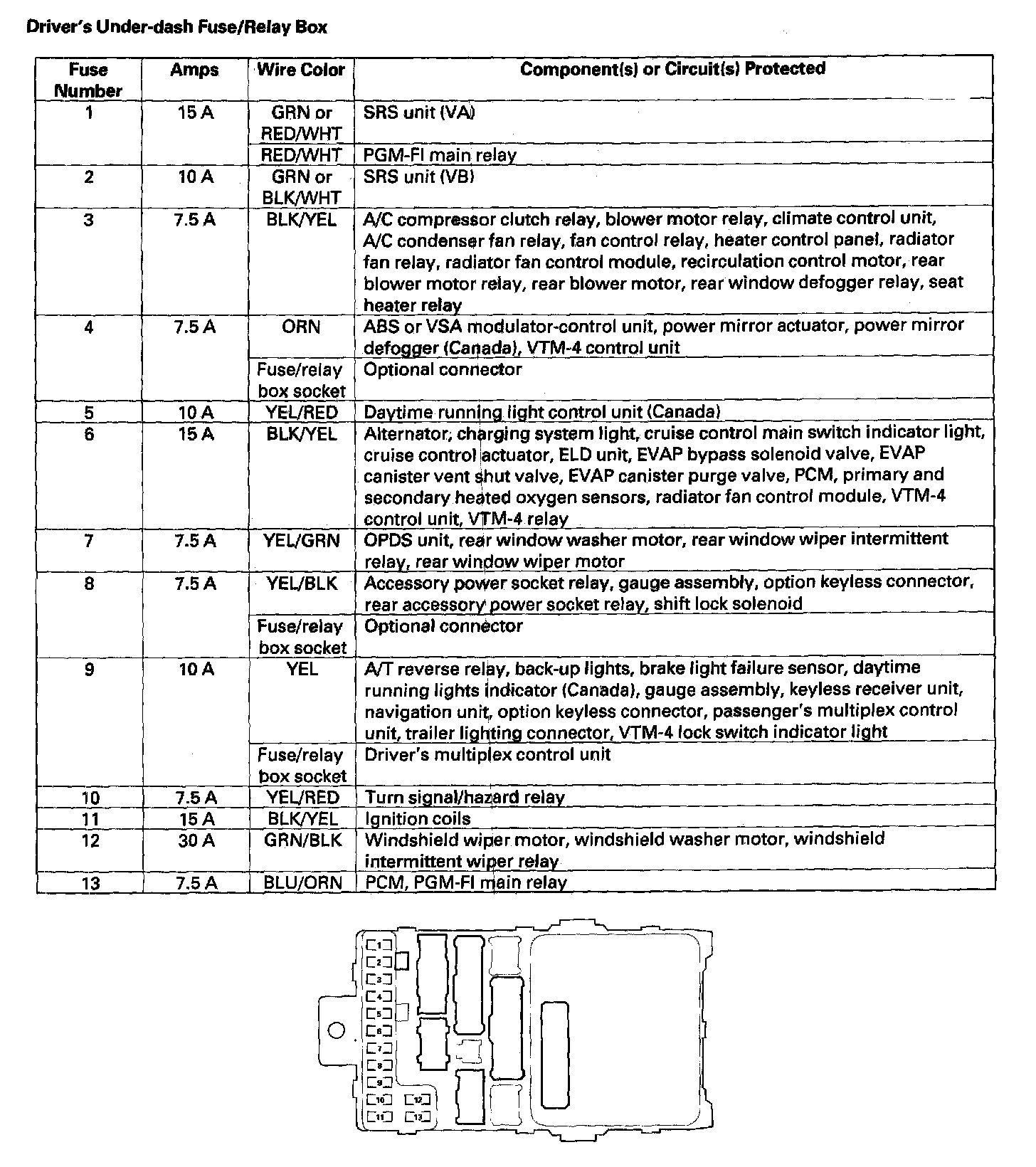

Driver's Under-Dash Fuse/Relay Box:
