Manual Transmission/Transaxle
>>
System Diagram
>>
Countershaft Reassembly
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Countershaft Reassembly
Countershaft Reassembly

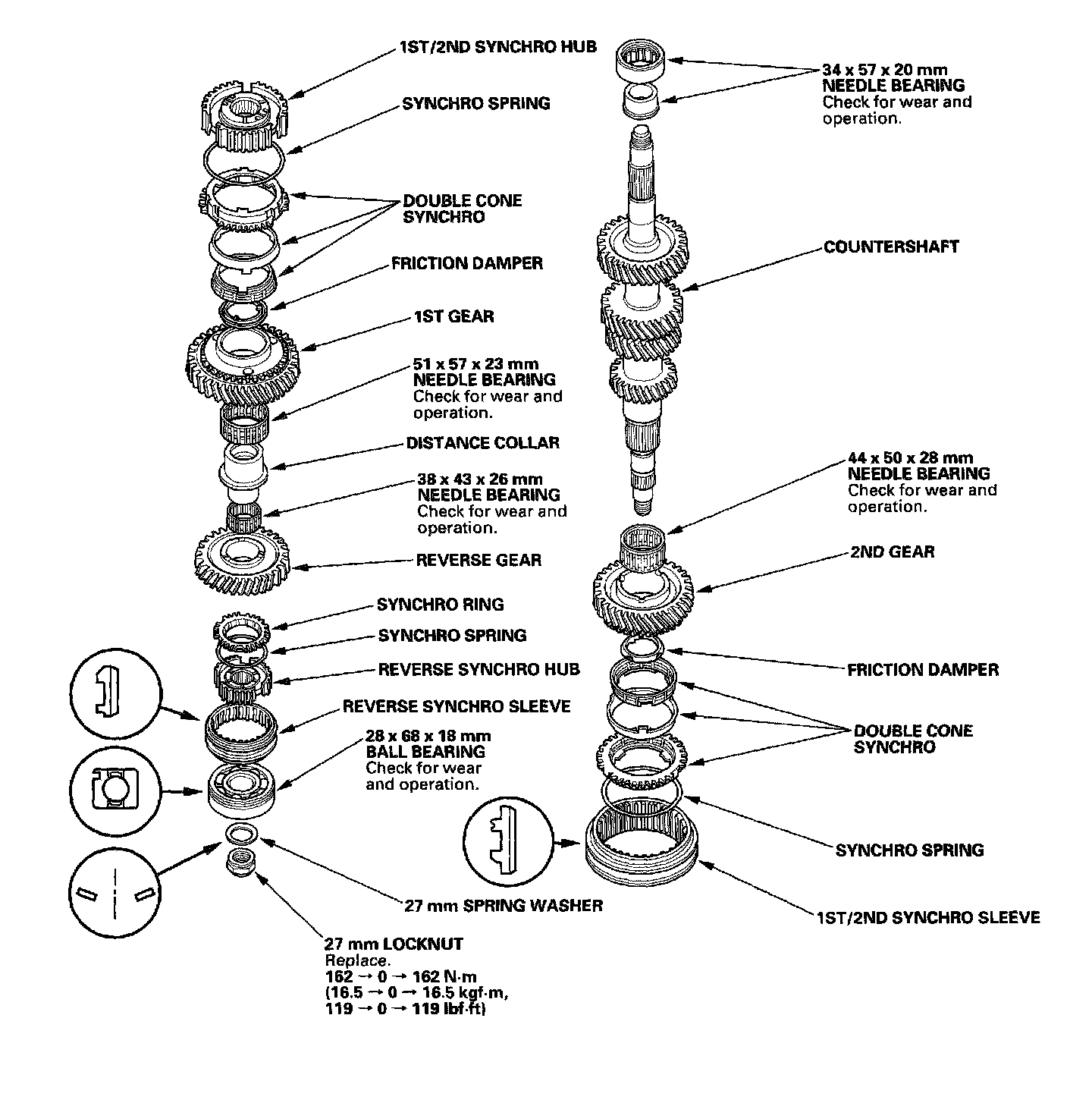

2000-2003 models

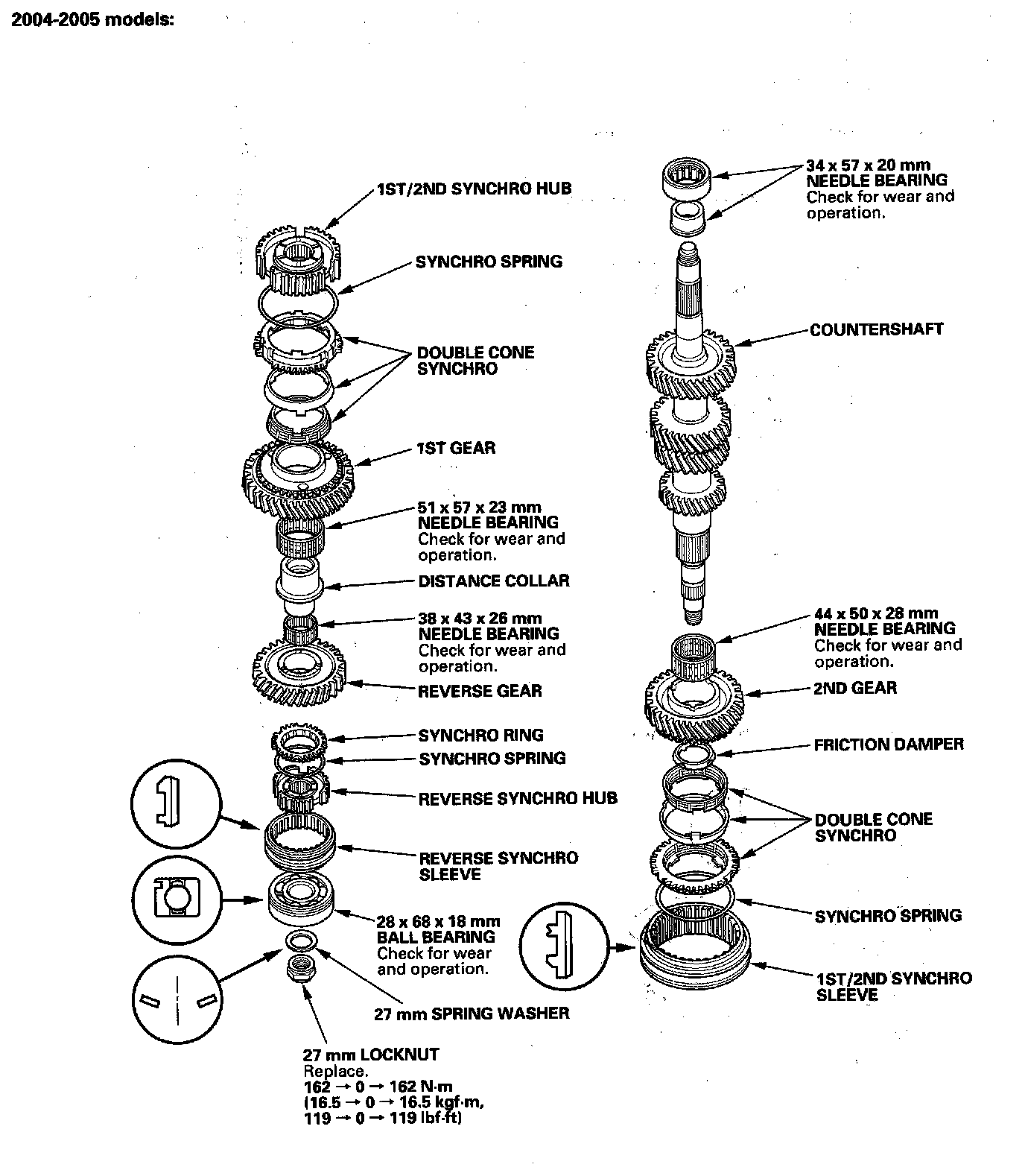

2004 - 2005 model
