Air Bag Control Module
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Air Bag Control Module

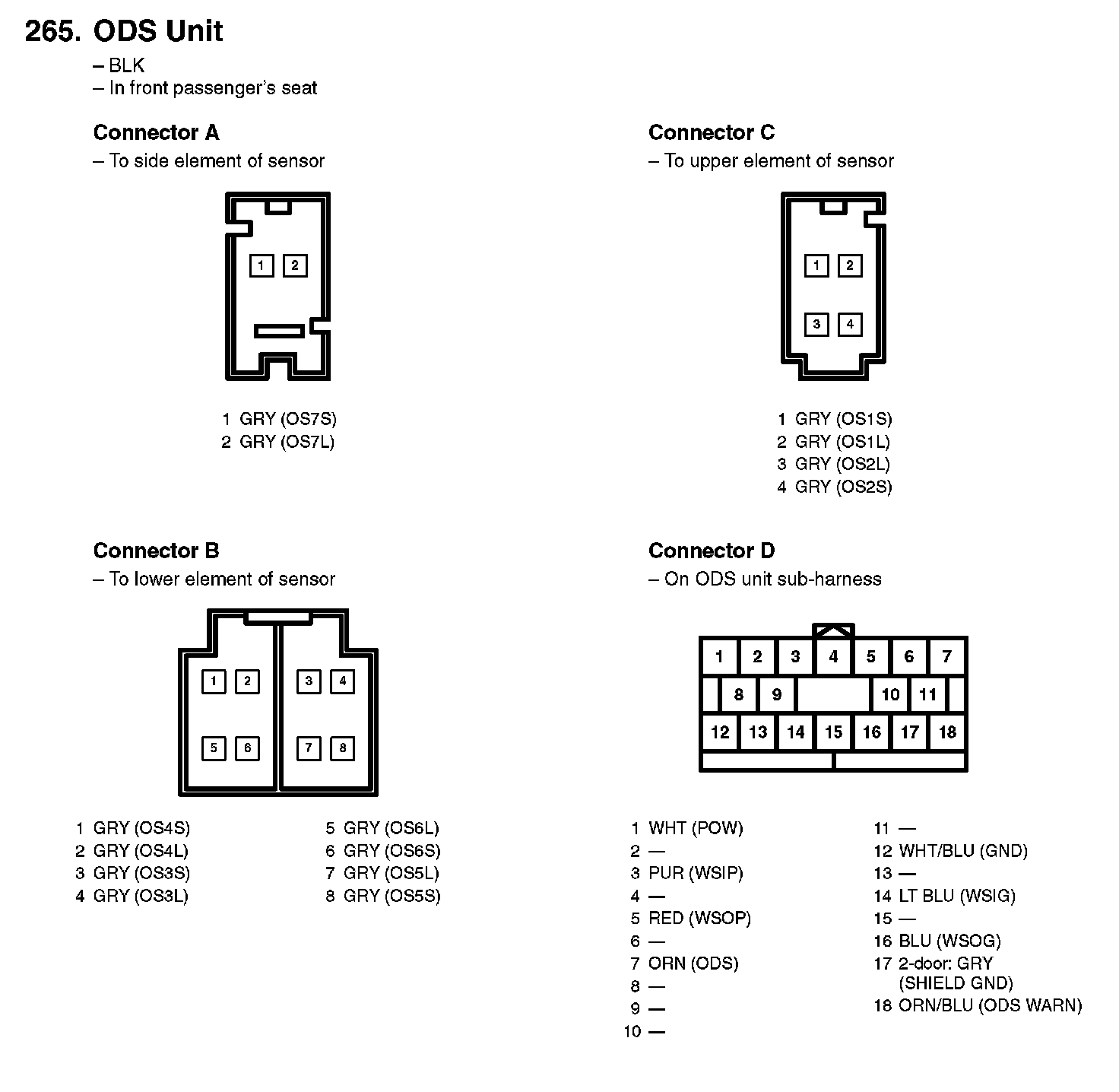

265. ODS Unit:

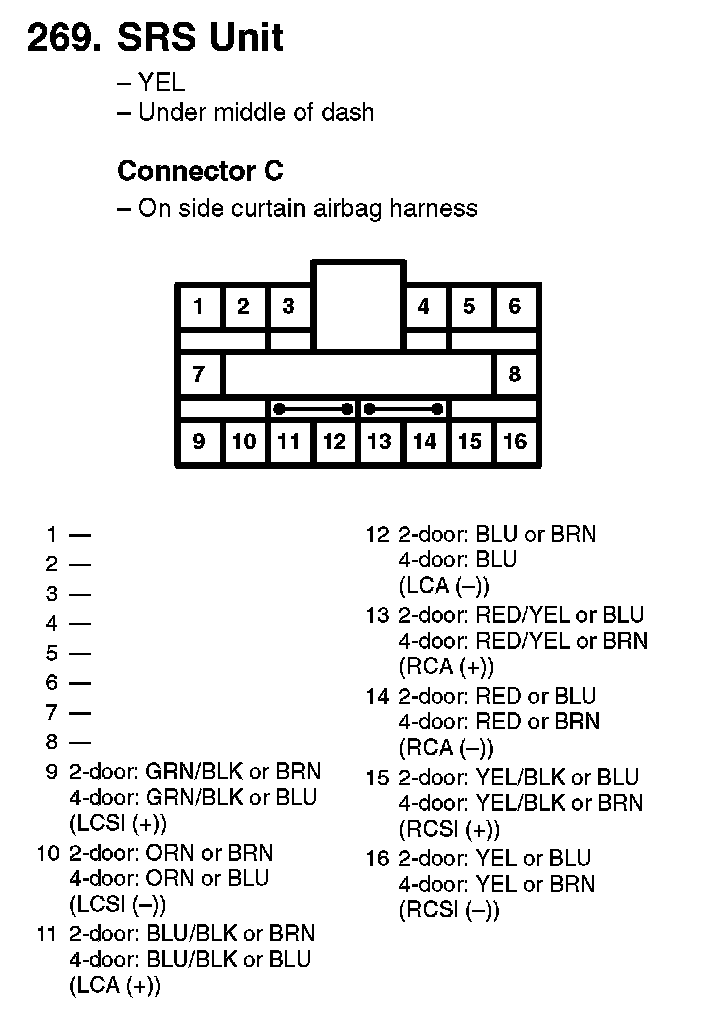

269. SRS Unit:
269. SRS Unit:
