ECM/PCM Circuit Diagrams

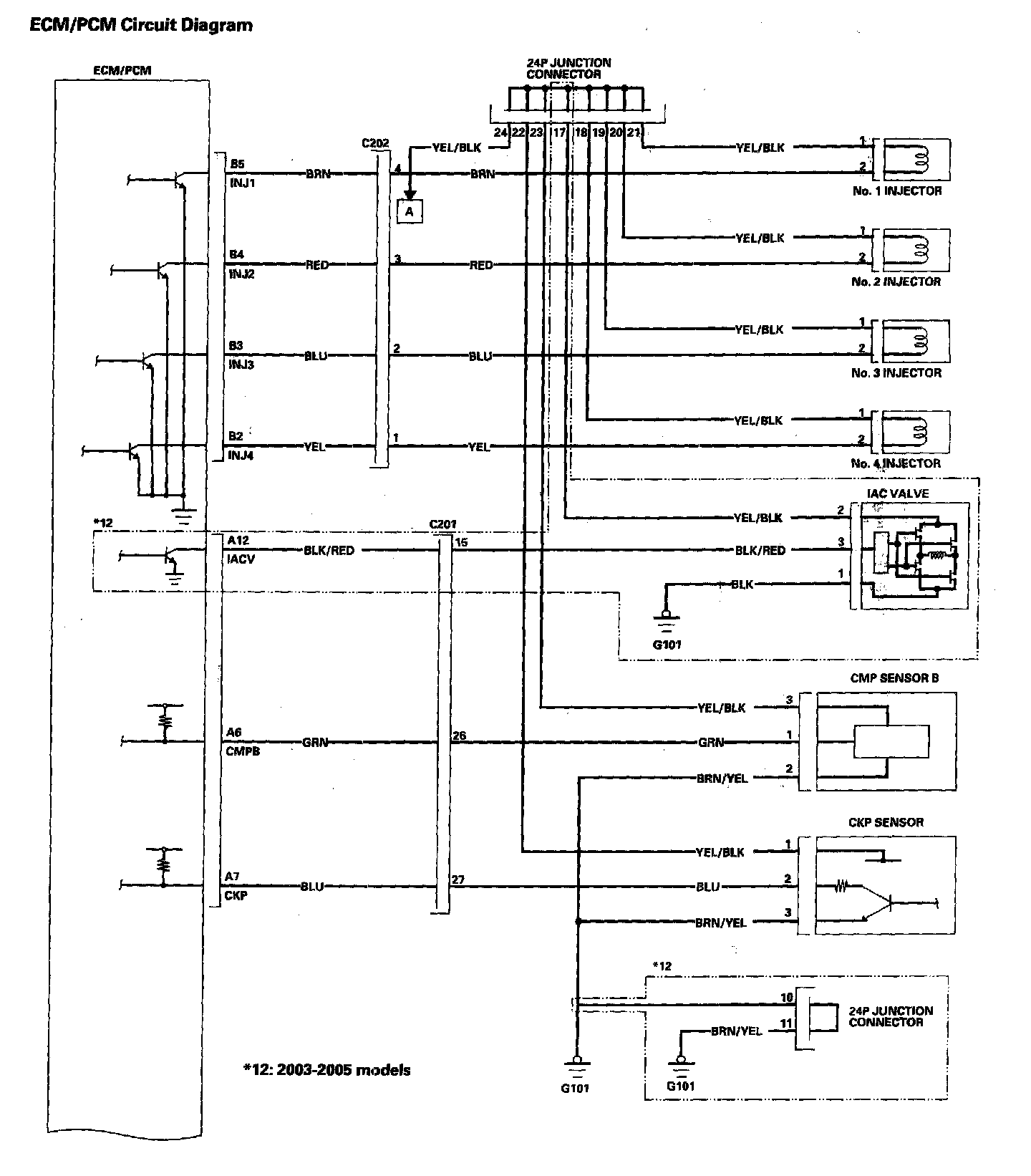

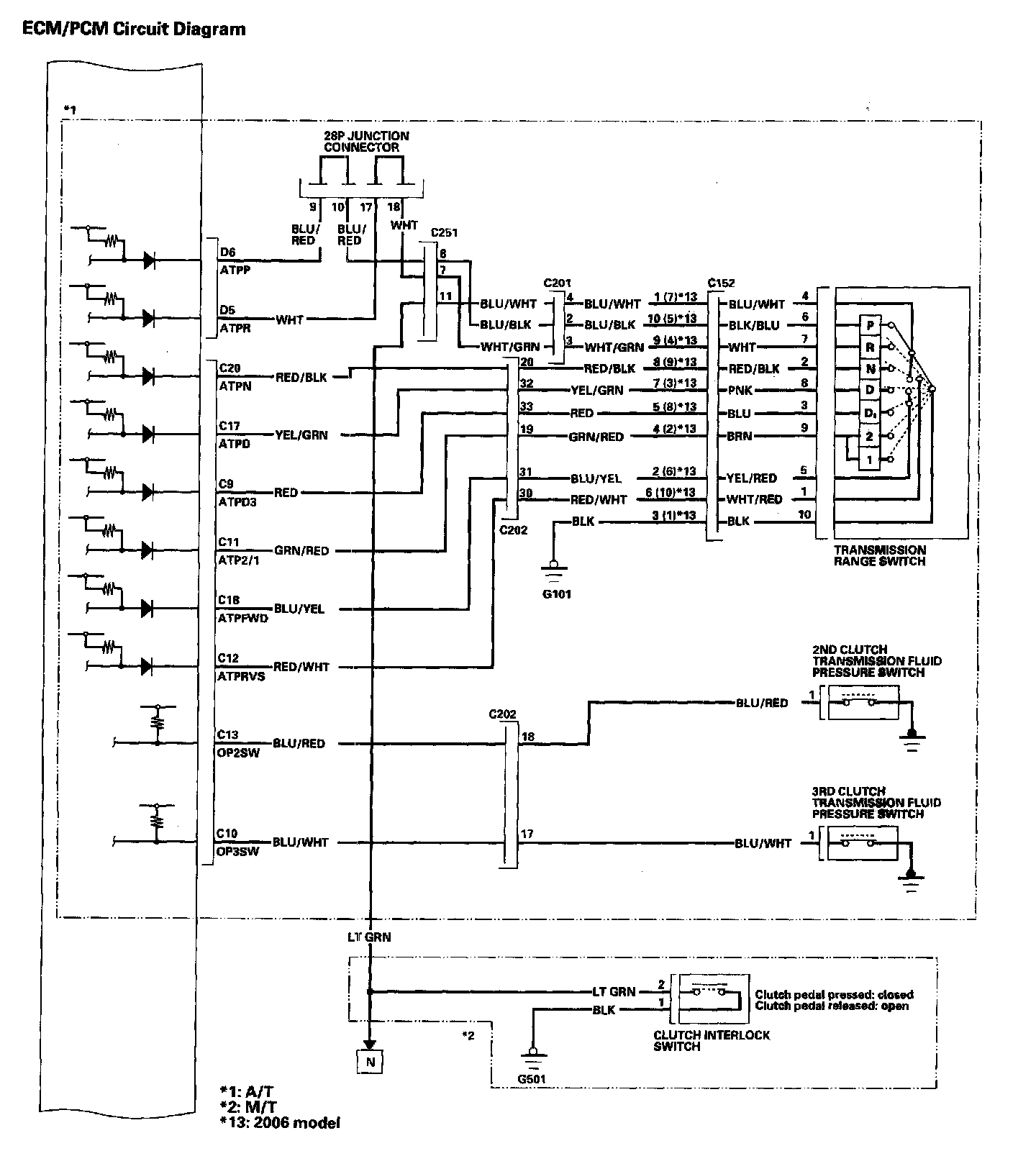

ECM/PCM Circuit Diagram 11-48:

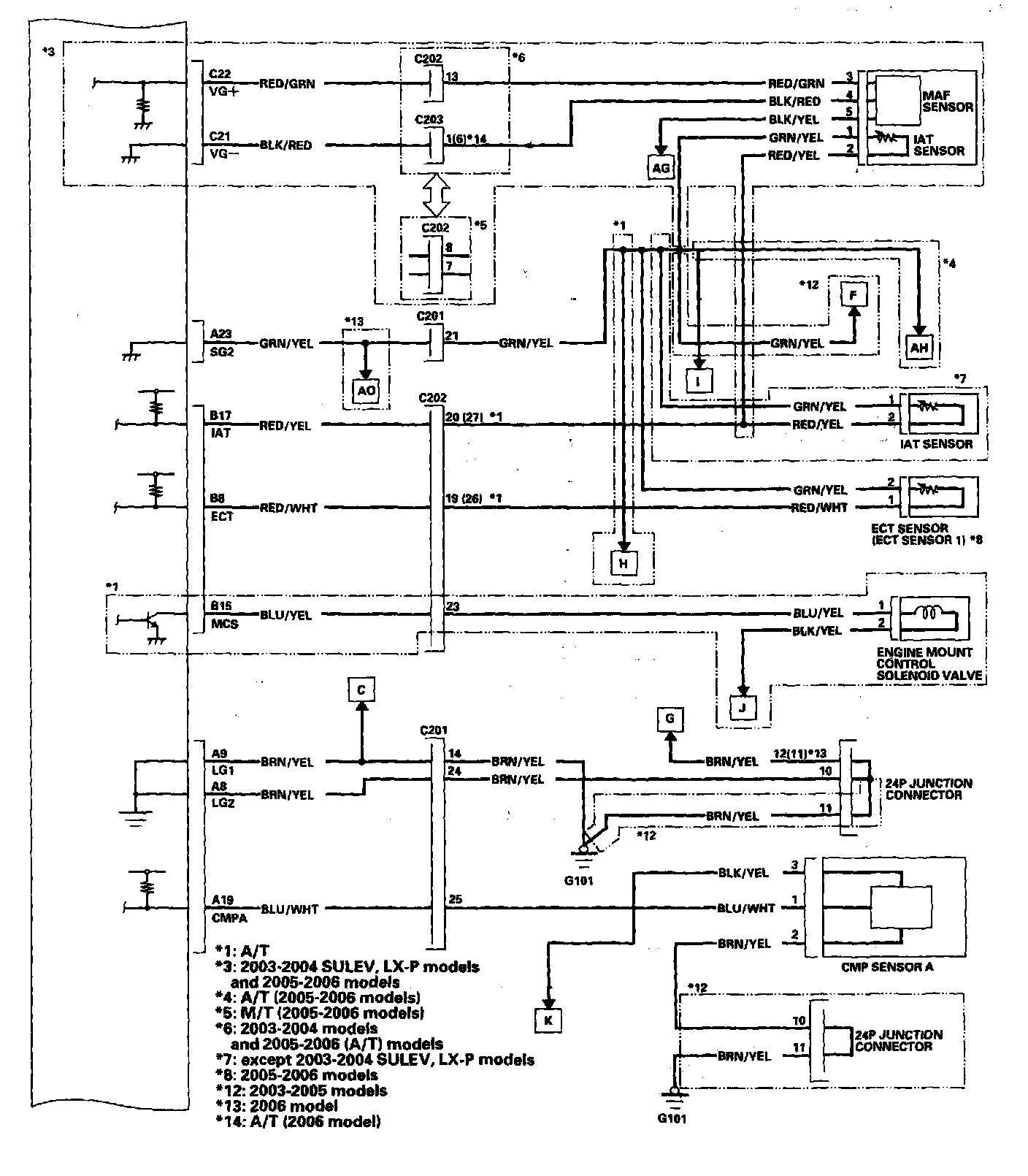

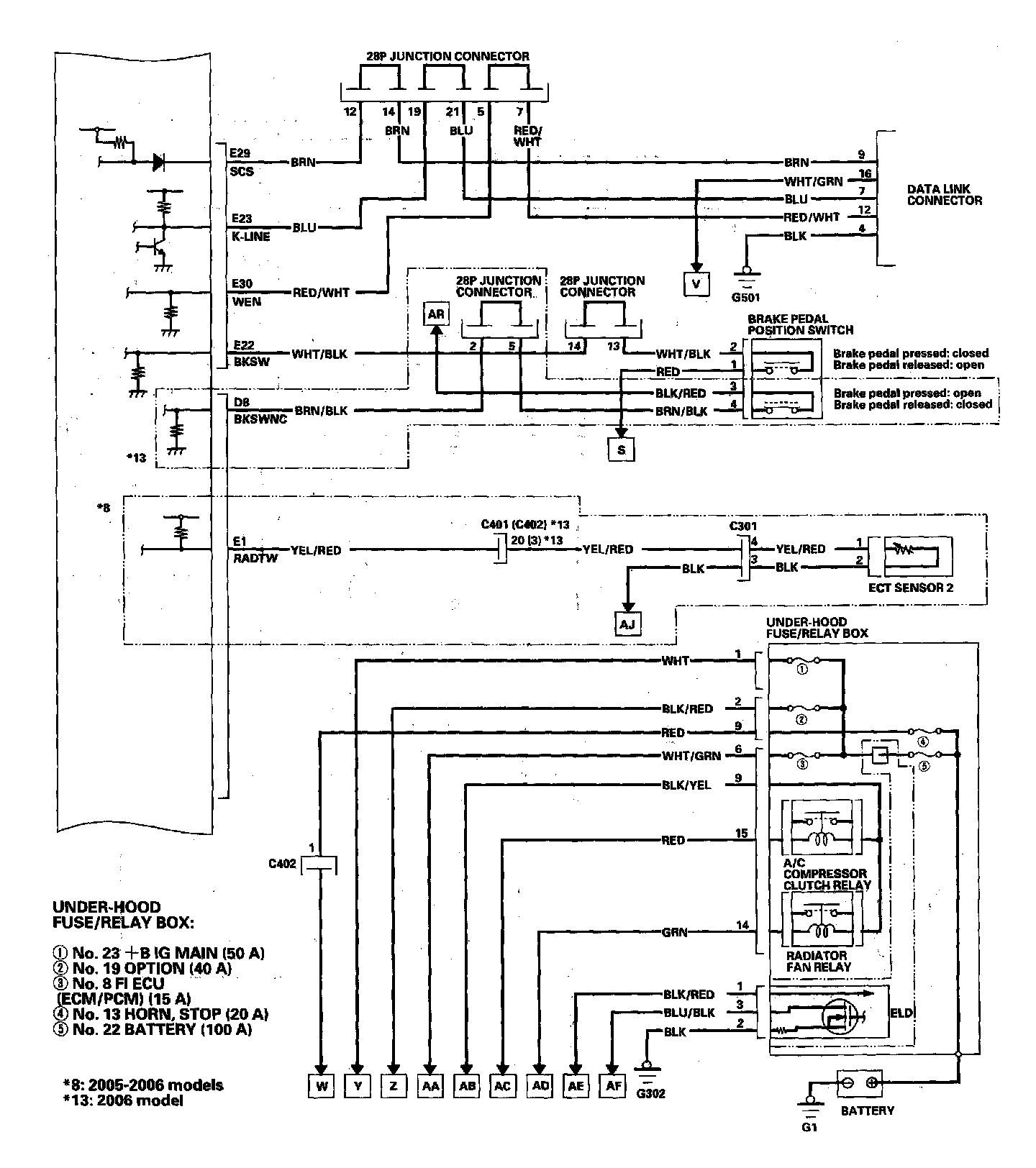

ECM/PCM Circuit Diagram 11-49:

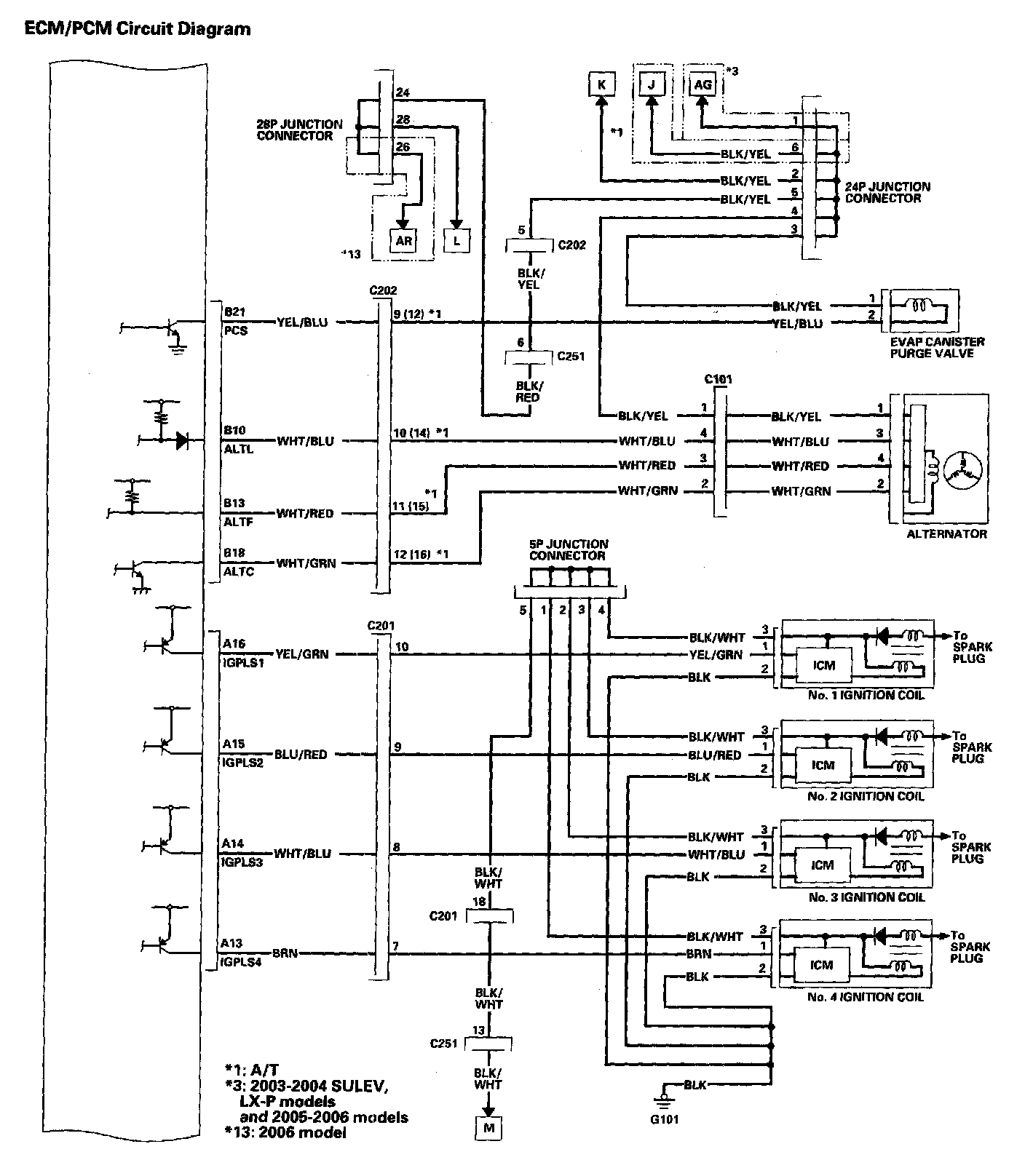

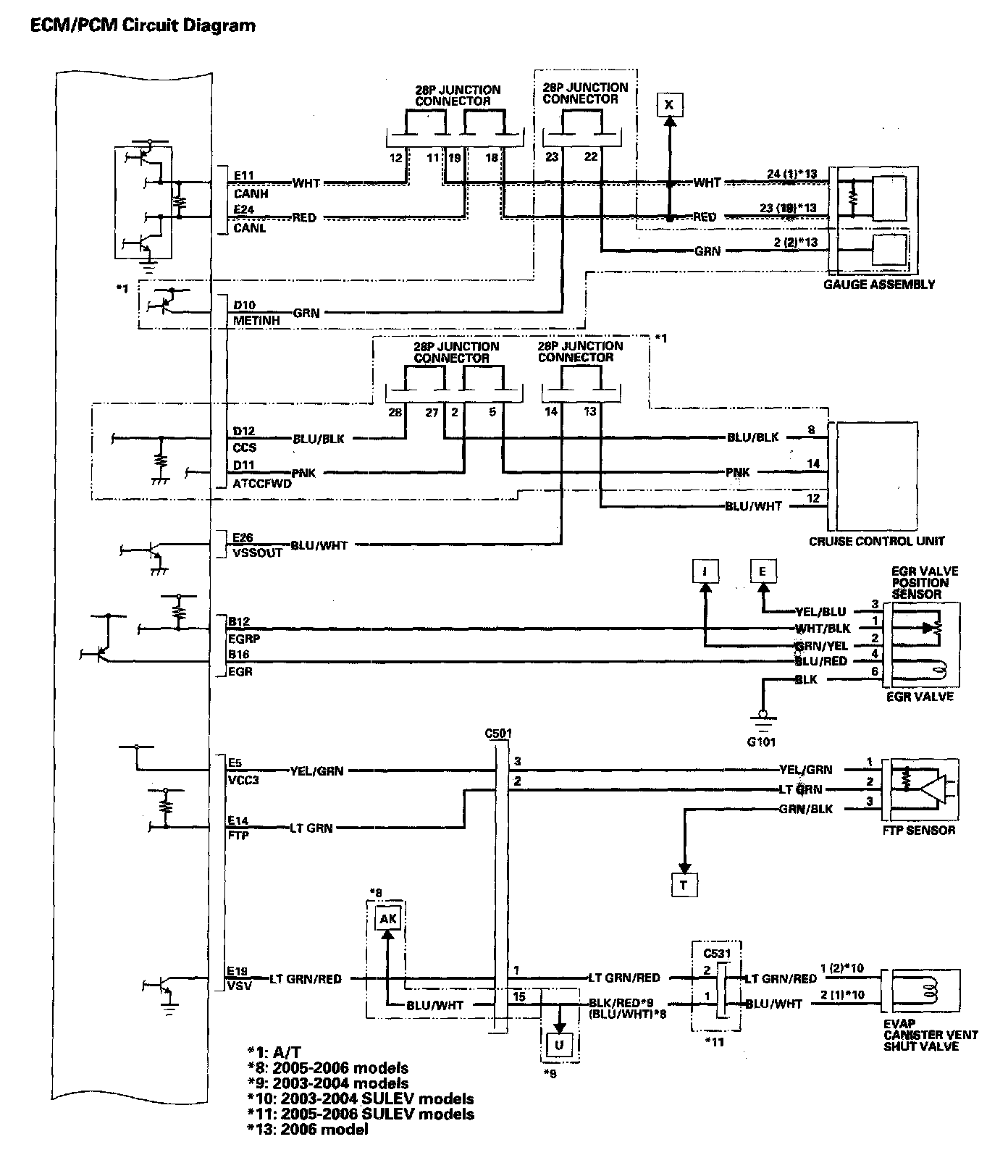

ECM/PCM Circuit Diagram 11-50:

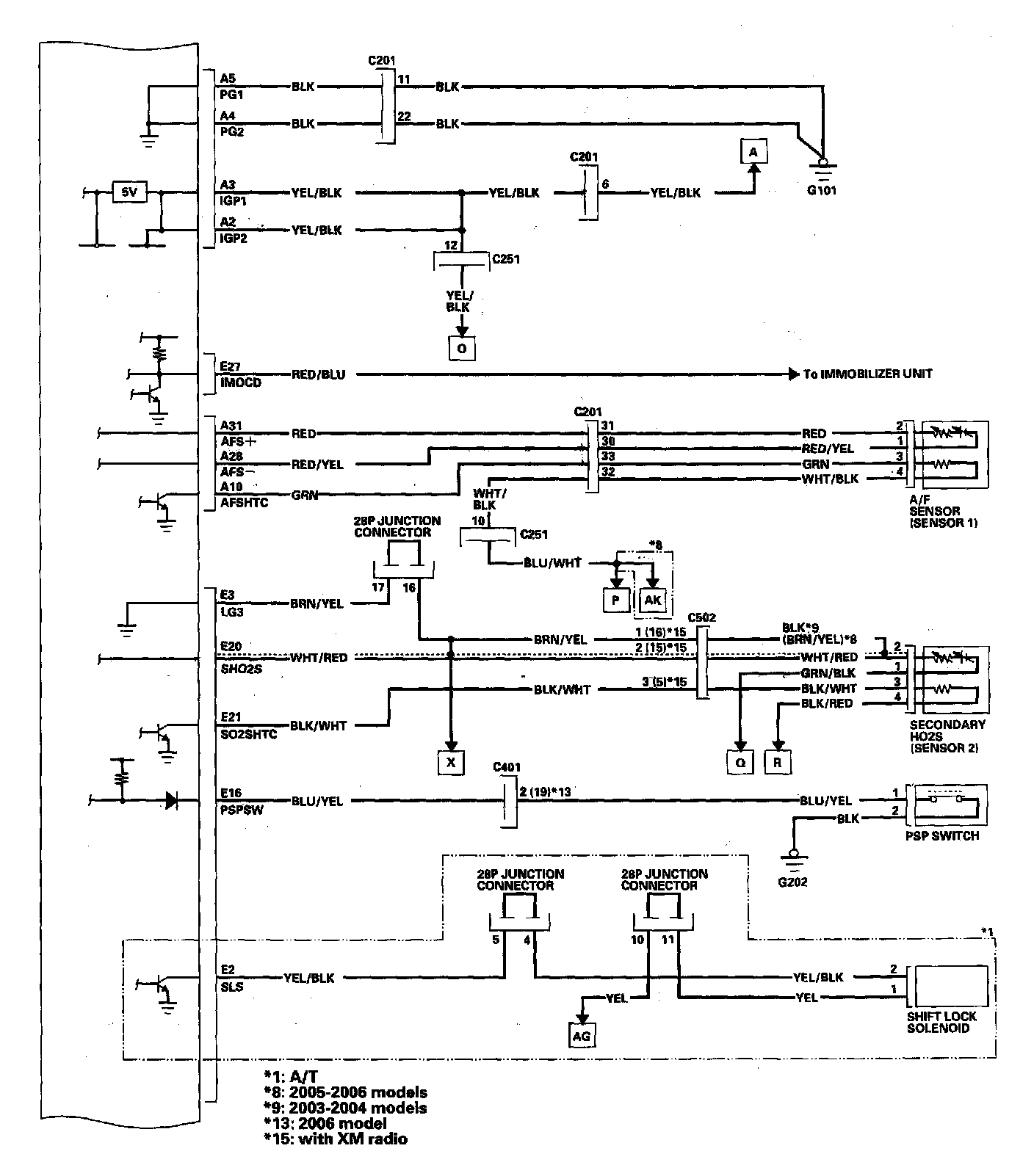

ECM/PCM Circuit Diagram 11-51:

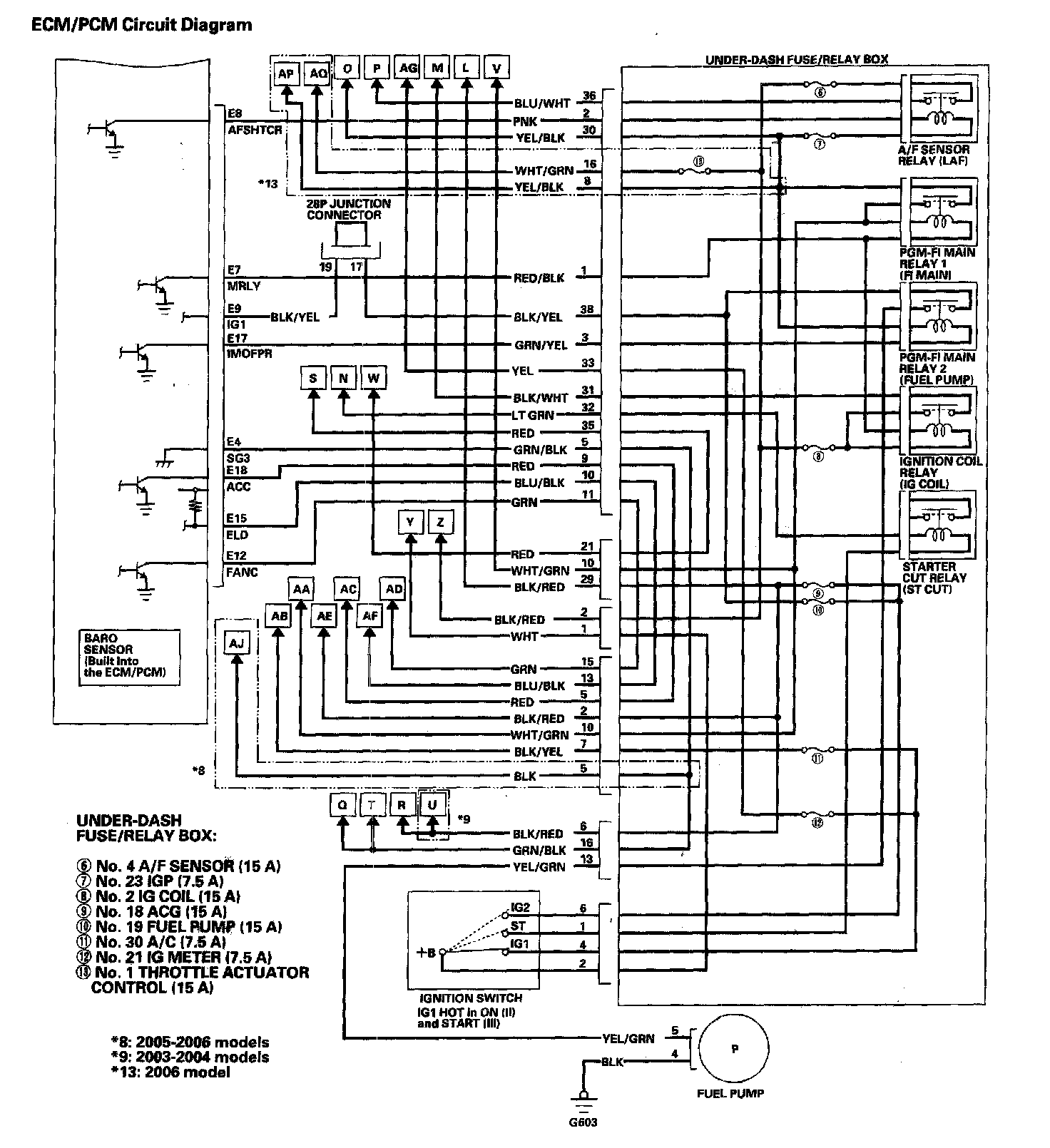

ECM/PCM Circuit Diagram 11-52:

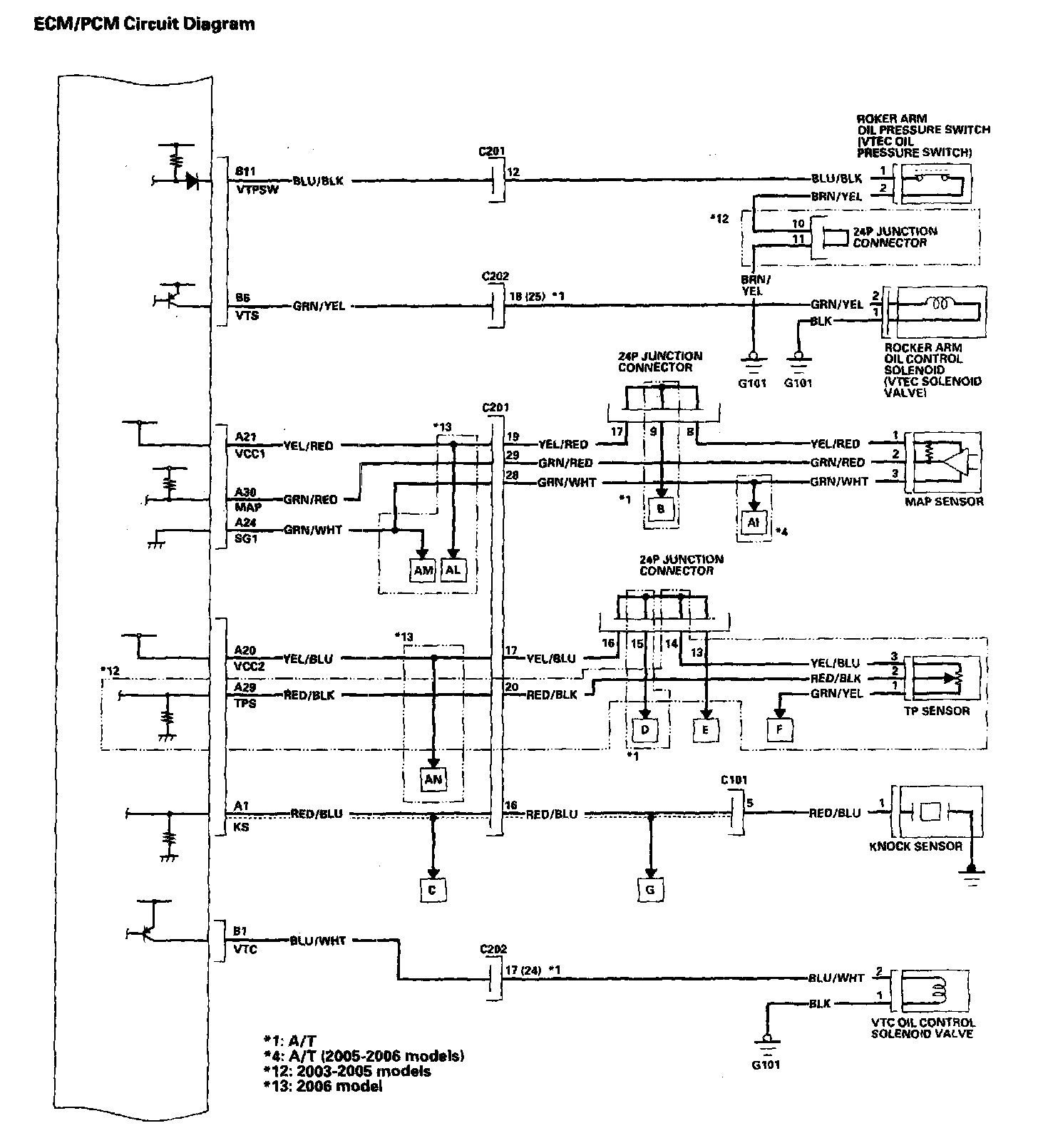

ECM/PCM Circuit Diagram 11-53:

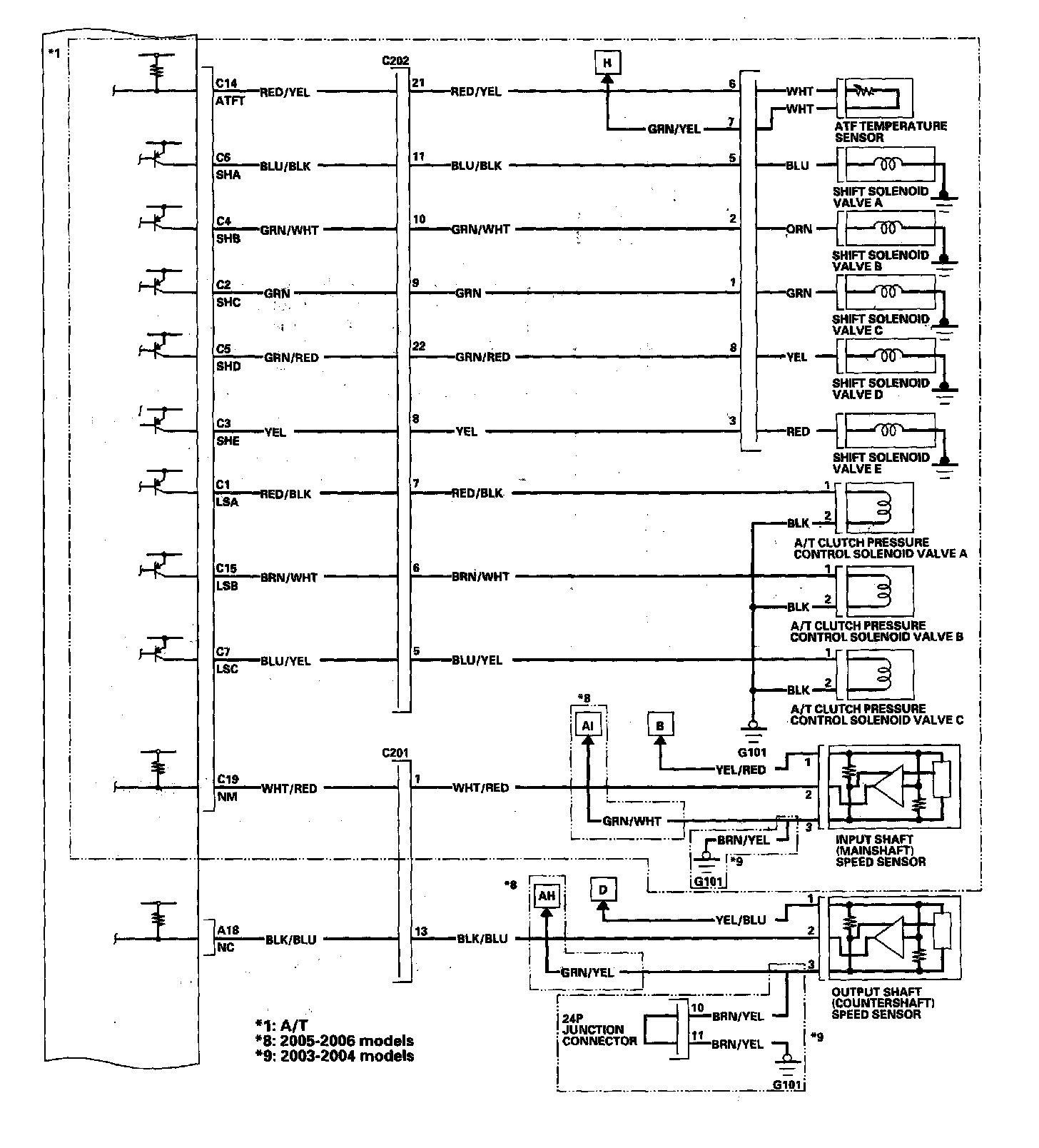

ECM/PCM Circuit Diagram 11-54:

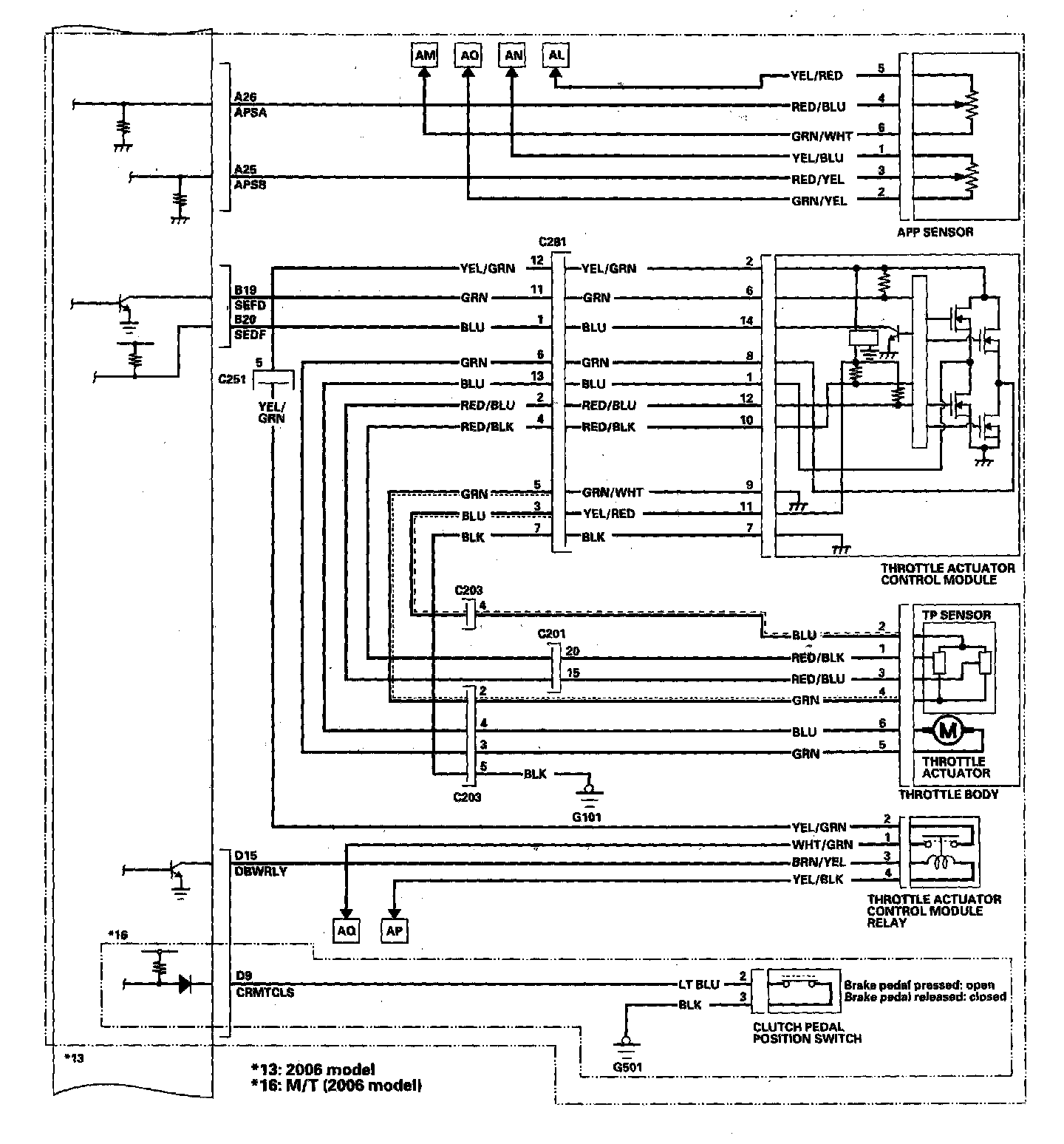

ECM/PCM Circuit Diagram 11-55:



ECM/PCM Circuit Diagram 11-56:



ECM/PCM Circuit Diagram 11-57:



ECM/PCM Circuit Diagram 11-58:
