Component Locations

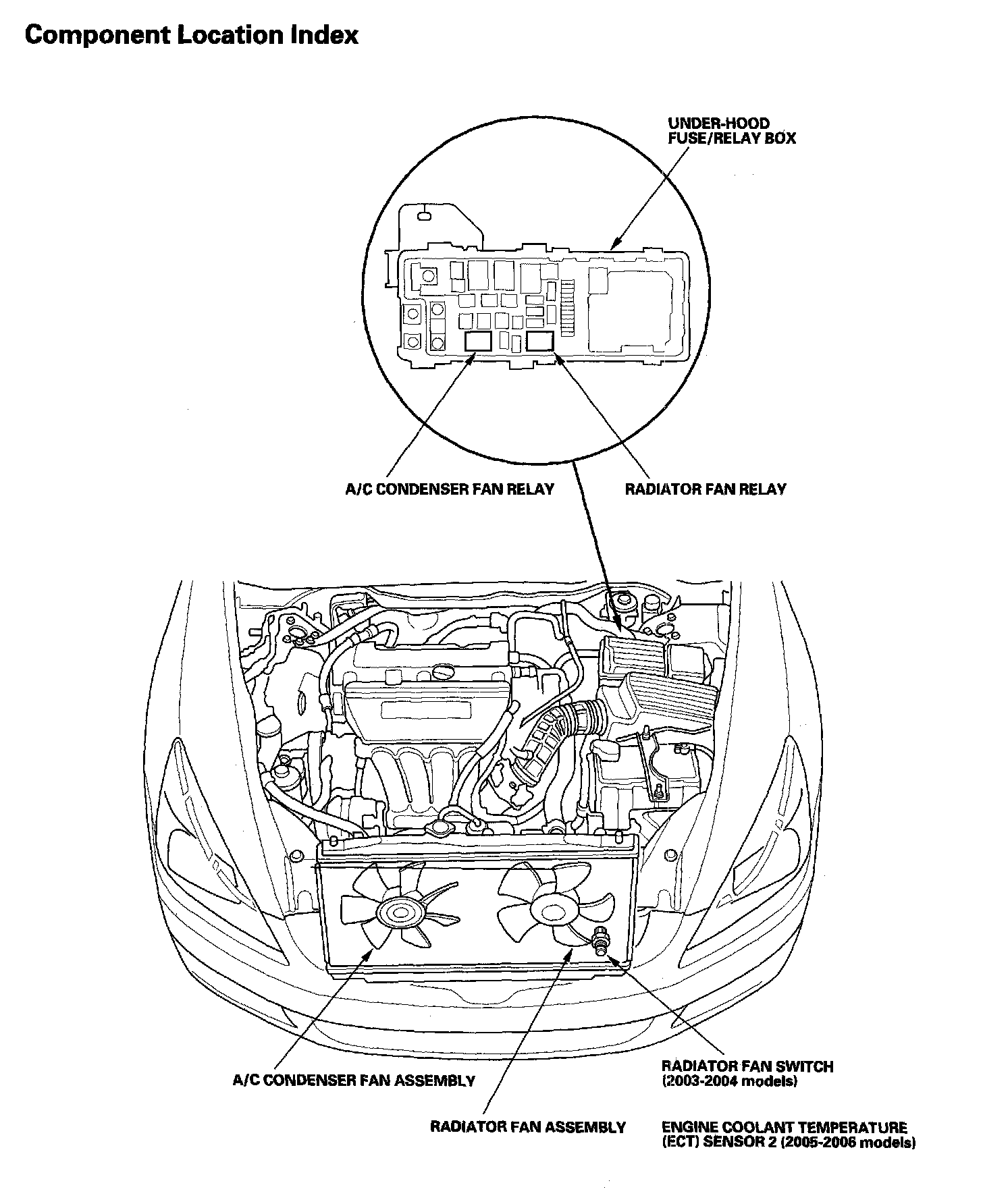

Fan Controls Component Location Index:

Antilock Brake System Component Location Index:

Starting System - Component Location Index:

Ignition System - Component Location Index:

Charging System - Component Location Index:

Relay And Control Unit Locations - Engine Compartment:

Relay And Control Unit Locations - Dashboard:

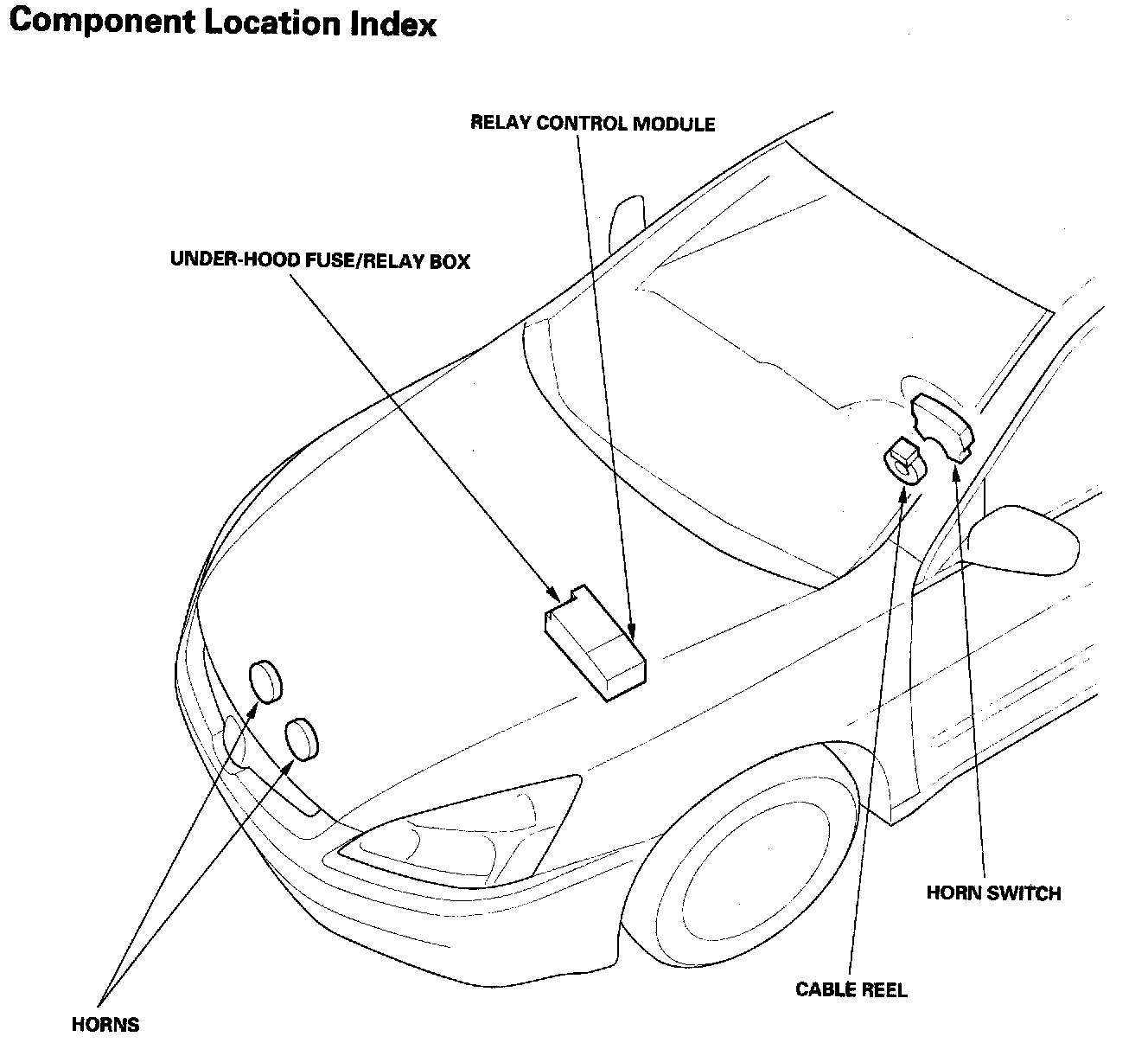

Horns - Component Location Index:

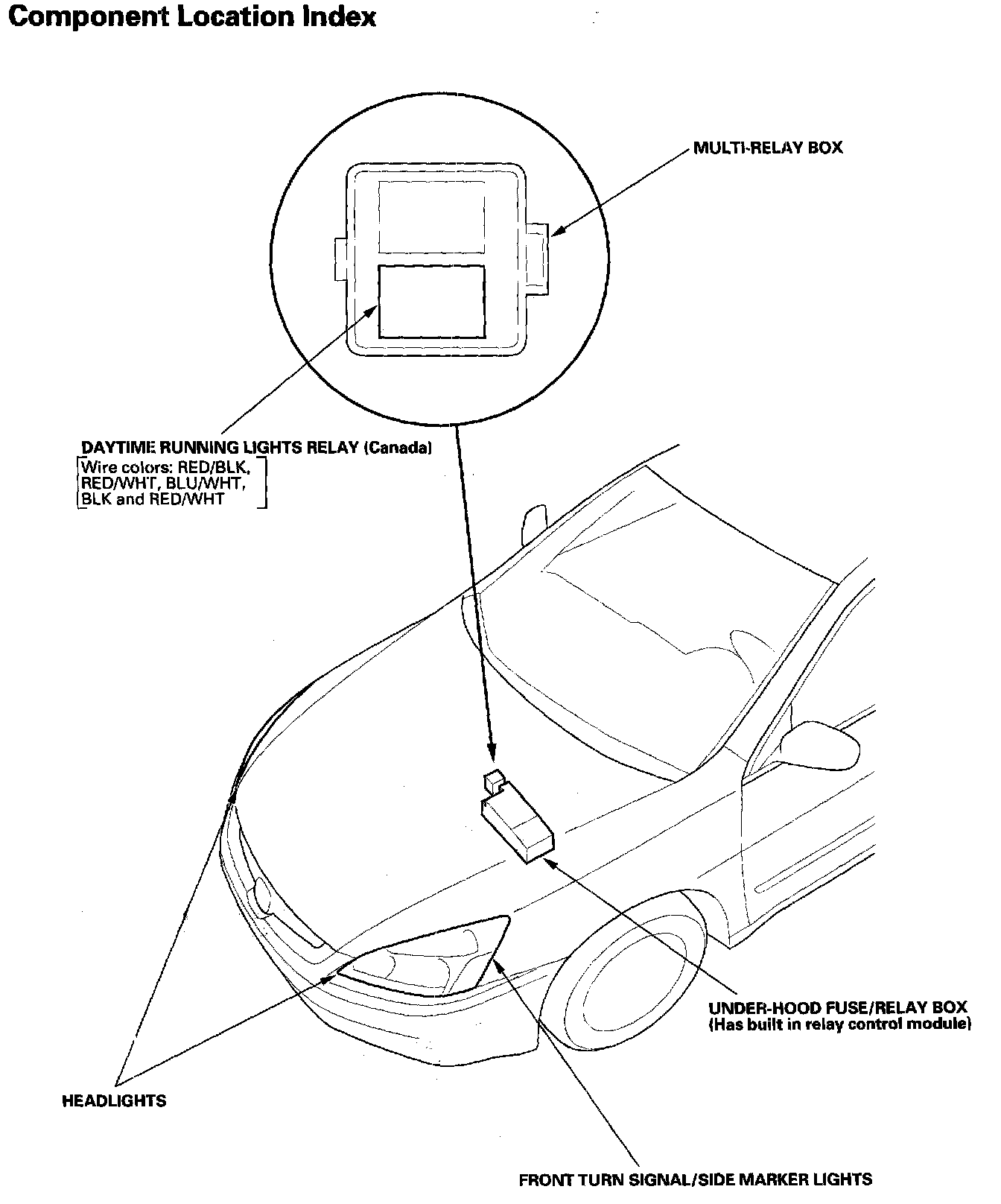

Exterior Lights - Components Location Index:

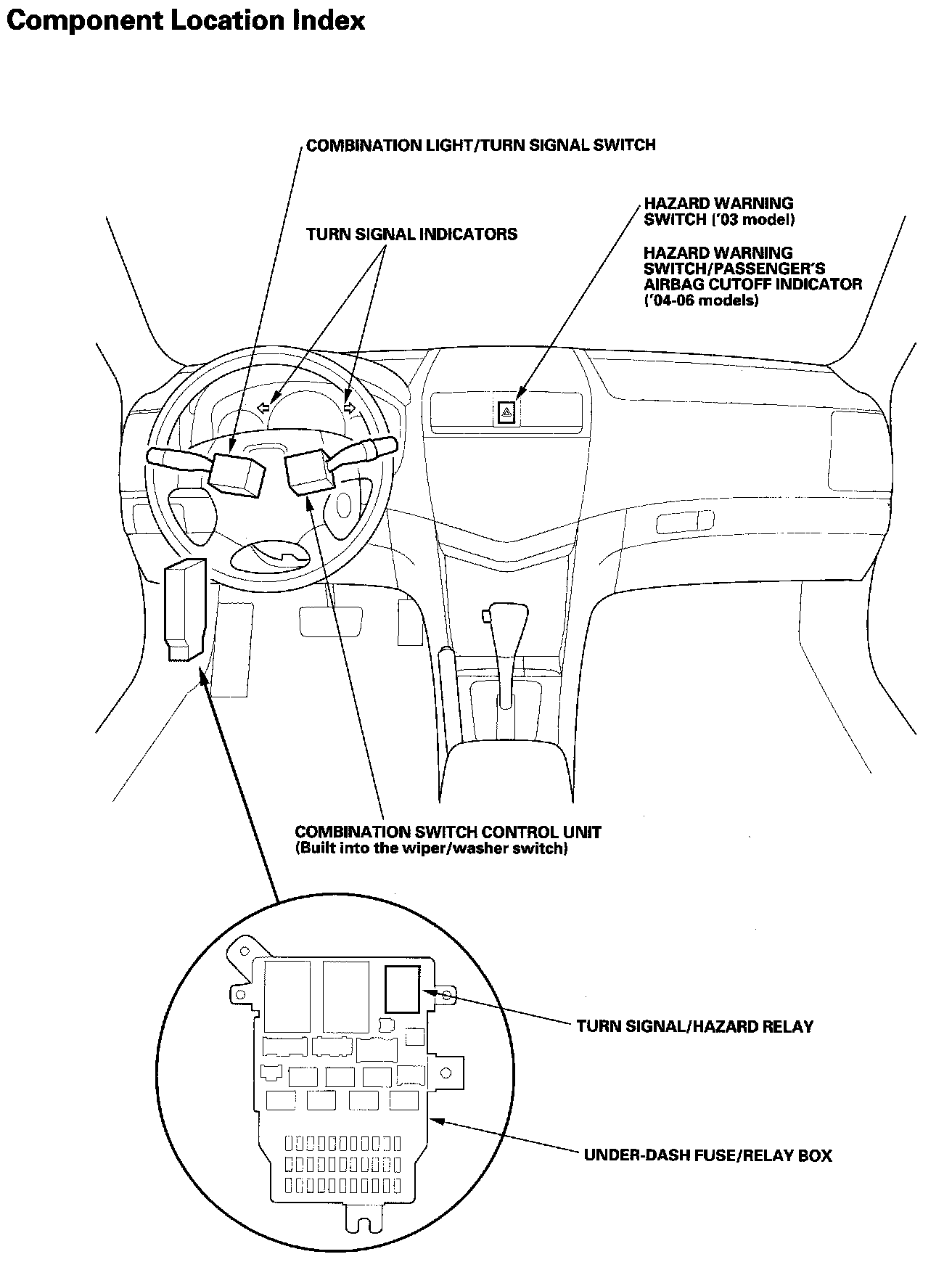

Turn Signal/Hazard Flasher - Component Location Index:

Power Windows - Components Location Index:

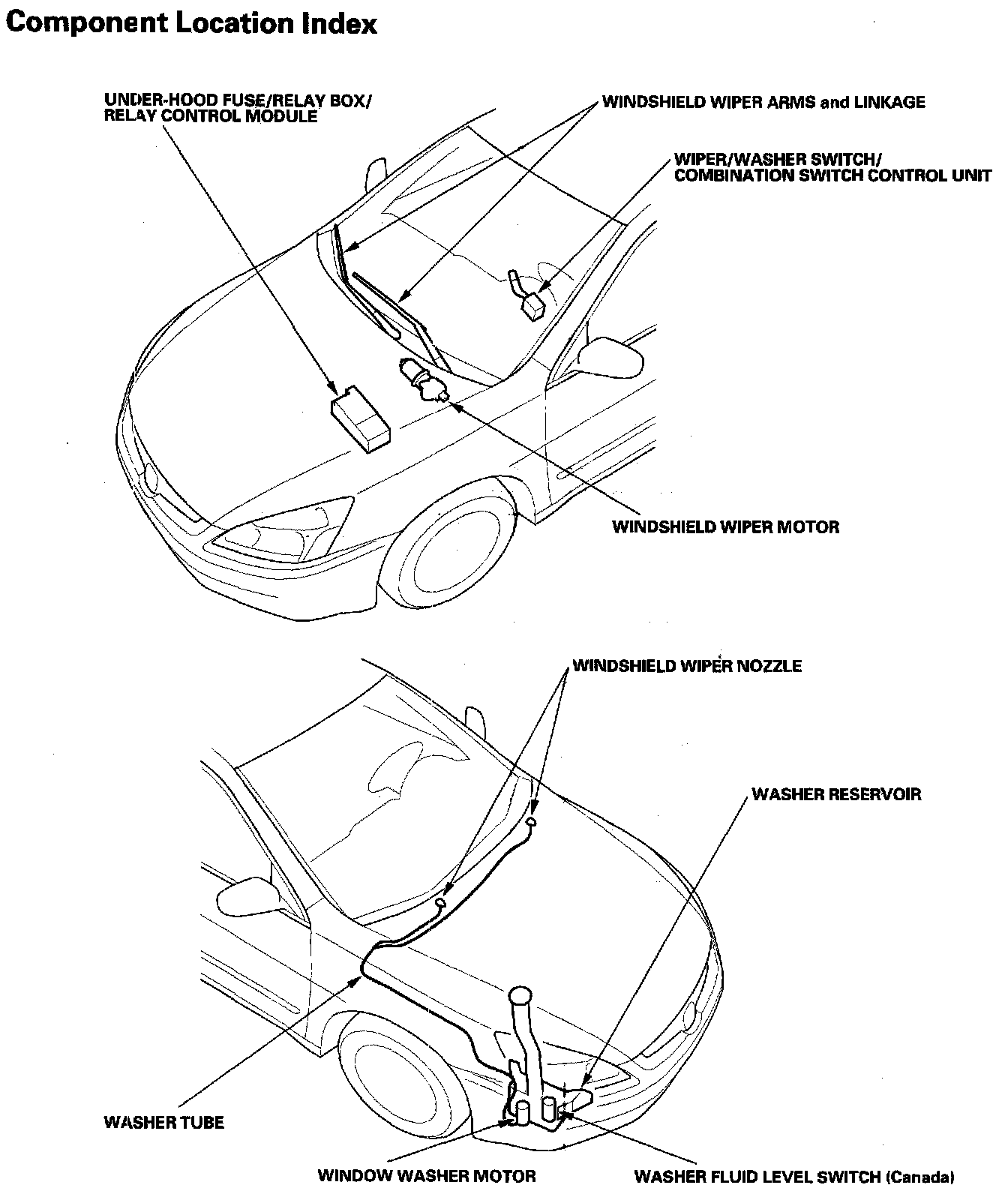

Wipers/Washers - Component Location Index:

Rear Window Defogger - Component Location Index:

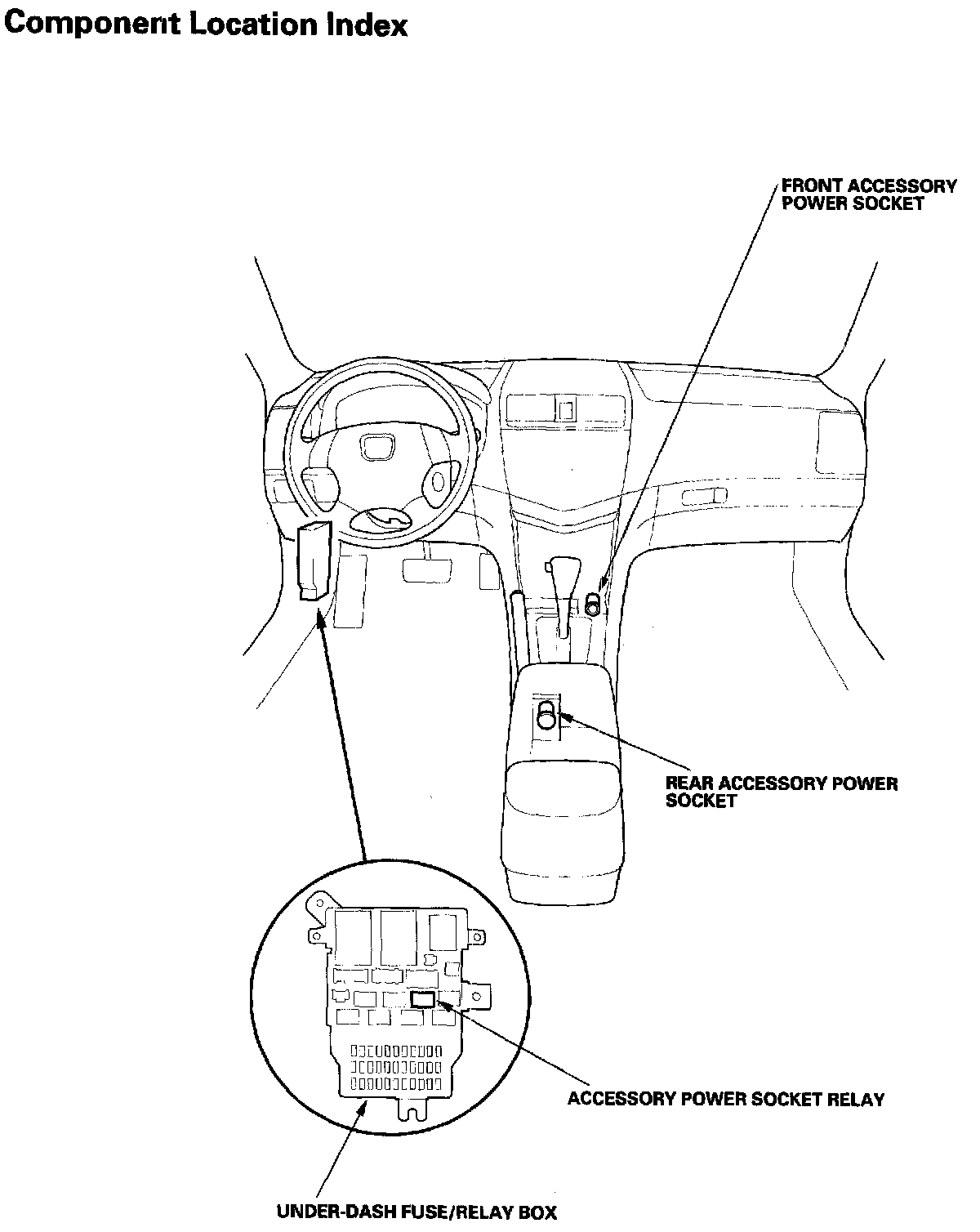

Accessory Power Sockets - Component Location Index:

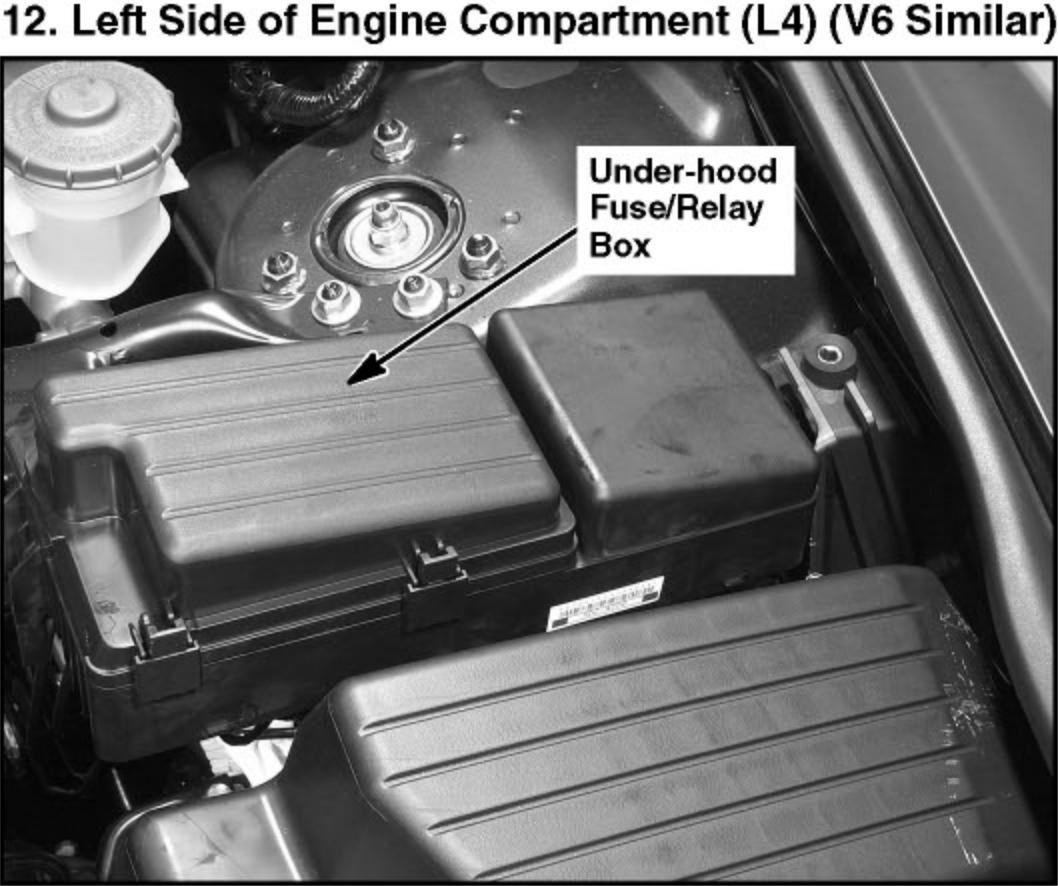

12. Left Side of Engine Compartment (L4) (V6 Similar):

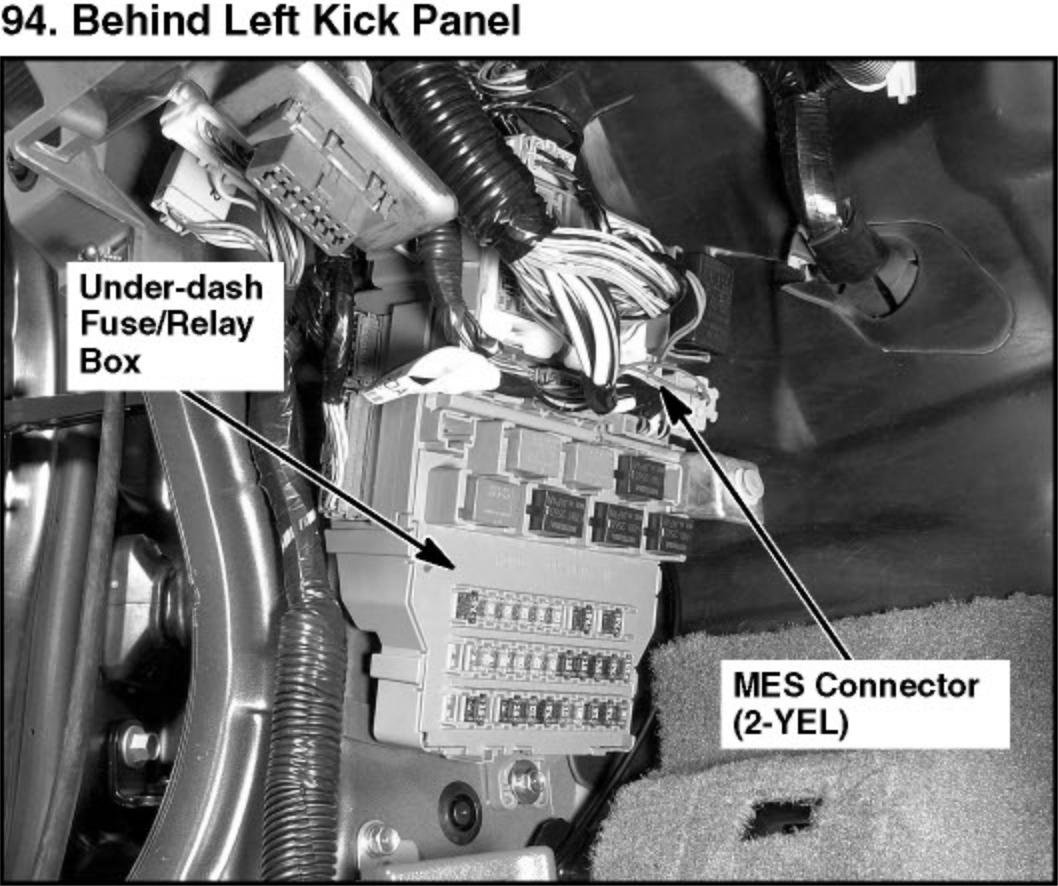

94. Behind Left Kick Panel:
