Air Flow Meter/Sensor: Service and Repair

MAF Sensor/IAT Sensor Replacement

2003-2004 SULEV, LX-P models and 2005-2006 models

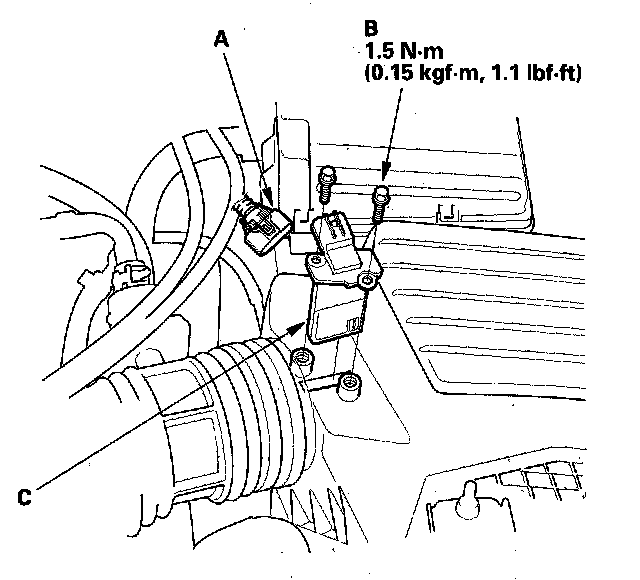

1. Disconnect the MAF sensor/IAT sensor connector (A).
2. Remove the bolts (B).
3. Remove the MAF sensor/IAT sensor (C).
4. Install the sensor in the reverse order of removal.
