Air Bag Control Module: Locations

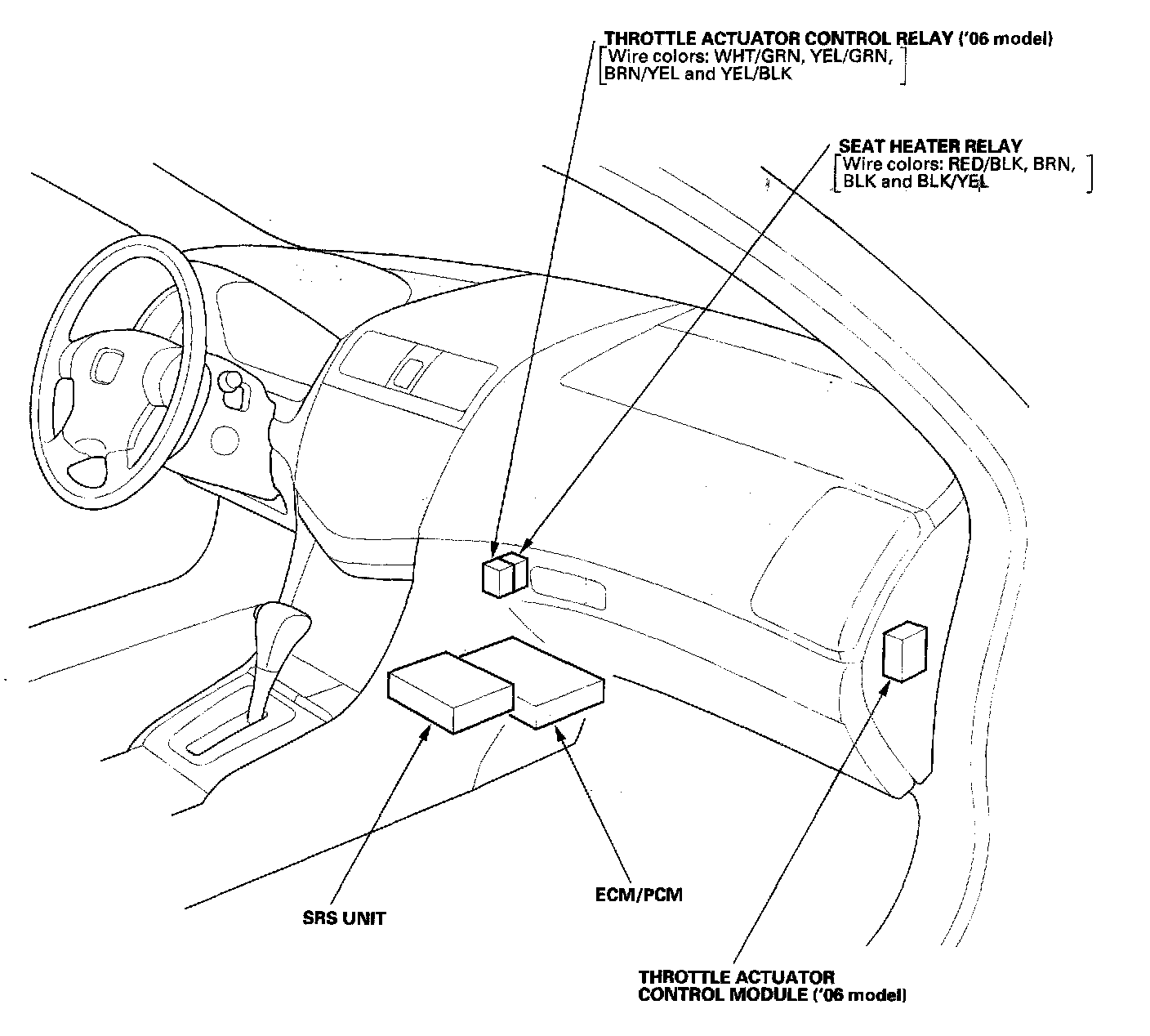

Relay And Control Unit Locations - Dashboard:



Relay And Control Unit Locations - Door And Seat:



SRS - Component Location Index:

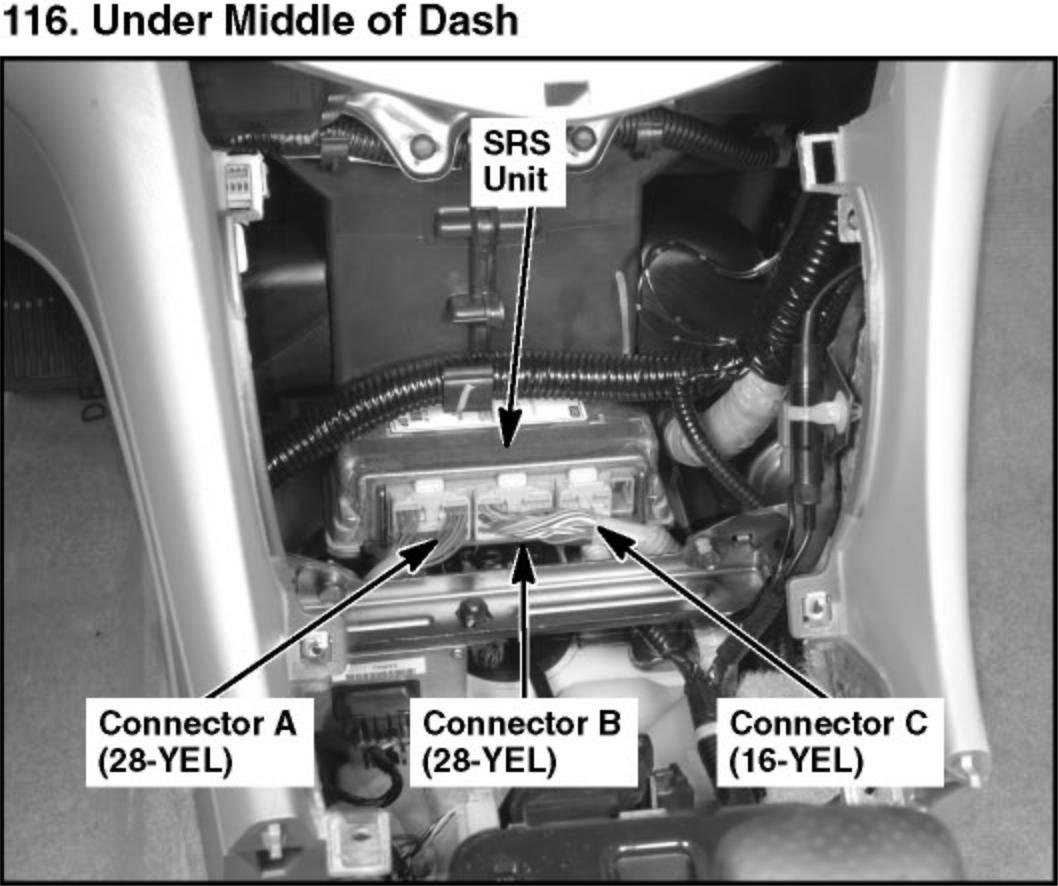

116. Under Middle of Dash:

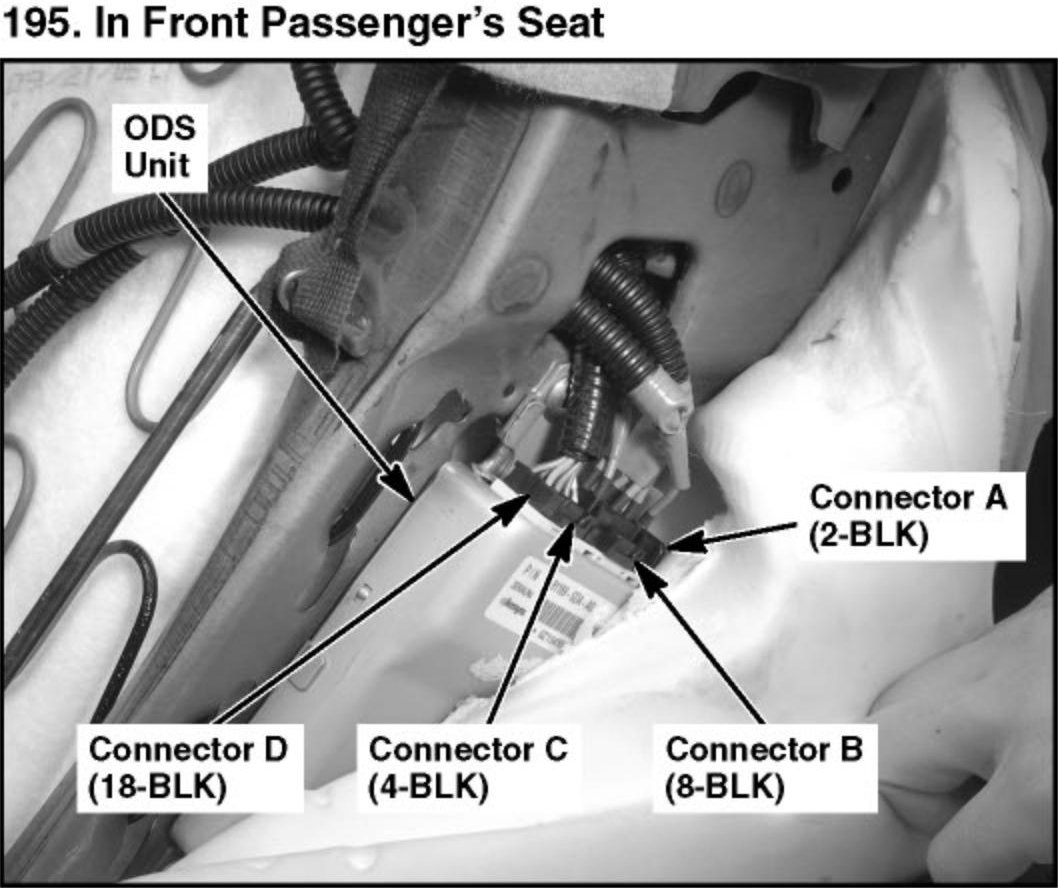

195. In Front Passenger's Seat:
