Front Subframe

Subframe Replacement

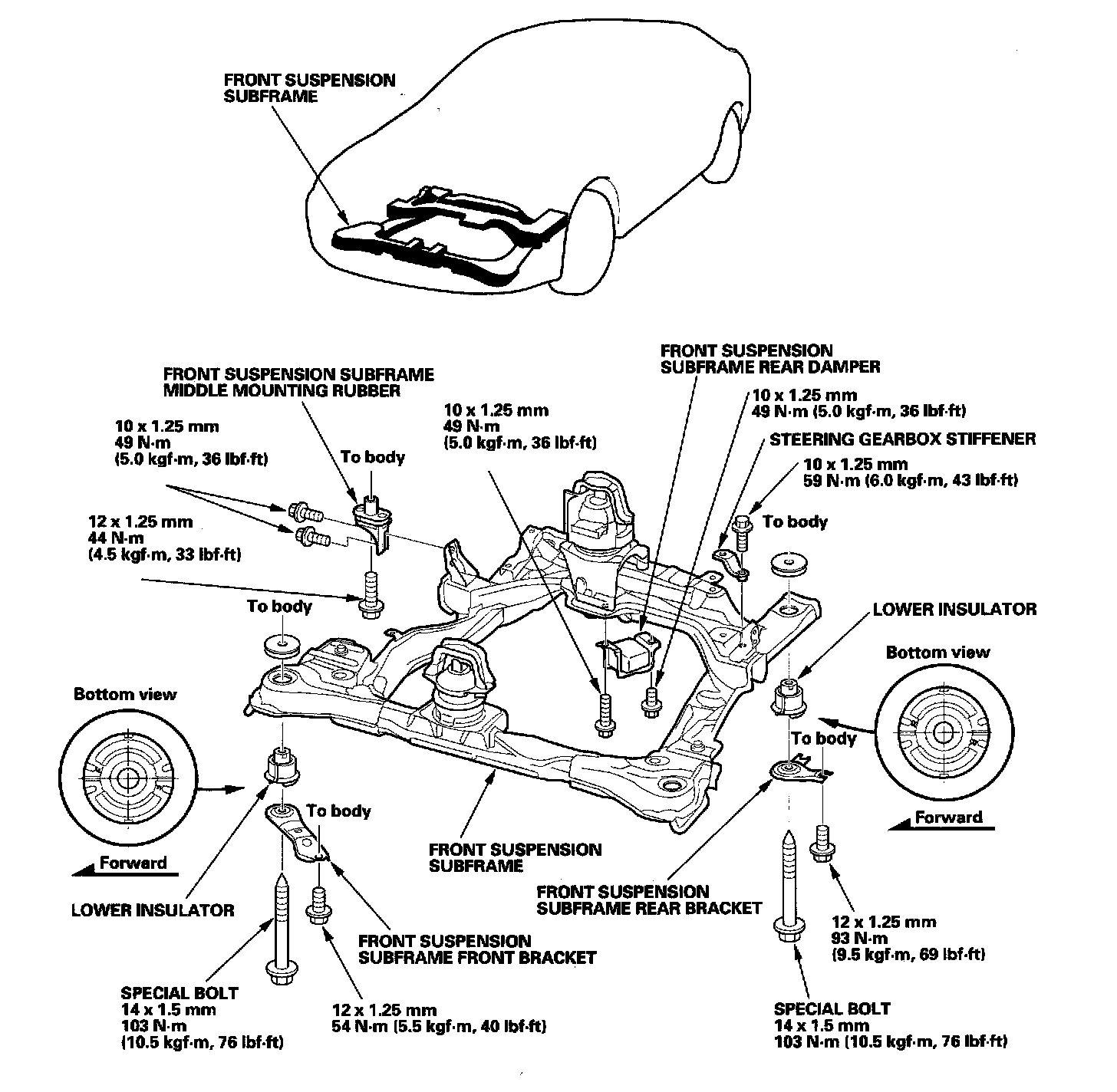

Front Subframe Torque

After removing the subframe mounting bolts, front suspension subframe middle mounting rubber mounting bolts, front suspension subframe rear bracket mounting bolts, front suspension subframe rear damper front mounting bolt, and steering gearbox stiffener mounting bolt, be sure to replace them with new ones.
